■ 본체만의 가격이며, Tool 및 기타 Accessory는 별도
■ T65 digital Package 구성 : T65 digital, S65KG-HH-G65G, T653
■ Motor Protection 기능 : 모터 과부하 방지
■ Quick-Connect Coupling 채용으로 Tool 교체에 용이

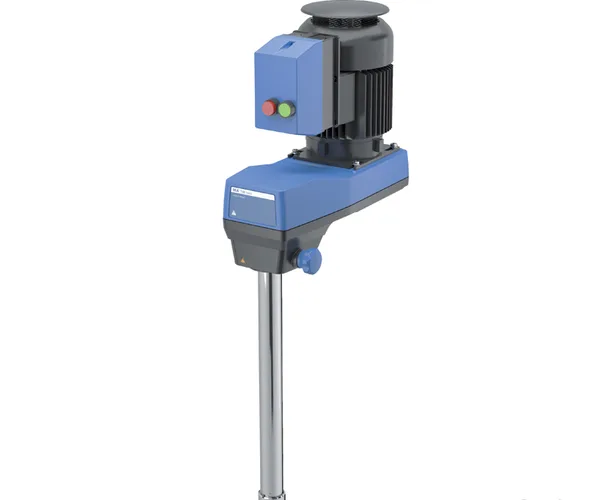

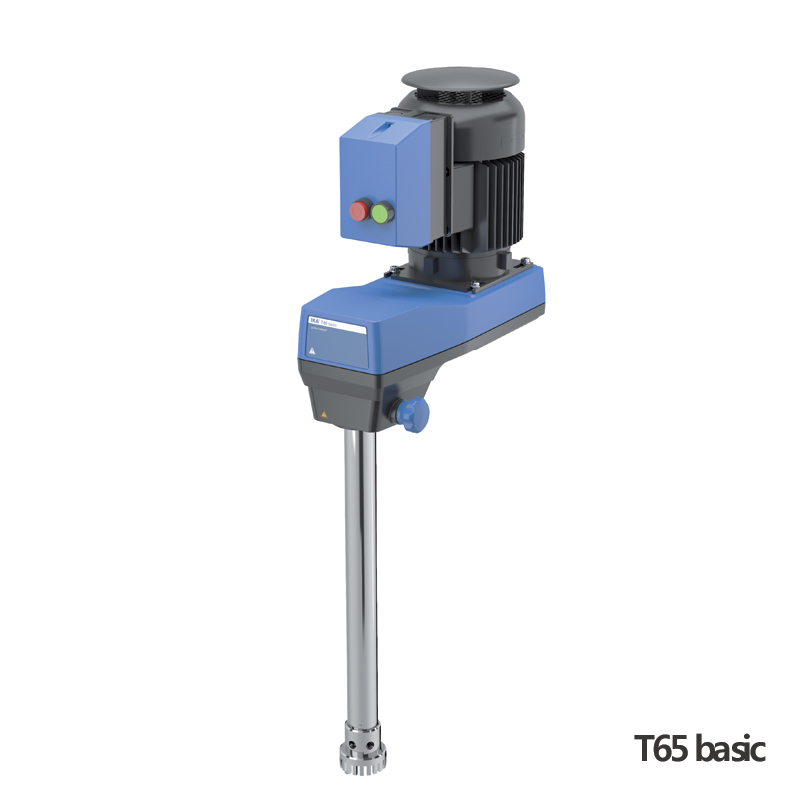

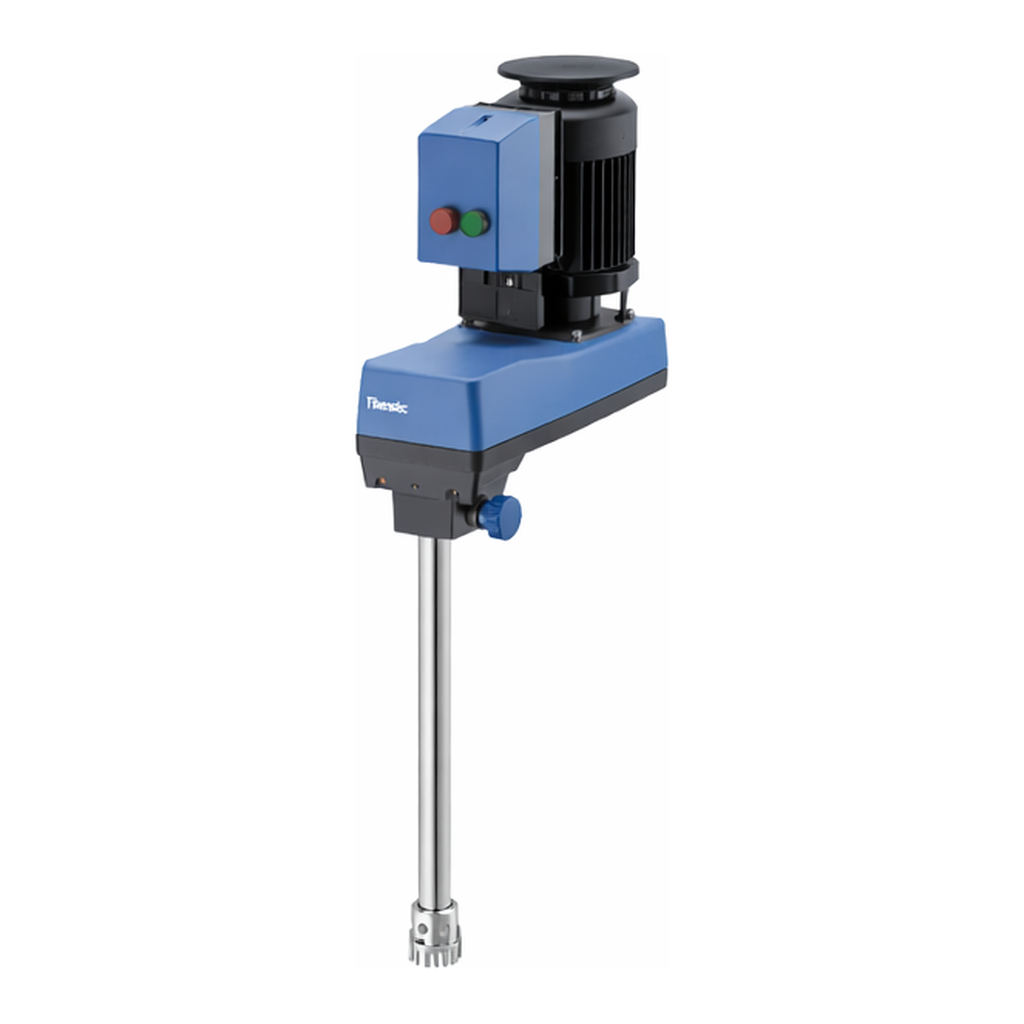

■ T65 basic 모델은 작동 / 정지 버튼으로만 구성(속도 고정)
■ T65 digital 모델은 Rotating Knob을 통한 속도 조절 가능
■ 케이블 및 플러그 별매
■ IKA
| | | | |
| --- | --- | --- | --- |소용량 튜브 균질기, Workstation
| Cat. No | Model | Type | 속도 |
| --- | --- | --- | --- |
| H01-05-225 | 4023500 | T65 basic | 7,200 rpm (fixed) |
| H01-05-230 | 4234500 | T65 digital | 1,000 ~ 9,500 rpm |
| H01-05-161 | 9023500 | T65 digital package | |
| H01-05-163 | 4324501 | T65 digital ULTRA-TURRAX® | |
| | | | |
| --- | --- | --- | --- |상세 규격 표
| Cat. No. | H01-05-225 | H01-05-230 | H01-05-163 |
| --- | --- | --- | --- |
| Model | 4023500 | 4234500 | 4324501 |
| --- | --- | --- | --- |
| Type | T65 basic | T65 Digital | T65 digital ULTRA-TURRAX® |
| --- | --- | --- | --- |
| Motor Rating in/out | 1,800W / 1,500W | 2,600W / 2,200W | |
| --- | --- | --- | --- |
| Volume Range | 2 ~ 50 L | | |
| Max. Viscosity | 5,000 mPas | | |
| Speed Range | 7,200 rpm(fixed) | 1,000 ~ 9,500 rpm | |
| Display | - | LED Display | |
| Size | W185×D400×H450 mm | W300×D400×H390 mm | |
| Power | 3 x 400V / 2200 W | 3 x 400V / 2600 W | |
Tool/Dispersing Element for T65
| Cat. No. |
H01-05-592 |
H01-05-596 |
H01-05-602 |
H01-05-179 |
H01-05-181 |
H01-05-183 |
| Model |
8005500 |
8005700 |
8005900 |
10001665 |
10001666 |
10001667 |
| --- |
--- |
--- |
--- |
--- |
--- |
--- |
| Type |
S65KG-HH-G65G |
S65KG-HH-G65M |
S65KG-HH-G65F |
S65C-G65G |
S65C-G65GM |
S65C-G65GF |
| Working Range |
2-50 L |
2-40 L |
2-30 L |
2-50 L |
2-40 L |
2-30 L |
| Stator Diameter |
65 mm |
|
|
|
|
|
| Roter Diameter |
58 mm |
|
|
53 mm |
|
|
| Immersion min/max |
90 / 450 mm |
80 / 450 mm |
|
90 / 450 mm |
|
|
| Shaft length |
520 mm |
510 mm |
500 mm |
520 mm |
|
|
| 재질 |
AISI 316L, FFPM/SIC bearing (MAX 180℃) |
|
|
AISI 316L, FFPM/Ceramic (MAX 180℃) |
|
|
| Ultimate Suspension |
25-75 um |
20-50 um |
5-20 um |
25-75 um |
20-50 um |
5-20 um |
| Ultimate Emulsion |
5-25 um |
5-15 um |
1-10 um |
5-25 um |
5-15 um |
1-10 um |
| Cat. No. |
H01-05-185 |
H01-05-187 |
H01-05-189 |
| Model |
10000641 |
10000642 |
10000643 |
| --- |
--- |
--- |
--- |
| Type |
S65KD-G65G |
S65KD-G65M |
S65KD-G65F |
| Working Range |
2-50 L |
2-40 L |
2-30 L |
| Stator Diameter |
65 mm |
|
|
| Roter Diameter |
53 mm |
58 mm |
|
| Immersion min/max |
90 / 450 mm |
80 / 450 mm |
|
| Shaft length |
520 mm |
|
|
| 재질 |
AISI 316L, FFPM/PTFE (MAX 180℃) |
|
|
| Ultimate Suspension |
25-75 um |
20-50 um |
5-20 um |
| Ultimate Emulsion |
5-25 um |
5-15 um |
1-10 um |
| Cat. No |
Model |
Working Range |
Rotor Diameter |
| H01-05-191 |
20008388 |
2 - 30 L |
60 mm |
| H01-05-193 |
20008389 |
2 - 50 L |
80 mm |
- ● 재질 : Stainless Steel (AISI 316L)
Optional Stand for T65
| Cat. No |
Model |
Type |
Height |
| H01-05-990 |
1608000 |
T653 |
500 ~ 1000 mm |
- ● Plate Size : w460×d530 mm
● Rod Size : Φ48 mm
