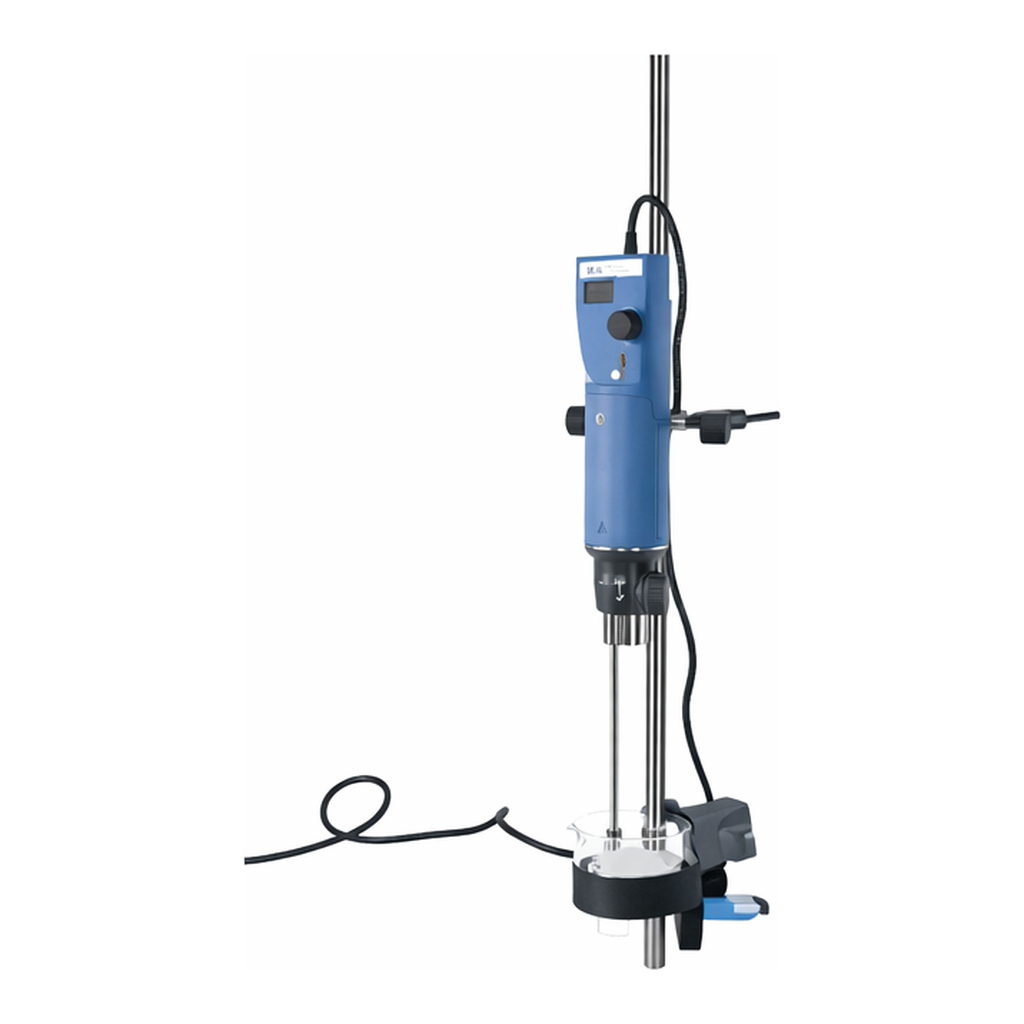

Lklab Korea IKA Homogenizer, ULTRA-TURRAX® / 중형 균질기
상품 옵션 정보 | |||||||
---|---|---|---|---|---|---|---|
카탈로그 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
H01-05-131 | Lklab Korea H01-05-131 T 18 brushless digital//T-series ULTRA-TURRAX Dispersers 1/EA | 재고문의 | EA | 3,500,000원 | - | 3,850,000원 |
다른 상품 둘러보기
■ 본체만의 가격이며, Tool 및 기타 Accessories는 별도
■ 본체만 구매 시 분해툴킷 미포함이며 별도 구매해야함
■ Dispersing Tool 구매 시 분해툴킷 포함(S25D-10G-KS 및 S25D-14G-KS에는 미포함)

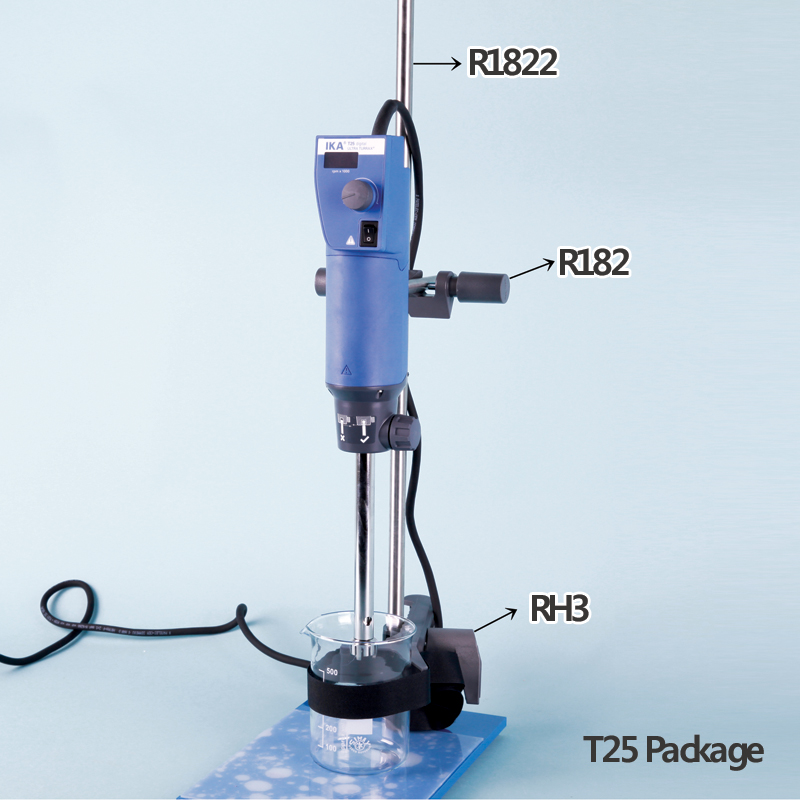

■ T25 Package : T25 digital, S25N-25G, R182, RH3, R1822
■ Motor Protection 기능 : 모터 과부하 방지
■ Quick-Connect Coupling 채용으로 Tool 교체에 용이
■ Rotating Knob을 통한 속도 조절
■ 다양한 범위의 Dispersing Tool 제공
■ 속도표시 : LED Digital Display
■ 230V, 50/60 Hz
■ IKA
| | | | |
| --- | --- | --- | --- |중형 균질기
| Cat. No | Model | Type | 사용 가능 용량 |
| --- | --- | --- | --- |
| H01-05-210 | 3720000 | T18 Digital | 1 ~ 1500 ml |
| H01-05-131 | 20107460 | T18 Brushless Digital |
| H01-05-215 | 3725000 | T25 Digital | 1 ~ 2000 ml |
| H01-05-145 | 3725000P | T25 Package |
| | | | |
| --- | --- | --- | --- |상세 규격 표
| Type | T18 Digital | T18 Brushless Digital | T25 Digital |
| --- | --- | --- | --- |
| Motor Rating in/out | 500W / 300W | 400W / 300W | 800W / 500W |
| --- | --- | --- | --- |
| Volume Range | 1 ~ 1500 ml (H2O) | | 1 ~ 2000 ml (H2O) |
| Max. Viscosity | 5000 mPas | | |
| Speed Range | 3000 ~ 25000 rpm | | |
| Speed Control | Stepless | | |
| Speed display | Digital | | |
| Protection Class | IP20 | IP30 | IP20 |
| Extension Arm | od13×L160 mm | | |
| Size | W87×D106×H271 mm | W89×D161×H270 mm | W87×D106×H271 mm |
Optional Clamp for T25
Cat. No | Model | Type | Stand Rod | Extension Arm |
---|---|---|---|---|
H01-05-925 | 3008600 | RH3 | Strap | 봉 Φ8 ~ 16 mm, Φ40 ~ 300 mm용 |
H01-05-930 | 3159000 | RH5 | Clamp | 봉 Φ25 ~ 36 mm, Φ40 ~ 300mm용 |
H01-05-940 | 2657700 | R182 | Φ6 ~ 16 mm | Φ6 ~ 16 mm |
Optional Stand for T25
Cat. No | Model | Type | Rod Size | Plate Size | Height |
---|---|---|---|---|---|
H01-05-968 | 1163100S | R1822 | Φ16 mm | W200×D315 mm | 800 mm |
H01-05-970 | 3160100 | R1826 | Ø16 mm | W200×D316 mm | 800 mm |
Tool/Dispersing Element for T18
Cat. No. | H01-05-532 | H01-05-538 | H01-05-841 | H01-05-853 |
---|---|---|---|---|
Model | L004639 | L004640 | 3452400 | 3452300 |
--- | --- | --- | --- | --- |
Type | S18N-10G | S18N-19G | S18D-10G-KS | S18D-14G-KS |
--- | --- | --- | --- | --- |
Working Range | 1 ~ 100 ml | 10 ~ 1500 ml | 10 ~ 100 ml | 10 ~ 500 ml |
--- | --- | --- | --- | --- |
Stator Diameter | 10 mm | 19 mm | 10 mm | 14 mm |
--- | --- | --- | --- | --- |
Rotor Diameter | 7.5 mm | 12.7 mm | 6.75 mm | 9.5 mm |
--- | --- | --- | --- | --- |
Immersion min/max | 25 / 70 mm | 35 / 170 mm | 15 / 85 mm | |
--- | --- | --- | --- | --- |
Shaft length | 108 mm | 204 mm | 150 mm | |
--- | --- | --- | --- | --- |
Ultimate Suspension | 10 - 50 um | N/A | ||
--- | --- | --- | --- | --- |
Ultimate Emulsion | 1 - 10 um | N/A | ||
--- | --- | --- | --- | --- |
Max. temperature | 180℃ | 100℃, Autoclavable | ||
--- | --- | --- | --- | --- |
재질 | PTFE, AISI 316L | Polycarbonate (PC) & Polyetheretherketon (PEEK) |
Tool/Dispersing Element for T25 digital
Cat. No. | H01-05-544 | H01-05-550 | H01-05-556 | H01-05-562 | H01-05-568 |
---|---|---|---|---|---|
Model | 1024200 | 0594000 | 0593400 | 1713300 | 1713800 |
--- | --- | --- | --- | --- | --- |
Type | S25N-8G | S25N-10G | S25N-18G | S25N-25G | S25N-25F |
--- | --- | --- | --- | --- | --- |
Working Range | 1 ~ 50 ml | 1 ~ 100 ml | 10 ~ 1500 ml | 50 ~ 2000 ml | 100 ~ 2000 ml |
--- | --- | --- | --- | --- | --- |
Stator Diameter | 8 mm | 10 mm | 18 mm | 25 mm | 25 mm |
--- | --- | --- | --- | --- | --- |
Rotor Diameter | 6.1 mm | 7.5 mm | 12.7 mm | 17 mm | 18 mm |
--- | --- | --- | --- | --- | --- |
Immersion min/max | 27 / 85 mm | 22 / 85 mm | 40 / 165 mm | 40 / 165 mm | 40 / 165 mm |
--- | --- | --- | --- | --- | --- |
Shaft Length | 108 mm | 105 mm | 194 mm | 194 mm | 194 mm |
--- | --- | --- | --- | --- | --- |
Ultimate Suspension | 10 - 50 um | 15 - 50 um | 5 - 25 um | ||
--- | --- | --- | --- | --- | --- |
Ultimate Emulsion | 1 - 10 um | 1 - 5 um | |||
--- | --- | --- | --- | --- | --- |
Max. Temperature | 180 ℃ | ||||
--- | --- | --- | --- | --- | --- |
재질 | PTFE, AISI 316L |
Cat. No. | H01-05-855 | H01-05-858 | H01-05-861 | H01-05-863 | H01-05-865 | H01-05-877 |
---|---|---|---|---|---|---|
Model | 2348000 | 2466900 | 2404000 | 2494700 | 3452200 | 3452100 |
--- | --- | --- | --- | --- | --- | --- |
Type | S25KV-18G | S25KV-25G | S25KV-25F | S25NK-19G | S25D-10G-KS | S25D-14G-KS |
--- | --- | --- | --- | --- | --- | --- |
Working Range | 10 ~ 1500ml | 50 ~ 2000ml | 100 ~ 2000ml | 25 ~ 1500ml | 10 ~ 100ml | 10 ~ 500ml |
--- | --- | --- | --- | --- | --- | --- |
Sator Diameter | 18 mm | 25 mm | 25 mm | 19 mm | 10 mm | 14 mm |
--- | --- | --- | --- | --- | --- | --- |
Rotor Diameter | 12.7 mm | 17 mm | 18 mm | 12.7 mm | 6.75 mm | 9.5 mm |
--- | --- | --- | --- | --- | --- | --- |
Immersion min/max | 40 / 225 mm | 40 / 225 mm | 40 / 225 mm | 40 / 165 mm | 15 / 85 mm | 15 / 85 mm |
--- | --- | --- | --- | --- | --- | --- |
Shaft Length | 270 mm | 270 mm | 270 mm | 194 mm | 150 mm | 150 mm |
--- | --- | --- | --- | --- | --- | --- |
Ultimate Suspension | 10 - 50 um | 15 - 50 um | 5 - 25 um | 10 - 50 um | 10 - 50 um | 10 - 50 um |
--- | --- | --- | --- | --- | --- | --- |
Ultimate Emulsion | 1 - 10 um | 1 - 10 um | 1 - 5 um | 1 - 10 um | 5 - 20 um | 5 - 20 um |
--- | --- | --- | --- | --- | --- | --- |
Max. Temperature | 220 ℃ | 120 ℃ | 100 ℃ | |||
--- | --- | --- | --- | --- | --- | --- |
재질 | FFPM / SIC, AISI 316L | PTFE / AISI 316L | Polycarbonate (PC) & Polyetheretherketon (PEEK) |
Cat. No. | H01-05-879 | H01-05-881 | H01-05-882 | H01-05-884 |
---|---|---|---|---|
Model | 4446900 | 4447100 | 4447300 | 4447500 |
--- | --- | --- | --- | --- |
Type | S25N-8G-ST | S25N-10G-ST | S25N-18G-ST | S25N-25G-ST |
--- | --- | --- | --- | --- |
Working Range | 1 ~ 50 ml | 1 ~ 100 ml | 10 ~ 1500 ml | 50 ~ 2000 ml |
--- | --- | --- | --- | --- |
Stator Diameter | 8 mm | 10 mm | 18 mm | 25 mm |
--- | --- | --- | --- | --- |
Rotor Diameter | 6.1 mm | 7.5 mm | 12.7 mm | 17 mm |
--- | --- | --- | --- | --- |
Immersion min/max | 27 / 85 mm | 22 / 85 mm | 40 / 165 mm | 40 / 165 mm |
--- | --- | --- | --- | --- |
Shaft length | 108 mm | 105 mm | 194 mm | 194 mm |
--- | --- | --- | --- | --- |
재질 | PTFE / AISI 316L |
Cat. No. | H01-05-651 | H01-05-652 | H01-05-653 | H01-05-654 | H01-05-655 |
---|---|---|---|---|---|
Model | 20002971 | 20002972 | 20002973 | 20002974 | 20002975 |
--- | --- | --- | --- | --- | --- |
Type | S 25 KD-18 G | S 25 KD-25 G | S 25 KD-18 G-ST | S 25 KD-25 G-ST | S 25 KD-25 F |
--- | --- | --- | --- | --- | --- |
Working Range | 10 ~ 1500 ml | 50 ~ 2000 ml | 10 ~ 1500 ml | 50 ~ 2000 ml | 100 ~ 2000 ml |
--- | --- | --- | --- | --- | --- |
Stator Diameter | 18 mm | 25 mm | 18 mm | 25 mm | |
--- | --- | --- | --- | --- | --- |
Rotor Diameter | 12.7 mm | 17 mm | 13.4 mm | 20 mm | 18 mm |
--- | --- | --- | --- | --- | --- |
Immersion min/max | 40 / 185 mm | ||||
--- | --- | --- | --- | --- | --- |
Shaft length | 194 mm | ||||
--- | --- | --- | --- | --- | --- |
재질 | AISI 316L, PTFE, Ceramic |
