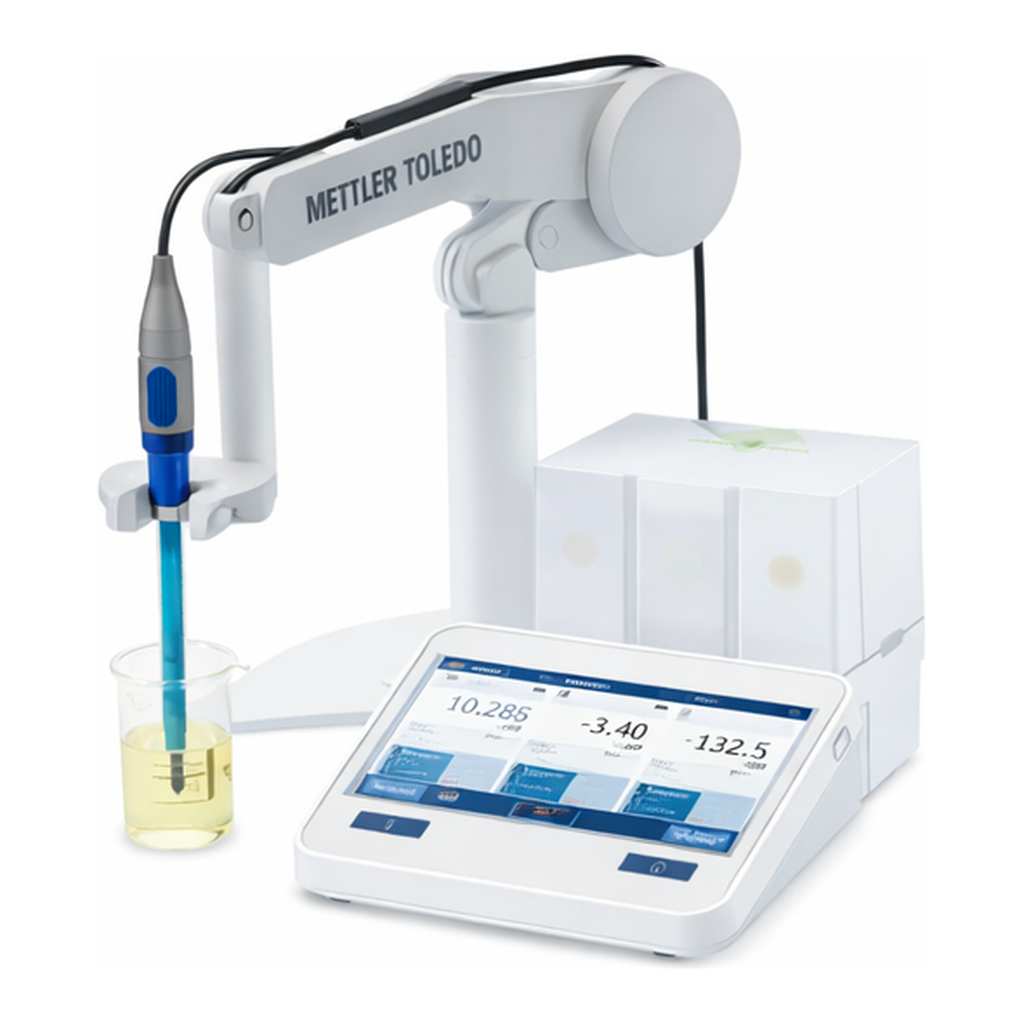

Lklab Korea Multi-Function pH Meter, Module-Type/정밀형 pH 미터, 다용도 모듈형, Seven Multi™

● 기기 한 대로 pH, 전도도, 이온을 측정할 수 있는 Module 시스템
● 기본 Multi Meter에 필요한 Module (pH, 전도도, 이온)을 장착하여 2 가지 기기의 기능을 수행
(2개의 전도도 모듈 제외)
● 기본 구성 Model은 일반적으로 많이 사용되는 구성을 System화 시킨 모델
(Upgrade expansion unit을 이용하여 기능 확장 및 구성 변화 가능)
● 모듈을 새로 장착 및 교환하여도 그 모듈을 자동으로 인식함
● Module
- PH/MV Expansion Unit (Option) - Conductivity Expansion Unit (Included)
- PH/Ion Expansion Unit (Option) - Blank Expansion Unit (Included)
● Large Color Display and Intuitive Touch Screen Operation
● GLP Compliant, Including User Management
● The USB, Ethernet and RS232 Interface
● Connection : Barcode Reader, Fingerprint Reader, USB Stick, Network Printer
● Mettler Toledo / SevenExcellenceTM

| | | | |
| --- | --- | --- | --- |Multi-Function pH Meter, Module-Type / 정밀형 pH 미터, 다용도 모듈형, Seven MultiTM
| Cat. No | Model | Parameter | 전극 |
| --- | --- | --- | --- |
| P02-162-220 | S400 | pH/ mV/ ℃ | X (포함 안됨) |
| P02-162-226 | S400-Kit | Expert Pro-ISM |
| P02-162-230 | S400-Bio | Routine Pro-ISM |
| P02-162-252 | S500 | pH/ mV/ Ion/ ℃ | X (포함 안됨) |
| P02-162-256 | S500-Kit | Expert Pro-ISM |
| P02-162-260 | S500-Bio | Routine Pro-ISM |
| P02-162-264 | S500-F | PerfectION Fluoride |
| P02-162-271 | S470 | pH/ mV/ Conductivity/ ℃ | X (포함 안됨) |
| P02-162-275 | S470-Kit | Expert Pro-ISM, 731 |
| P02-162-279 | S470-USP/EP | Routine Pro-ISM, 741 |
| P02-162-299 | S475 | pH/ mV/ Ion/ Conductivity/ ℃ | X (포함 안됨) |

구성 Component

Model	Components
S400	Instrument, pH/mV Module, 2 Blank Module Electrode Holder, Cover, 메뉴얼, Quick Guide, PC Software, Test Certificate
S400-Kit	S400 구성품, InLab Expert Pro-ISM 2 Buffer Sachets for pH 4.01, 7.00, 9.21 and 10.00
S400-Bio	S400-Kit 구성품, 단 전극은 InLab Routine Pro-ISM
S400-ISFET	S400-Kit 구성품, 단 전극은 InLab 490
S500	Instrument, pH/Ion Module, 2 Blank Module Electrode Holder, Cover, 메뉴얼, Quick Guide, PC Software, Test Certificate
S500-Kit	S500 구성품, InLab Expert Pro-ISM 2 Buffer Sachets for pH 4.01, 7.00, 9.21 and 10.00
S500-Bio	S500-Kit 구성품, 단 전극은 InLab Routine Pro-ISM
S500-F	S500-Kit 구성품, 단 전극은 Perfect Ion Fluoride
S470	S400 구성품, 단 Blank Module 대신 Conductivity Module
S470-Kit	S470 구성품, InLab Expert Pro-ISM, InLa 731-ISM 2 Buffer Sachets for pH 4.01, 7.00, 9.21 and 10.00
S470-USP/EP	S470-Kit 구성품, 단 전극은 InLab Pure Pro-ISM, InLab 741-ISM
S475	S400 구성품, Blank Module 대신 Conductivity Module & pH/Ion Module

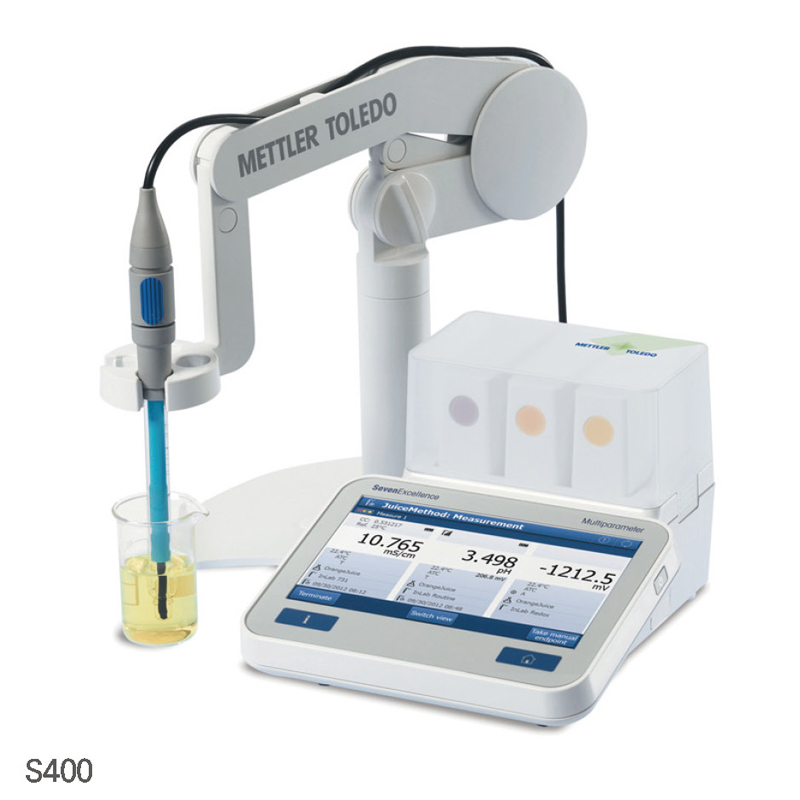

S400, Muti-function pH Meter

구분	Measuring Range	Resolution	Accuracy
pH	-2.000 ~ 20.000	0.001, 0.01, 0.1	±0.002
mV (rel. mV)	-2000.0 ~ 2000.0	0.1, 1	±0.1
Temperature	-30 ~ 130℃	0.1℃	±0.1℃
Ion	-	-	-
Connector	pH (BNC), Temp (Cinch/RCA(NTC 30㏀)), Stirrer(Mini-DIN)
Interface	Interface (RS232, USB-A, USB-B, LAN)
Power	DC 12V-10W
Size	w235×d188×h75 mm, 1120 g

S500, Muti-function pH Meter

구분	Measuring Range	Resolution	Accuracy
pH	-2.000 ~ 20.000	0.001, 0.01, 0.1	±0.002
mV (rel. mV)	-2000.0 ~ 2000.0	0.1, 1	±0.1
Temperature	-30 ~ 130℃	0.1℃	±0.1℃
Ion	0 ~ 999999 mg/L	0.001 ~ 1	±0.5%
Connector	pH (BNC), Temp (Cinch/RCA(NTC 30㏀)), Stirrer(Mini-DIN)
Interface	Interface (RS232, USB-A, USB-B, LAN)
Power	DC 12V-10W
Size	w235×d188×h75 mm, 1120 g

S470, pH & Conductivity Meter

구분	Measuring Range	Resolution	Accuracy
pH	-2.000 ~ 20.000	0.001, 0.01, 0.1	±0.002
mV (rel. mV)	-2000.0 ~ 2000.0	0.1, 1	±0.1
Temperature	-30 ~ 130℃	0.1℃	±0.1℃
Ion	-	-	-
Conductivity	0.001 uS/cm ~ 2000 mS/cm	0.001 ~ 1	±0.5%
TDS	0.001 ~ 1000 g/L	0.001 ~ 1	±0.5%
Resistivity	0.01 ~ 100.0 ㏀ • cm	0.01 ~ 0.1	±0.5%
Salinity	0.01 ~ 80.0 psu	0.01 ~ 0.1	±0.5%
Connector	Conductivity (Mini-DIN), Temp Seasor (Cinch/RCA(NTC 30㏀)), Stirrer(Mini-DIN)
Interface	Interface (RS232, USB-A, USB-B, LAN)
Power	DC 12V-10W
Size	w235×d188×h75 mm, 1120 g

S475, Muti-function pH Meter

구분	Measuring Range	Resolution	Accuracy
pH	-2.000 ~ 20.000	0.001, 0.01, 0.1	±0.002
mV (rel. mV)	-2000.0 ~ 2000.0	0.1, 1	±0.1
Temperature	-30 ~ 130℃	0.1℃	±0.1℃
Ion	-	-	-
Conductivity	0.001 uS/cm ~ 2000 mS/cm	0.001 ~ 1	±0.5%
TDS	0.001 ~ 1000 g/L	0.001 ~ 1	±0.5%
Resistivity	0.01 ~ 100.0 ㏀ • cm	0.01 ~ 0.1	±0.5%
Salinity	0.01 ~ 80.0 psu	0.01 ~ 0.1	±0.5%
Connector	pH (BNC), Temp (Cinch/RCA(NTC 30㏀)), Stirrer(Mini-DIN)
Interface	Interface (RS232, USB-A, USB-B, LAN)
Power	DC 12V-10W
Size	w235×d188×h75 mm, 1120 g

Optional Electrode for pH

Cat. No	Model	Shaft	Description
P02-162-502	InLab Expert Pro-ISM ①	Peek	Premium, 4-in-1
P02-162-523	InLab Routine Pro-ISM ②	Glass	General Purpose, 4-in-1

Optional Electrode for Conductivity

Cat. No	Model	Shaft	Description
C19-162-522	InLab 731 ③	Epoxy	4 Graphite Pole
C19-162-542	InLab 741 ④	Steel	2 Steel Pole

Ion Selective Electrodes, Perfect Ion™

Cat. No.	Model	Description
P02-162-703	51344700	Combined Silver/Sulfide Electrode
P02-162-707	51344703	Combined Calcium Electrode
P02-162-711	51344706	Combined Chloride Electrode
P02-162-715	51344709	Combined Cyanide Electrode
P02-162-719	51344712	Combined Cupric Electrode
P02-162-723	51344715	Combined Fluoride Electrode
P02-162-727	51344718	Combined Iodide Electrode
P02-162-731	51344721	Combined Potassium Electrode
P02-162-735	51344724	Combined Natrium Electrode / w S7 head
P02-162-739	51344727	Combined Nitrate Electrode
P02-162-743	51344730	Combined Lead Electrode

• ● BNC Connector, 1.2 m Cable

Upgrade Expansion Unit ⑤

Cat. No.	Model	Description
C19-162-850	30034472	PH/MV Expansion Unit
C19-162-860	30034473	Conductivity Expansion Unit
C19-162-870	30034471	PH/Ion Expansion Unit
C19-162-880	30034475	Blank Expansion Unit

Optional Accessory

Cat. No.	Model	Description
C19-162-902	11120270	Power adapter / w Plugs 12V / 10W
C19-162-914	51302888	Rondolino Sample Changer
C19-162-918	21901297	Barcode Reader
C19-162-922	21901309	USB Cable for Barcode Reader
C19-162-926	51191926	USB A-B Cable for LabX↔PC Software
