Lklab Korea pH / Ion / Conductivity Meter / pH / Ion / Conductivity 미터

● 정밀형 pH, ORP, Ion, Conductivity Concentration Meter
● 빠르고 정밀하며 작동 및 거치가 편리함
● Large Color Display and Intuitive Touch Screen Operation
● ISM® (Intelligent Sensor Management) 기능
● 구성
1) SD20/SD50 : Meter, Electrode Arm EasyPlace, Protect Cover, Manual, Quick Guide Power Supply, Declaration of Conformity and Test Certificate
2) SD20/SD50-Kit : “SD20/SD50” 기본 구성품, Inlab® Expert Pro-ISM 전극, pH 측정가이드, 1회용 Buffer 3개 (pH 4.01, 7.00, 9.21 and 10.00)
3) 이외의 Kit : “SD20/SD50-Kit” 기본구성품, 사용 Kit에 따라 다른 전극으로 구성
4) SD23 : Meter, Sensor Holder EasyPlace Triple, Protect Cover, Manual, Quick Guide Power Supply, Declaration of Conformity and Test Certificate
5) SD23-Kit : “SD23” 기본 구성품, Inlab® Expert Pro-ISM 전극, Inlab® 731-ISM 전극, 1회용 Buffer 3개 (pH 4.01, 7.00, 9.21 and 10.00), 전도도 표준물질 2개 (1413uS/cm, 12.88mS/cm)

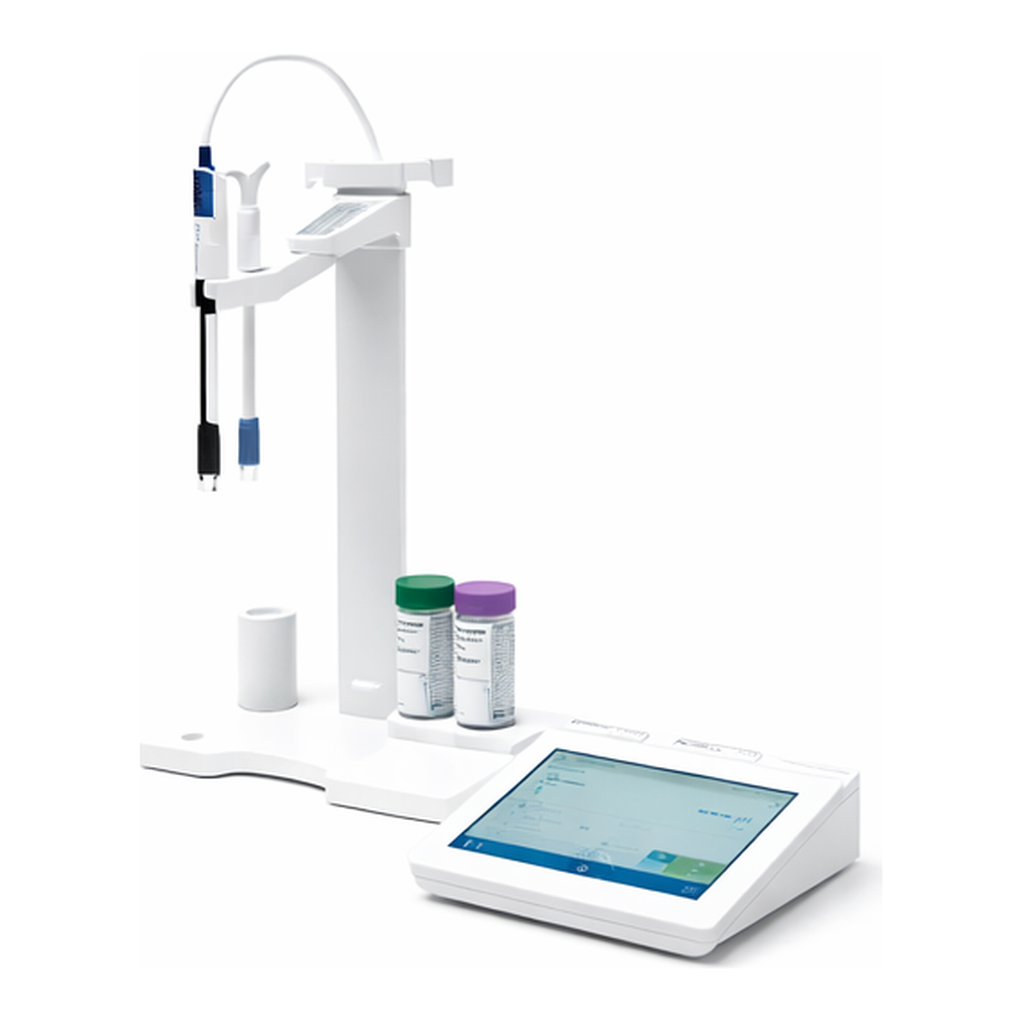

● Mettler Toledo / SevenDirect®

pH Meter

Cat. No	Model	구분	전극
P08-162-201	SD20	Instrument	(포함 안됨)
P08-162-204	SD20-Kit	InLab® Expert Pro-ISM
P08-162-207	SD20-HA	InLab® Routine Pro-ISM
P08-162-210	SD20-Organic	InLab® Science Pro-ISM
P08-162-213	SD20-Pure H2O	InLab® Pure Pro-ISM
P08-162-216	SD20-Solids	InLab® Solids Pro-ISM
P08-162-219	SD20-Viscous	InLab® Viscous Pro-ISM
P02-162-222	SD20-LowVol	InLab® Micro Pro-ISM
P02-162-225	SD20-Stirrer	InLab® Expert Pro-ISM & EasyMix stir

pH / Ion Meter

Cat. No	Model	구분	전극
P08-162-231	SD50	Instrument	(포함 안됨)
P08-162-234	SD50-Kit	InLab® Expert Pro-ISM
P08-162-237	SD50-HA	InLab® Routine Pro-ISM
P08-162-240	SD50-Organic	InLab® Science Pro-ISM
P08-162-243	SD50-Pure H2O	InLab® Pure Pro-ISM
P08-162-246	SD50-LowVol	InLab® Micro Pro-ISM
P08-162-249	SD50-F-Ion	PerfectION™ F 센서

pH / Conductivity Meter

Cat. No	Model	구분	전극
P08-162-251	SD23	Instrument	(포함 안됨)
P08-162-254	SD23-Kit	InLab® expert Pro-ISM & InLab 731-ISM
P08-162-257	SD23-Pure H2O	InLab® Pure Pro-ISM & InLab 741-ISM

| | | | |
| --- | --- | --- | --- |pH Electrode
| SD20/SD50/SD23 | Range | Resolution | Accuracy |
| --- | --- | --- | --- |
| pH | -2.000 ~ 20.000 | 0.001 / 0.01 / 0.1 | ±0.002 |
| mV | -2000.0 ~ 2000.0 | 0.1 / 1 | ±0.2 |
| Ion Concentration(SD20) | 0.000 ~ 100.000%
0.000 ~ 999,999 ppm
-2.000 ~ 20.000 pX | ±Last Significant Digit | ±0.5% |
| Conductivity Concentration(SD23) | 0.001 μS/cm ~ 2000 mS/cm | 0.001 ~ 1.000 | ±0.5% |
| Temp. MTC | -30℃ ~ 130℃ | 0.1℃ | ±0.1℃ |
| Data Processing | Data Storage : 2000 Measurements

Print Formats : Short, Normal, GLP | | |
| Connector | pH (BNC), Temp. (Cinch/RCA), USB, 교반기용 Mini-DIN, Reference (2 mm Ref.) | | |
| Size / Weight | w195×d205×h65 mm / 850 g | | |

Optional Accessory

| Cat. No | Model | Description | |
| --- | --- | --- |
| P08-162-261 | 30671569 | Electrode Arm EasyPlace Complete | |
| P08-162-263 | 30671570 | Magnetic Stirrer EasyStir | |
| P08-162-265 | 30671571 | Parking beaker EasyPlace | |
| P08-162-267 | 30671572 | Parking beaker Insert EasyPlace | |
| P08-162-269 | 30671573 | Sachet Holder EasyPlace | |
| P08-162-271 | 30671574 | Sensor Holder EasyPlace Single | |
| P08-162-273 | 30671575 | Sensor Holder EasyPlace Triple | |
| P08-162-275 | 30671576 | Sensor Holder EasyPlace Single Extended | |
| P08-162-277 | 30671577 | Pole EasyPlace 30 cm | |
| P08-162-279 | 30671578 | Pole EasyPlace 50 cm | |
| P08-162-281 | 30671579 | Base Plate EasyPlace | |
| P08-162-283 | 30671580 | Power Supply 18W | |
| P08-162-285 | 30671581 | Top Cover pole EasyPlace | |
| P08-162-287 | 30671541 | Packaging Carton box SevenDirect | |
| P08-162-289 | 30671533 | Screws and feet set EasyPlace | |
| P08-162-291 | 30671529 | Protective cover SevenDirect | |
| P08-162-293 | 30671583 | Plug set 18 W power supply | |
| P08-162-295 | 30718583 | 3-in-1 Fluoride Solutions Kit | |

pH Electrode with Fixed Cable

Cat. No	Model	Description
P02-162-501	30014096	InLab® Expert Pro-ISM
P02-162-550	51343031	InLab® Versatile Pro, 3-in-1 pH Sensor, Polysulfone Shaft, ATC, Refillable

pH Electrode with Multipin Head

| Cat. No | Model | Description | |
| --- | --- | --- |
| P02-162-523 | 51344055 | InLab® Routine Pro ISM, 4-in-1 pH Sensor, Glass Shaft, ATC, Refillable | |
| P02-162-535 | 51344172 | InLab® Pure Pro ISM, 4-in-1 pH Sensor, Glass Shaft (Immovable), ATC, Refillable | |
| P02-162-544 | 51344072 | InLab® Science Pro ISM, 4-in-1 pH Sensor, Glass Shaft (Movable), ATC, Refillable | |
| P02-162-554 | 51343151 | InLab® Viscous Pro ISM, 4-in-1 pH Sensor, Glass Shaft (6 mm), ATC, Refillable | |
| P02-162-563 | 51344163 | InLab® Micro Pro ISM, 4-in-1 pH Sensor, Glass Shaft (5 mm), ATC, Refillable | |
| P02-162-576 | 30248830 | InLab® Max Pro ISM, 4-in-1 pH Sensor, Glass Shaft (12 mm), ATC, Refillable | |

• ● Electrode Only, Cable은 별도 구매해야 함, Optional Accessory 참조

Ion Selective Electrodes, Perfect Ion™

Cat. No.	Model	Description
P02-162-707	51344703	Combined Calcium Electrode
P02-162-711	51344706	Combined Chloride Electrode
P02-162-723	51344715	Combined Fluoride Electrode
P02-162-735	51344724	Combined Natrium Electrode / w S7 head

• ● BNC Connector, 1.2 m Cable

Electrode for Conductivity

Cat. No	Model	Shaft	Description
C19-162-522	InLab 731	Epoxy	4 Graphite Pole
C19-162-542	InLab 741	Steel	2 Steel Pole
