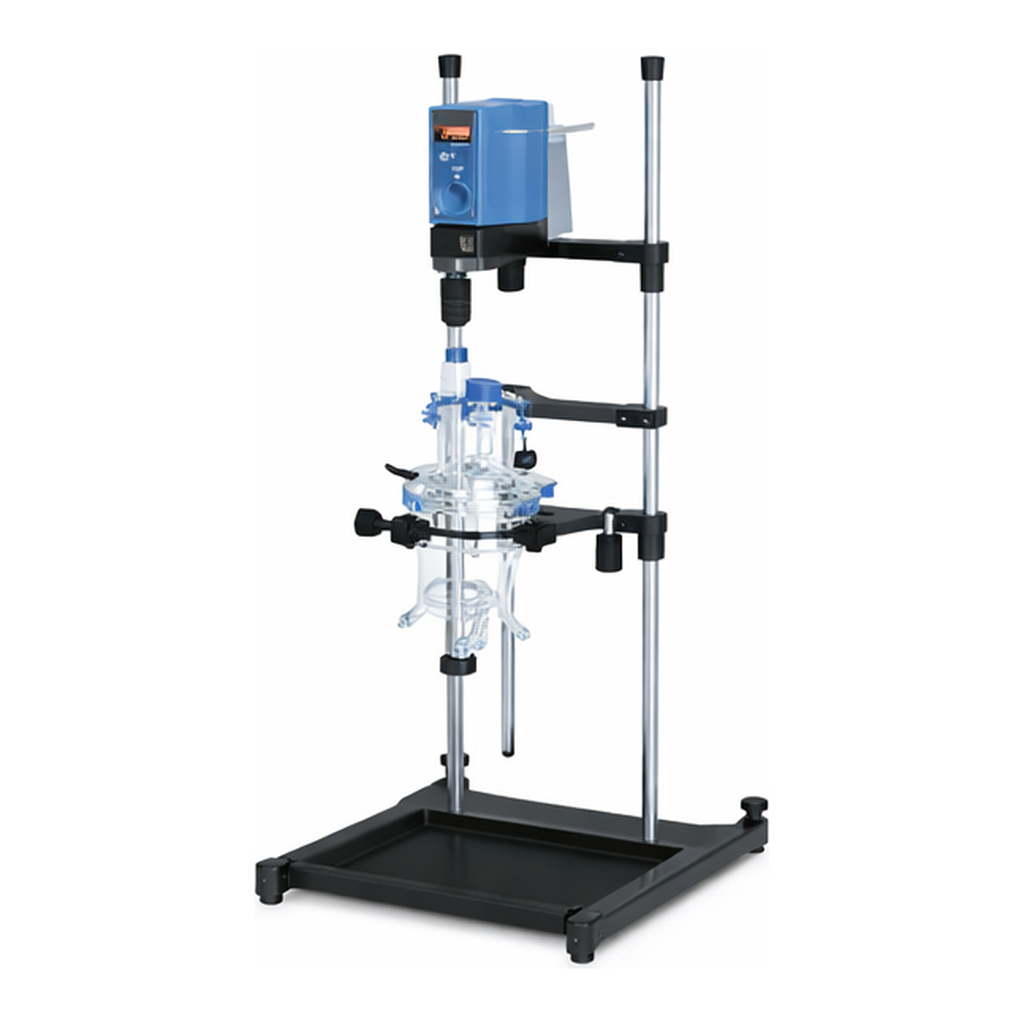

■ 유기체합성물 또는 수분을 함유한 합성물을 위한 반응기 시스템
■ 고성능의 반응기 시스템은 -30 ~ 200도, 25mbar의 부압에서도 작동함
■ 인체공학적으로 제작되어 반응조를 쉽고 빠르게 갈아끼울 수 있음
■ 사용자에 따라 장비 높이 조절이 가능함
■ 최적의 혼합과 화학적 저항성을 위해 PTFE 코팅 처리된 프로펠러 스터러
■ IKA
| | | | |
| --- | --- | --- | --- |상세 규격 표
| Cat. No. | Model | Max.volume | Max.Torque |
| --- | --- | --- | --- |
| R02-05-105 | EasySyn 500 S | 500 ml | 60 Ncm |
| R02-05-110 | EasySyn 1000 S | 1 L |
| Cat. No. |
R02-05-105 |
R02-05-110 |
| Type |
EasySyn 500 S |
EasySyn 2000 S |
| --- |
--- |
--- |
| Max. volume |
500 ml |
1 L |
| --- |
--- |
--- |
| Working temperature |
-30 ~ 200 °C |
|
| --- |
--- |
--- |
| Attainable vacuum |
25 mbar |
|
| --- |
--- |
--- |
| Flange dimension |
DN100 |
|
| --- |
--- |
--- |
| Dimensions |
w500 x d1050 x h580 mm |
|

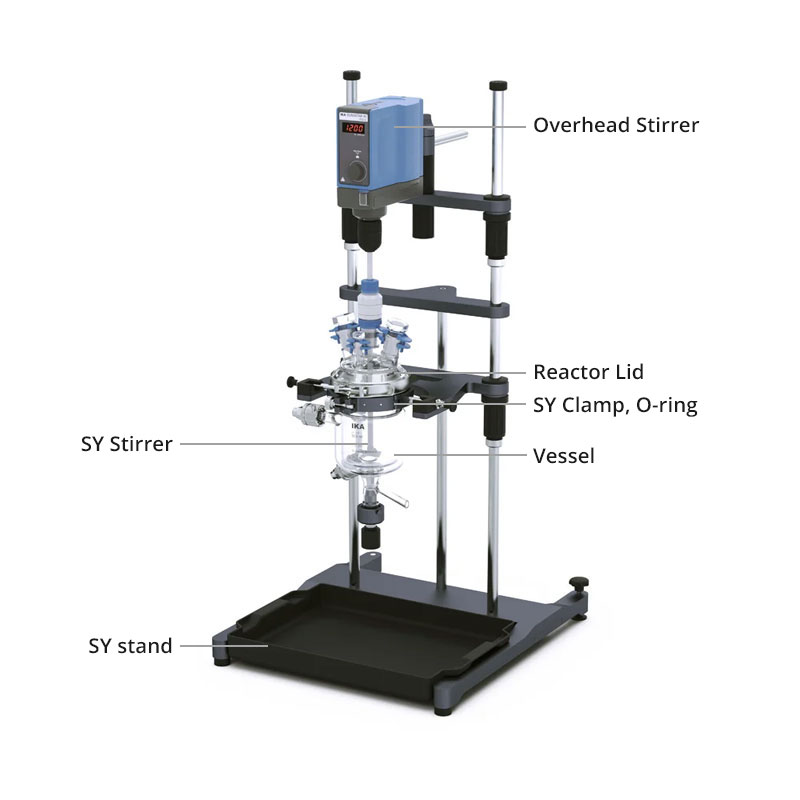

Vessel①
| Cat. No. |
Model |
Description |
| R02-05-201 |
SY 500 |
Reactor vessel 500 ml |
| R02-05-204 |
SY 500 D |
Reactor vessel 500 ml with bottom discharge |
| R02-05-207 |
SY 1000 |
Reactor vessel 1000 ml |
| R02-05-210 |
SY 1000 D |
Reactor vessel 1000 ml with bottom discharge |
Reactor Lids②
| Cat. No. |
Model |
Description |
| R02-05-231 |
SY 100.1 |
Reactor lid DN 100 for EasySyn |
SY Propeller Stirrer③
| Cat. No. |
Model |
Description |
Shaft Size |
| R02-05-241 |
R 4011 |
SY Propeller stirrer |
Φ10×L400 mm |
| R02-05-244 |
R 4012 |
SY Propeller stirrer |
Φ10×L480 mm |
SY Anchor Stirrer④
| Cat. No. |
Model |
Description |
Shaft Size |
| R02-05-250 |
R 4021 |
SY Anchor Stirrer |
Φ10×L410 mm |
Clamp, O-ring⑤
| Cat. No. |
Model |
Description |
| R02-05-274 |
SY clamp 100 |
Vessel clamp DN 100 for EasySyn 500 S,1000 S |
| R02-05-277 |
SY clamp ring 100 |
Clamp ring DN 100 for EasySyn 500 S,1000 S |
| R02-05-280 |
SY O-ring 100 |
O-ring DN 100 for EasySyn 500 S,1000 S |

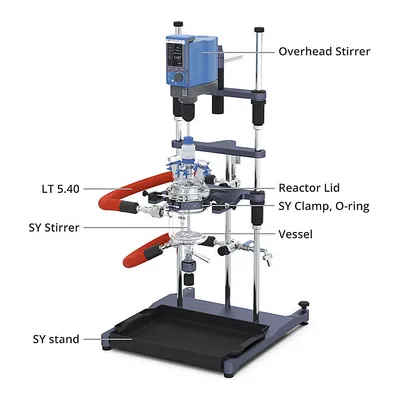

Hose⑥
| Cat. No. |
Model |
Description |
| R02-05-261 |
LT 5.40 |
Draining set for reactor system |
| R02-05-311 |
LT 5.30 |
Tempering hose 800 mm |
| R02-05-314 |
LT 5.31 |
Tempering hose 1200 mm |
| R02-05-317 |
LT 5.32 |
Tempering hose 1600 mm |
Adapter⑦
| Cat. No. |
Model |
Description |
| R02-05-301 |
SY NS.6 |
Swivelling screw fitting 6 mm |
| R02-05-304 |
SY NS.8 |
Swivelling screw fitting 8 mm |
| R02-05-307 |
SY NS.12 |
Swivelling screw fitting 12 mm |
Optional Accessory
| Cat. No. |
Model |
Description |
| R02-05-271 |
SY stand |
Stand system |
| R02-05-283 |
Stirrer guide |
SY guide for the EasySyn reactor system |
| R02-05-321 |
PT 100.300 |
Temperature sensor 300mm for EasySyn 500 S,1000 S |
| R02-05-331 |
SY pH 325 |
pH electrode 325 mm for EasySyn 500 S,1000 S |
