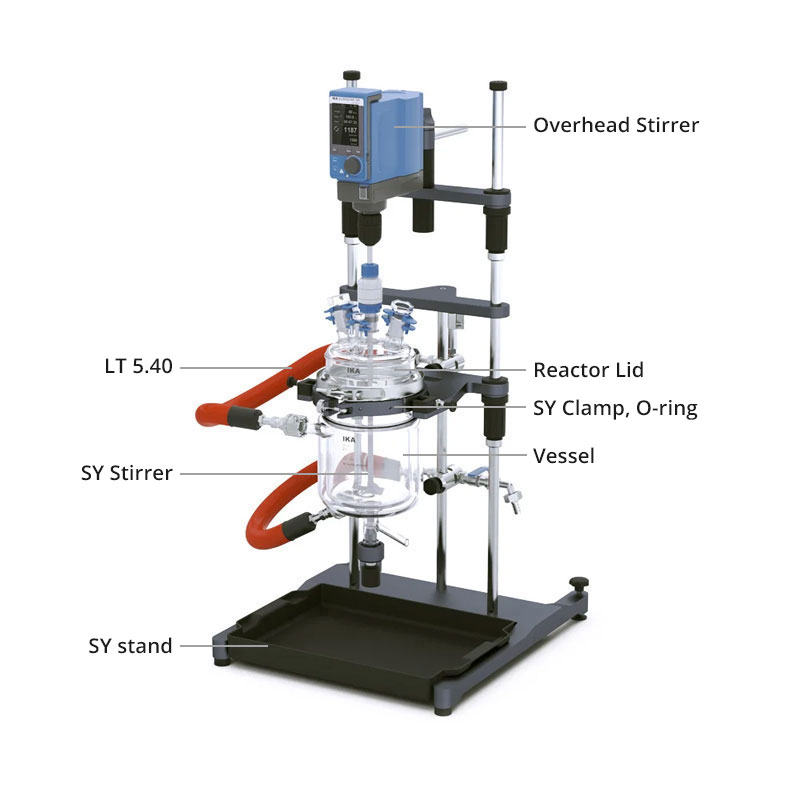

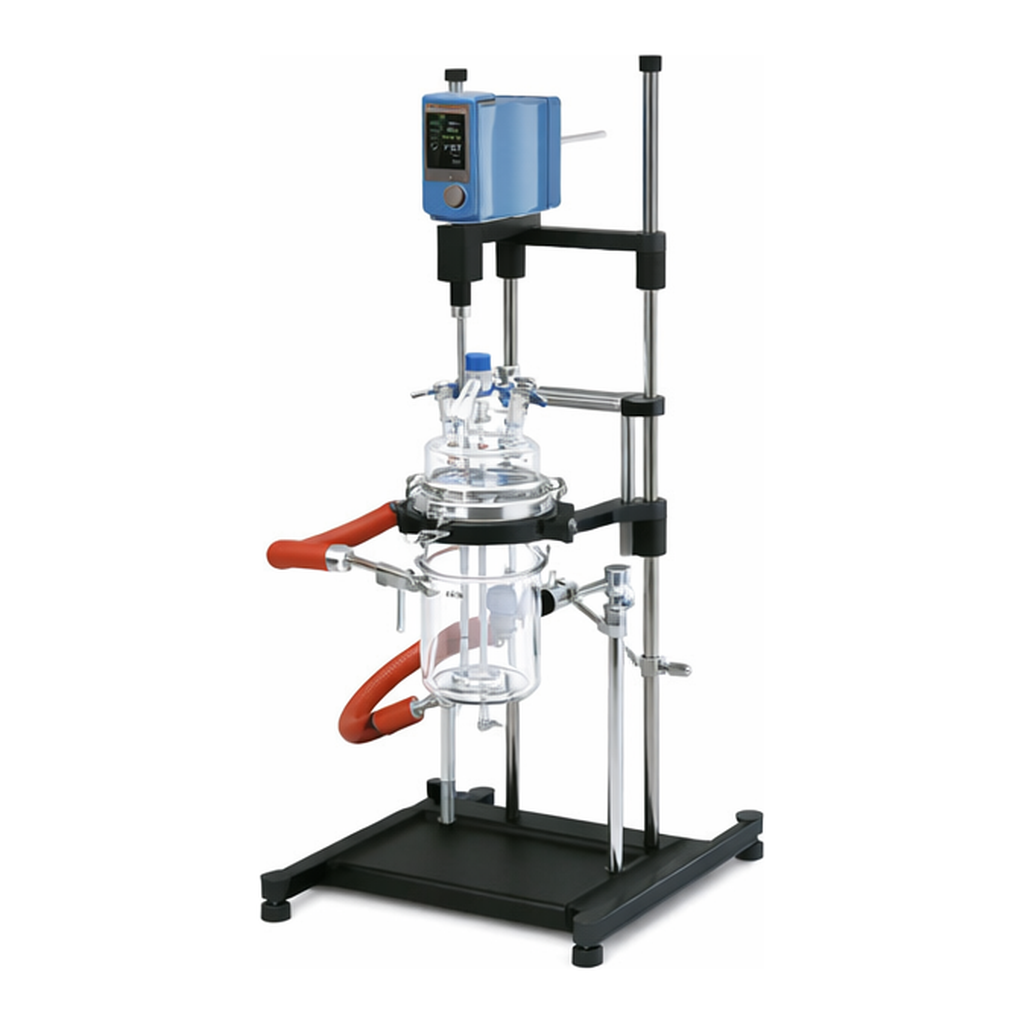

Lklab Korea EasySyn Advanced Reactor system / 소형 반응시스템, 2 L & 5 L

■ 유기체합성물 또는 수분을 함유한 합성물을 위한 반응기 시스템
■ 실험실 연구 및 예비 연구에서의 화학반응의 안전성, 재현성을 보장해줌
■ LT 5.40 draining set를 장착하고 있어 tempering fluid를 빠른 속도로 깔끔하게 배출하고
reaction vessel을 쉽게 갈아끼울 수 있음
■ 사용자에 따라 장비 높이를 조절할 수 있음
■ 최적의 혼합과 화학적 저항성을 위해 PTFE 코팅 처리된 프로펠러 스터러
■ RS 232 interface-Lab automation software labworldsoft® 6 연결로
외부 컨트롤이 가능함(악세사리 별도 구매)
■ IKA

| | | | |
| --- | --- | --- | --- |상세 규격 표
| Cat. No. | Model | Max.volume | Max.Torque |
| --- | --- | --- | --- |
| R02-05-020 | EasySyn 2000 A | 2 L | 100 Ncm |
| R02-05-050 | EasySyn 5000 A | 5 L |

Cat. No.	R02-05-020	R02-05-050
Type	EasySyn 2000 A	EasySyn 5000 A
---	---	---
Max. volume	2 L	5 L
---	---	---
RS232 interface / USB interface	O
---	---	---
Working temperature	-30 ~ 200 °C
---	---	---
Attainable vacuum	25 mbar
---	---	---
Flange dimension	DN100
---	---	---
Dimensions	w500 x d1050 x h580 mm

Vessel①

Cat. No.	Model	Description
R02-05-213	SY 2000	Reactor vessel 2000 ml
R02-05-216	SY 2000 D	Reactor vessel 2000 ml with bottom discharge
R02-05-219	SY 5000	Reactor vessel 5000 ml
R02-05-222	SY 5000 D	Reactor vessel 5000 ml with bottom discharge

Reactor Lids②

Cat. No.	Model	Description
R02-05-234	SY 150.1	Reactor lid DN 150 for EasySyn
R02-05-237	SY 150.2	Reactor lid DN 150 for EasySyn

SY Propeller Stirrer③

Cat. No.	Model	Description	Shaft Size
R02-05-244	R 4012	SY Propeller stirrer	Φ10×L480 mm
R02-05-247	R 4013	SY Propeller stirrer	Φ10×L530 mm

SY Anchor Stirrer④

Cat. No.	Model	Description	Shaft Size
R02-05-253	R 4022	SY Anchor Stirrer	Φ10×L530 mm

Clamp, O-ring⑤

Cat. No.	Model	Description
R02-05-286	SY clamp 150	Vessel clamp DN 100 for EasySyn 2000 A, 5000 A
R02-05-289	SY clamp ring 150	Clamp ring DN 100 for EasySyn 2000 A, 5000 A
R02-05-292	SY O-ring 150	O-ring DN 100 for EasySyn 2000 A, 5000 A

Hose⑥

Cat. No.	Model	Description
R02-05-261	LT 5.40	Draining set for reactor system
R02-05-311	LT 5.30	Tempering hose 800 mm
R02-05-314	LT 5.31	Tempering hose 1200 mm
R02-05-317	LT 5.32	Tempering hose 1600 mm

Adapter⑦

Cat. No.	Model	Description
R02-05-301	SY NS.6	Swivelling screw fitting 6 mm
R02-05-304	SY NS.8	Swivelling screw fitting 8 mm
R02-05-307	SY NS.12	Swivelling screw fitting 12 mm

Optional Accessory

Cat. No.	Model	Description
R02-05-271	SY stand	Stand system
R02-05-283	Stirrer guide	SY guide for the EasySyn reactor system
R02-05-324	PT 100.500	Temperature sensor 500mm for EasySyn 2000 A, 5000 A
R02-05-334	SY pH 425	pH electrode 425 mm for EasySyn 2000 A,5000 A
R02-05-341	SY C1	Reflux Condenser
