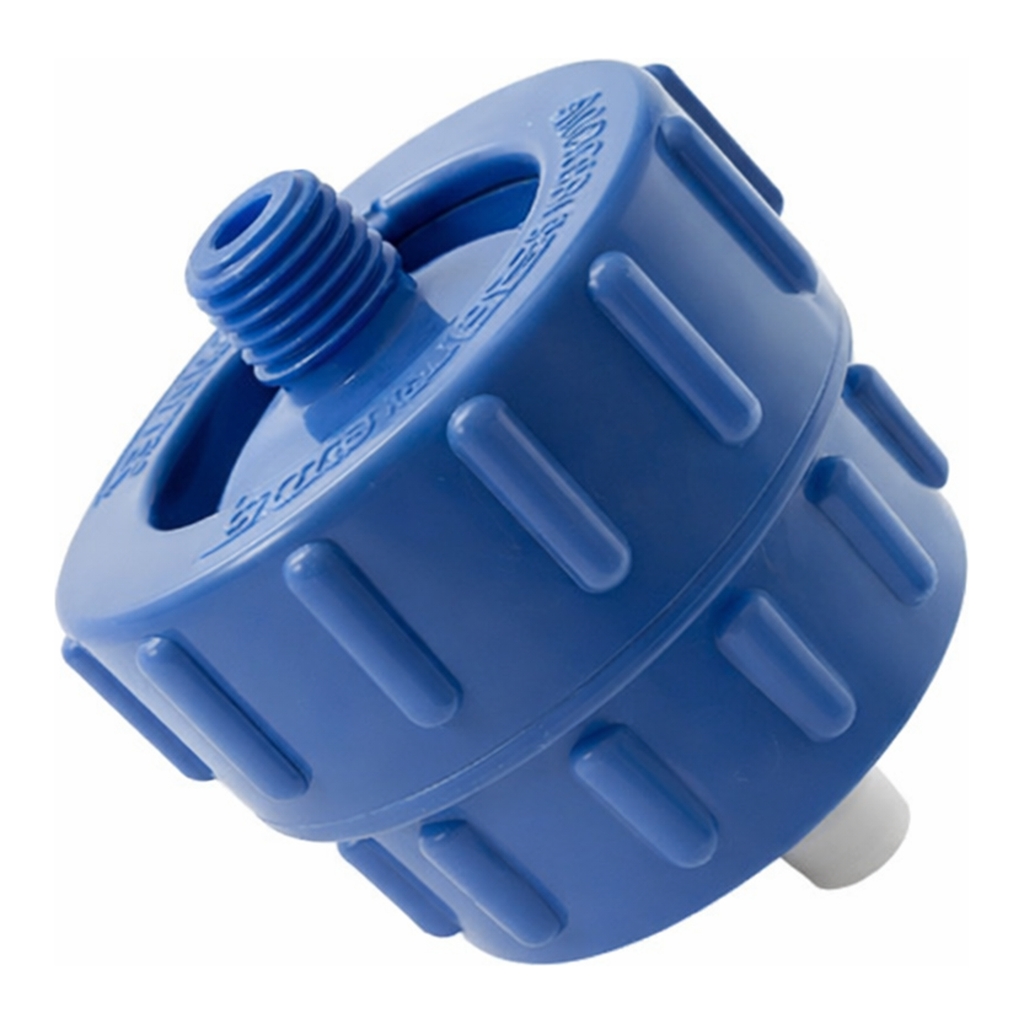

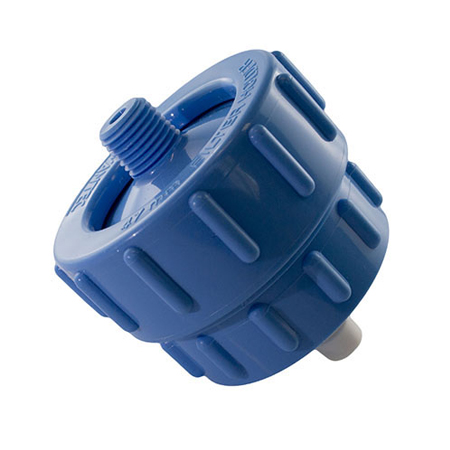

Filter holders for membranes (47mm)

ㆍ주요특징

• 하우징 재질 PP
• O-Ring 재질 Silicone
• 여과 직경 47 mm (47 mm 원형 맴브레인 적합
• 하우징 직경 : 63.5mm
• 여과 면적 : 13.5cm2
• 허용 여과 용량 50 - 1000 ml
• 사용온도 : 1.9 bar에서 최대 80 °C
• 연결방식 : Female Luer Slip or 0.25” NPT Male (Inlet), Female Luer Slip or 0.25” NPT Male (Outlet)
• 고압멸균 : 121 °C, 1 bar, 20분
• 포장단위 : 비멸균 (1개, 10개 포장)

ㆍ주요용도

• 생물학적 수용액
• 멤브레인에 여과되고 남은 미세 입자 관찰 시 유효
• 가스 크로마토그래피 시료 여과
• 넓은 범위의 내화학성
• 특별한 도구 없이 빠르고 효과적으로 조립 가능
• Luer Lock을 통한 Pore Size별 직렬 연결로 전처리 여과 및 이중막 여과 가능47 mm Filter Holder

*Features & Benefits
*Easy to use - unique lock ring design assures proper sealing without damage to the membrane
Easy to clean
Conforms with EPA Method 1311 for Toxicity Characteristic Leaching Procedure, 40 CFR, Part 261, 1991 Hazardous Waste Compliance Guide

The GVS polypropylene 47 mm filter holder is designed especially for ultra cleaning and sterilizing liquids under positive pressure. In addition this holder can be used for aseptic sampling of liquids or gases at point-of-use or when samples must be collected and processed on-site.

The polypropylene material allows these holders to be used over a wide temperature range with excellent chemical compatibility. Sealing is achieved by simple hand tightening of the locking ring. The 47 mm In-Line holder has dual support screens, which allow for flow in either direction. The inlet cap design and exterior locking ring allow the unit to be assembled quickly and efficiently without tearing the membrane. 3 O-rings help to prevent leaks with all membranes. The 47 mm can filter up to 1 liter depending upon the viscosity of the sample. The polypropylene holder can withstand temperatures up to 121°C and be autoclaved.

*Applications
*Point of use sampling
Particulate removal
Used in filtering chromatography solvents
General filtration
