ㆍ주요특징
- 하우징 재질 PP
- O-Ring 재질 Silicone
- 여과 직경 25 mm (25 mm 원형 맴브레인 적합
- 하우징 직경 : 30mm
- 여과 면적 : 3.5cm2
- 허용 여과 용량 10 - 50 ml
- 사용온도 : 2.89 bar에서 최대 80 °C
- 연결방식 : Female Threaded Luer (Inlet), Male Luer Slip (Outlet)
- 고압멸균 : 121 °C, 1 bar, 20분
- 포장단위 : 비멸균 (10개 포장)
ㆍ주요용도
- 생물학적 수용액
- 멤브레인에 여과되고 남은 미세 입자 관찰 시 유효
- 가스 크로마토그래피 시료 여과
- 넓은 범위의 내화학성
- 특별한 도구 없이 빠르고 효과적으로 조립 가능
- Luer Lock을 통한 Pore Size별 직렬 연결로 전처리 여과 및 이중막 여과 가능25 mm - Filter Holder
*Features & Benefits
*Excellent chemical compatibility
Quick, efficient assembly
No need for special tools
Excellent temperature and chemical resistance
Several syringe holders can be attached together for serial filtration

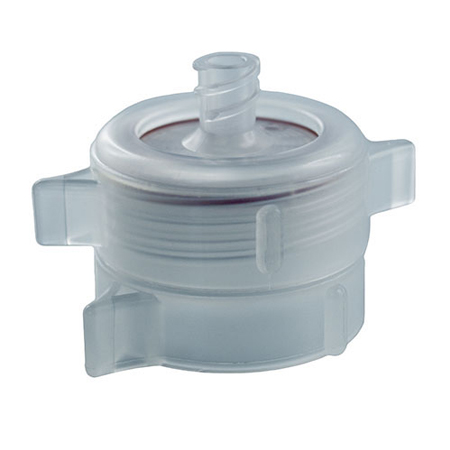

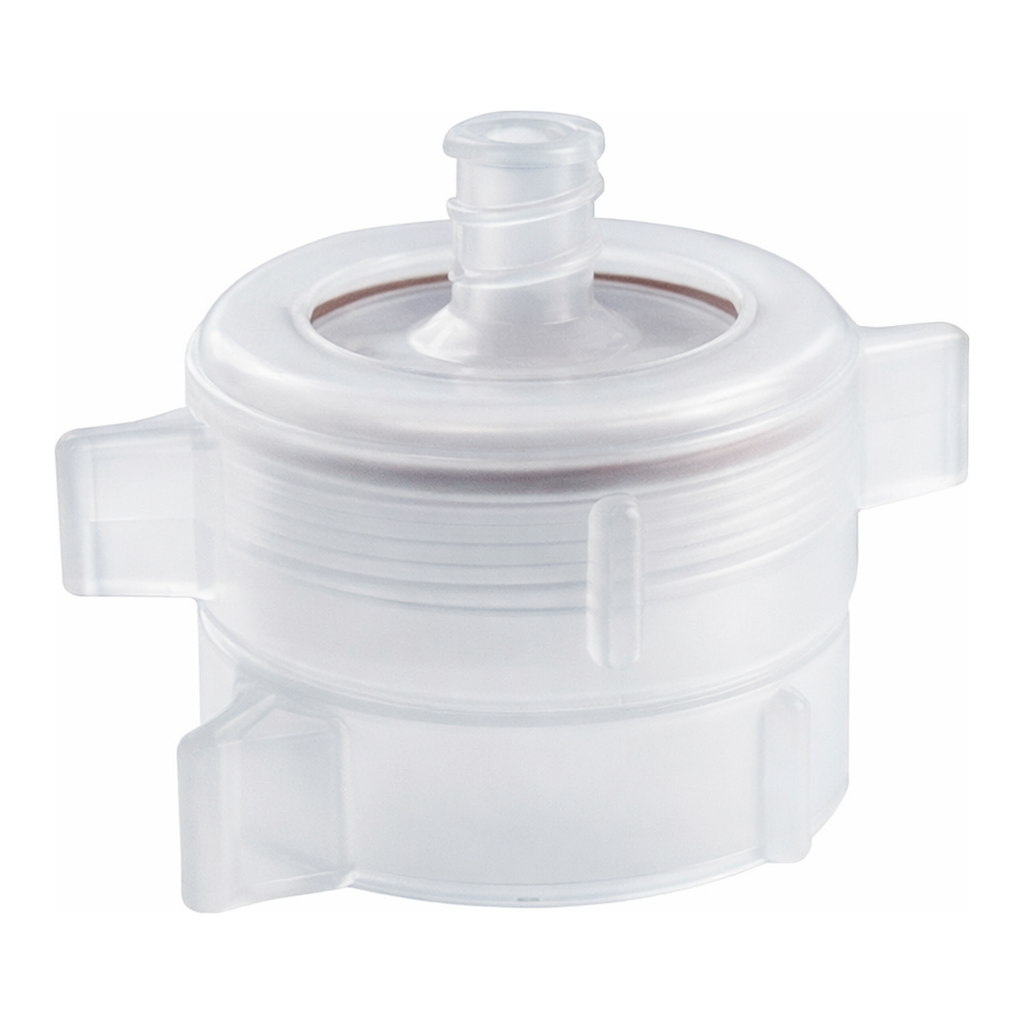

The GVS polypropylene 25 mm filter holders are very useful for ultra cleaning and sterilizing small volumes of liquids from a syringe. Due to the polypropylene construction they can be used over a wide temperature range with excellent chemical compatibility. In the case of the syringe, the inlet cap locks into the base to prevent twisting damage to the membrane as the cap is tightened. Projection lugs on the base and the cap allow these units to be assembled and sealed quickly and efficiently. Typically, the 25 mm is used to filter up to 50 mL of sample. With the syringe holder type, dual support screens prevent membrane rupture in case back pressure is applied. It also allows for bi-directional sample flow. The polypropylene holder has a broad chemical compatibility range. It can withstand temperatures up to 121°C. and be autoclaved.
| PRODUCT CODE |
DESCRIPTION |
| 1214250 |
Filter holder PP 25 mm (10 pcs) |
| 1214526 |
Filter holder PP support screen 25 mm (10 pcs) |
