Polypropylene (PP) Capsule Filter
AI 생성AI가 생성·보정한 이미지예요. AI는 실수할 수 있으니 실제 제품과 다를 수 있어요.
1 / 2
GVS

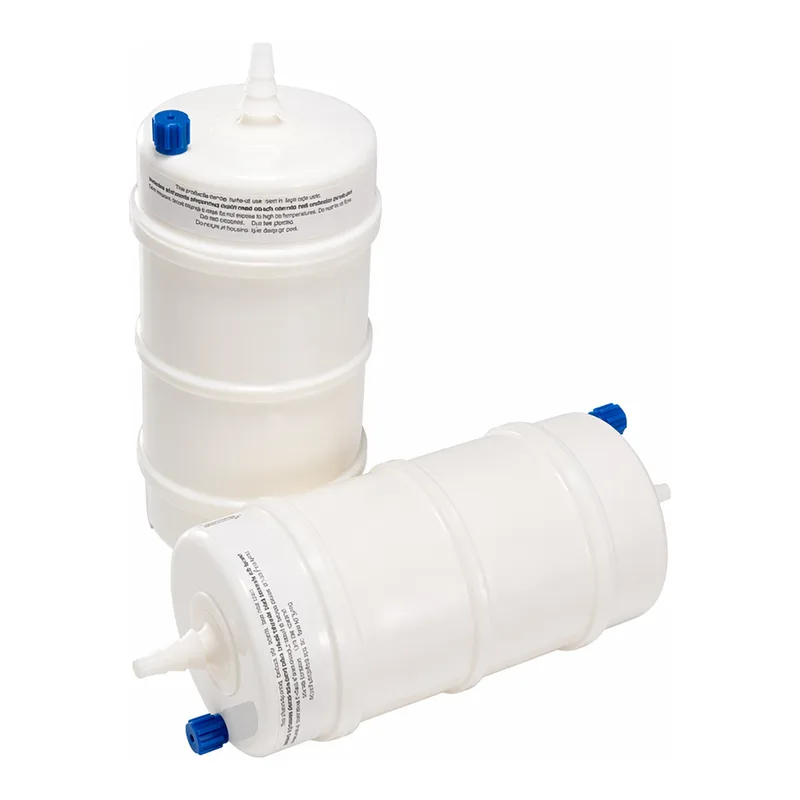

Polypropylene (PP) Capsule Filter

상품 한눈에 보기

- 폴리프로필렌(Polypropylene) 멤브레인과 하우징으로 구성된 일회용 캡슐 필터 - USP Class VI 인증을 통과한 안전한 재질 - 다양한 연결 방식(NPT, 호스바브, Sanitary Flange) 지원 - 제약, 식음료, 전자 산업 등 다양한 분야에 사용 가능 - 넓은 여과 면적과 다양한 미세공극 크기(0.2~25 µm) 제공

브랜드
GVS
카테고리
Capsule Filters
#Filters#Capsule Filters#GVS

GVS · Polypropylene (PP) Capsule Filter

Polypropylene (PP) Capsule Filter

주요 특징

  • 하우징 재질: PE, PP
  • 멤브레인 재질: PP (소수성)
  • 하우징 직경: 9 cm
  • 하우징 길이:
    • Small Size: 9–13 cm
    • Medium Size: 19–23 cm
    • Large Size: 29–33 cm
  • 여과 면적:
    • Small Size: 748 cm²
    • Medium Size: 2,806 cm²
    • Large Size: 5,500 cm²
  • 허용 압력:
    • 액체상(21°C): 5.5 bar
    • 기체상(21°C): 3.8 bar
  • 허용 차압: 4.1 bar
  • 사용 온도: 2.1 bar에서 최대 43°C
  • 연결 방식: Stepped barb, NPT, Sanitary Flange

주요 용도

  • USP 플라스틱 독성 테스트 Class VI 통과
  • 필터와 하우징을 재조립할 필요 없는 일회용 여과 장치
  • 대부분의 수용액을 포함하는 넓은 pH 범위 적용
  • 제약, 식음료, 전자 분야 등 다양한 산업에 활용 가능
  • 다양한 연결 방식으로 어떠한 사용 환경에도 적합

Hydrophobic, Polypropylene Housing

PRODUCT CODE DESCRIPTION
1213584 Capsule filter NON sterile PP 0.2 µm surface 0.8 ft² connectors 0.25 in Male NPT
1212949 Capsule filter NON sterile PP 0.2 µm surface 0.8 ft² connectors 0.25–0.5 in stepped hose barb
1212929 Capsule filter NON sterile PP 0.2 µm surface 0.8 ft² connectors 0.5 in Male NPT
1212971 Capsule filter NON sterile PP 0.2 µm surface 0.8 ft² connectors 1.5 in sanitary flange
1213578 Capsule filter NON sterile PP 0.2 µm surface 0.8 ft² connectors 3/8 in hose barb
1213057 Capsule filter NON sterile PP 0.2 µm surface 3.0 ft² connectors 0.5 in Male NPT
1213089 Capsule filter NON sterile PP 0.2 µm surface 5.9 ft² connectors 0.25 in Male NPT
1213090 Capsule filter NON sterile PP 0.2 µm surface 5.9 ft² connectors 0.5 in Male NPT
1213091 Capsule filter NON sterile PP 0.2 µm surface 5.9 ft² connectors 1.5 in sanitary flange
1213596 Capsule filter NON sterile PP 0.4 µm surface 0.8 ft² connectors 0.25 in Male NPT
1212950 Capsule filter NON sterile PP 0.4 µm surface 0.8 ft² connectors 0.25–0.5 in stepped hose barb
1212930 Capsule filter NON sterile PP 0.4 µm surface 0.8 ft² connectors 0.5 in Male NPT
1212972 Capsule filter NON sterile PP 0.4 µm surface 0.8 ft² connectors 1.5 in sanitary flange
1213591 Capsule filter NON sterile PP 0.4 µm surface 0.8 ft² connectors 3/8 in hose barb
1213095 Capsule filter NON sterile PP 0.4 µm surface 5.9 ft² connectors 0.25 in Male NPT
1213611 Capsule filter NON sterile PP 1.2 µm surface 0.8 ft² connectors 0.25 in Male NPT
1212951 Capsule filter NON sterile PP 1.2 µm surface 0.8 ft² connectors 0.25–0.5 in stepped hose barb
1212932 Capsule filter NON sterile PP 1.2 µm surface 0.8 ft² connectors 0.5 in Male NPT
1213100 Capsule filter NON sterile PP 1.2 µm surface 5.9 ft² connectors 0.25 in Male NPT
1213101 Capsule filter NON sterile PP 1.2 µm surface 5.9 ft² connectors 0.5 in Male NPT
1213622 Capsule filter NON sterile PP 10 µm surface 0.8 ft² connectors 0.25 in Male NPT
1213621 Capsule filter NON sterile PP 10 µm surface 0.8 ft² connectors 3/8 in hose barb
1213081 Capsule filter NON sterile PP 10 µm surface 3.0 ft² connectors 3/8 in hose barb
1213617 Capsule filter NON sterile PP 25 µm surface 0.8 ft² connectors 0.25 in Male NPT
1220684 Capsule filter NON sterile PP 25 µm surface 3.0 ft² connectors 0.25 in Male NPT
1215179 Capsule filter NON sterile PP 25 µm surface 5.9 ft² connectors 0.5 in Male NPT
1213620 Capsule filter NON sterile PP 5 µm surface 0.8 ft² connectors 0.25 in Male NPT
1212953 Capsule filter NON sterile PP 5 µm surface 0.8 ft² connectors 0.25–0.5 in stepped hose barb
1212975 Capsule filter NON sterile PP 5 µm surface 0.8 ft² connectors 1.5 in sanitary flange
1213619 Capsule filter NON sterile PP 5 µm surface 0.8 ft² connectors 3/8 in hose barb
1213080 Capsule filter NON sterile PP 5 µm surface 3.0 ft² connectors 1.5 in sanitary flange
1213113 Capsule filter NON sterile PP 5 µm surface 5.9 ft² connectors 1.5 in sanitary flange
1213893 Capsule Filter, PP, 0.22 µm, 1/2NPTM, STERILE, 12.3, 1/Pk
1213941 Capsule Filter, PP, 0.22 µm, 1/4NPTM, STERILE, 3.5, 1/Pk

제품 이미지

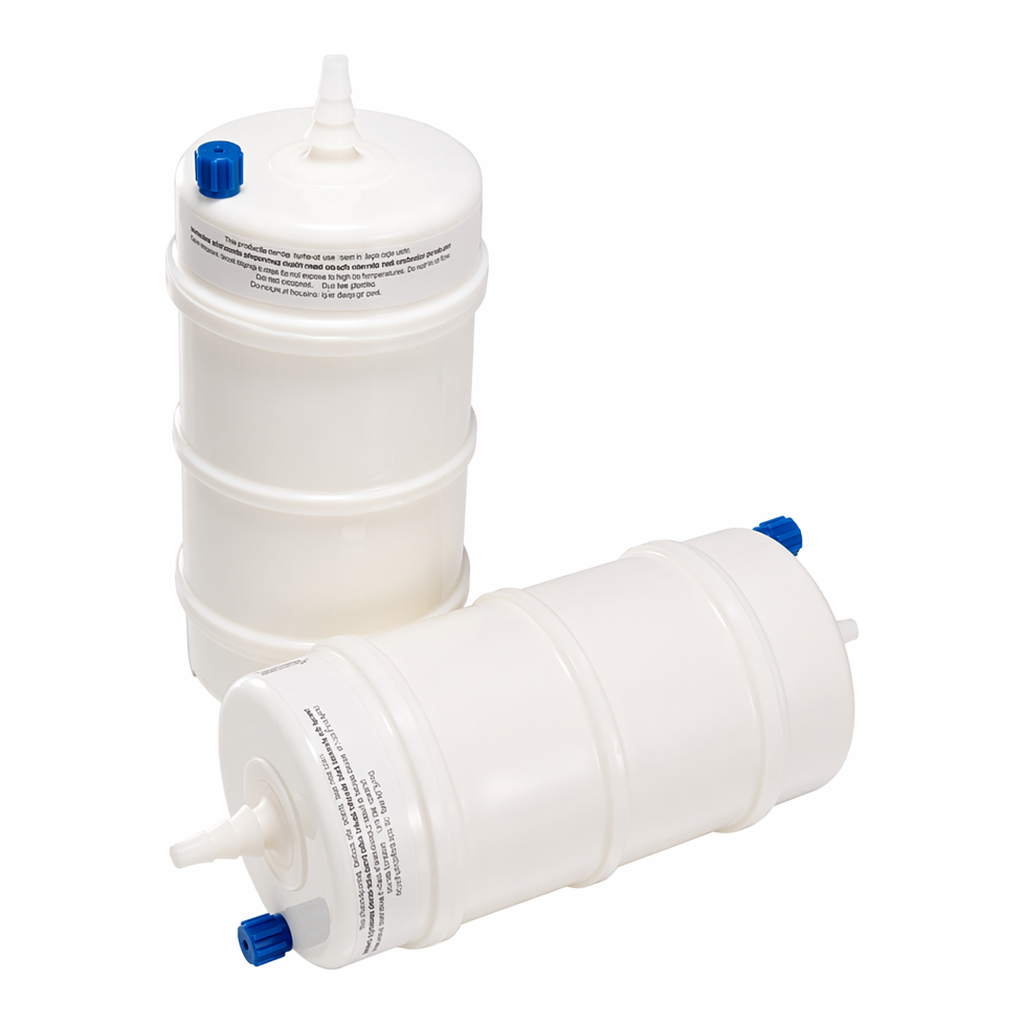

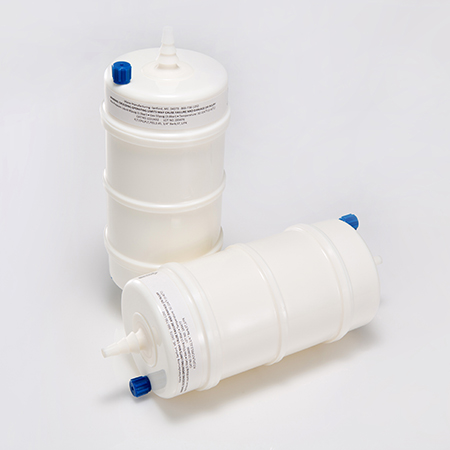

Polypropylene Capsule Filter
