Norgen Zika Virus (ZIKV) TaqMan RT-PCR Detection Kits
지카 바이러스(ZIKV) 검출용 TaqMan RT-PCR 키트로 신뢰성 높은 RNA 검출 가능. CE-IVD 인증 버전 제공. FAM/HEX 채널을 이용한 양성·음성·억제 반응 판별. 모든 구성품은 -20°C에서 1년간 안정 저장. 100회 반응용 세트 제공.
- 브랜드
- Norgen
- 카테고리
- RT PCR Kits
- 판매단위
- pk
카탈로그
2개 옵션 · 카탈로그 번호를 클릭하면 복사됩니다Norgen · Norgen Zika Virus (ZIKV) TaqMan RT-PCR Detection Kits

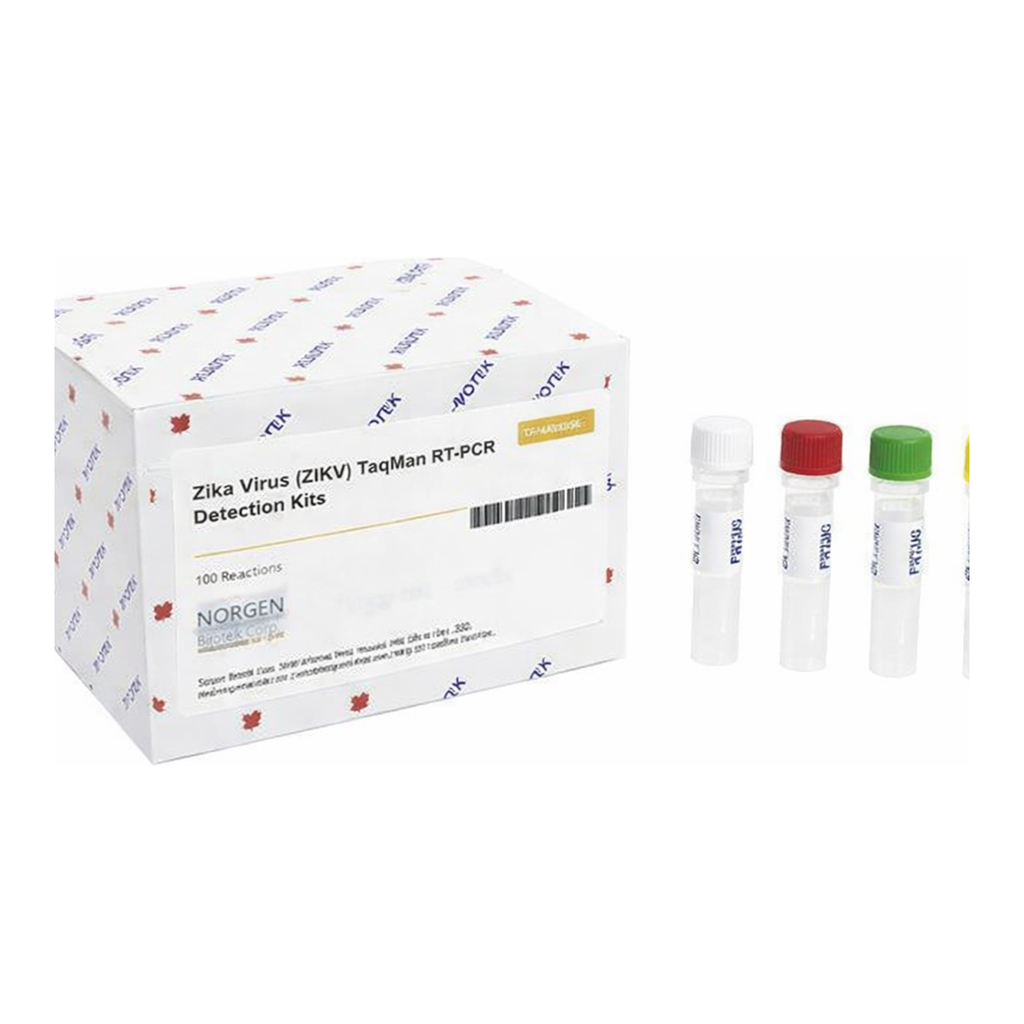

Norgen Zika Virus (ZIKV) TaqMan RT-PCR Detection Kits
SKU: TM62210
Features and Benefits
- Detection kits for ZIKV
- CE-IVD marked version available for in vitro diagnostic use
- Available in TaqMan format for analysis
The Zika Virus (ZIKV) is an emerging mosquito-borne virus first identified in Uganda in 1947 in Rhesus monkeys. During outbreaks in French Polynesia and Brazil, health authorities reported neurological and autoimmune complications. Laboratory diagnosis confirms ZIKV infection by detecting viral RNA in blood, urine, or saliva.
Product Options
ZIKV TaqMan RT-PCR Kit (100 reactions)
- Ready-to-use format including Master Mix and PCR control
- Specific Primer and Probe mix for ZIKV
- Positive and negative controls included
- Ensures PCR integrity and inhibition monitoring
ZIKV TaqMan RT-PCR Probe/Primer Set and Controls (100 reactions)
- Specific Primer/Probe mix and Positive Control for ZIKV
- Includes nuclease-free water
- Compatible with Norgen’s RT-PCR Master Mix (#28113) or customer-supplied mix
Storage Conditions
- Stable for 1 year after production without performance reduction
- Store all components at -20°C
| Component | Cat. TM62250 (100 preps) | Cat. TM62210 (100 preps) |
|---|---|---|
| MDx TaqMan 2X PCR Master Mix | 2 × 700 μL | - |
| ZIKV Primer & Probe Mix | 280 μL | 280 μL |
| ZIKV Positive Control | 150 μL | 150 μL |
| Nuclease-Free Water (Negative Control) | 1.25 mL | 1.25 mL |
| Product Insert | 1 | 1 |
Supporting Data
Figure 1. Example of TaqMan One-step RT-PCR Positive Result
Both PCR signals above the baseline from FAM and HEX channels indicate successful amplification.
그래프 정보:
- 상단 그래프: FAM channel
- X축: Cycles / Y축: RFU
- 하단 그래프: HEX channel
- X축: Cycles / Y축: RFU
두 채널 모두 “Amplification” 곡선을 표시하며, FAM(파란색)과 HEX(초록색) 형광 신호가 검출됨.
- X축: Cycles / Y축: RFU
Figure 2. Example of TaqMan One-step RT-PCR Negative Result
No target RNA detected in FAM channel; amplification signal from HEX indicates successful PCR.
그래프 정보:
- FAM channel: RFU 변화 거의 없음
- HEX channel: 약 25사이클 이후 RFU 급격히 증가
- X축 눈금: 0–40 / Y축 눈금: -100–900
Figure 3. Example of TaqMan One-step RT-PCR Inhibition Result
No signal from both FAM and HEX channels detected. Suggests repeating sample preparation using recommended RNA purification kit.
그래프 정보:
- 상단: FAM channel / 하단: HEX channel
- X축: Cycles / Y축: RFU
- 두 채널 모두 증폭 신호 없음
Figure 4. Detection of ZIKV using TaqMan One-step RT-PCR System
FAM channel indicates successful detection of ZIKV at different copy numbers (10⁹ to 10²).
그래프 정보:
- 그래프 제목: Amplification
- X축: Cycles / Y축: RFU
Documentation
Protocols
Safety Data Sheets
Related Products
- Zika Virus (ZIKV) TaqMan RT-PCR Kit Dx
- Zika Virus (ZIKV) TaqMan Probe/Primer and Control Set
- Total RNA Purification Kit
