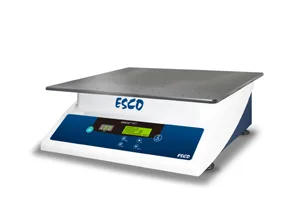

OrbiCult™ Benchtop Ambient Shaker

The Orbicult™ Benchtop Ambient Shaker features an outstanding drive mechanism, which guarantees excellent performance during cell culture. Its other features include use in heavy duty and high speeds applications, low maintenance requirement, wide range of accessories, user friendly, audible and visible alarms, CO2 resistant option, and powder-coated external surfaces.

Long term reliability with excellent performance:

• *TriDrive™: *Esco’s unique triple-eccentric counterbalanced drive supports heavy duty and high speed applications.
• *RobustDrive™: *This mechanism eliminates the need for lubrication as the Brushless DC Motor reduces maintenance.
• *SmartRun™: *Excellent out-of-balance sensor and propriety imbalance compensation algorithm adjust the optimum revolutions per minute (rpm) to ensure smooth operation without any vibration.
• Data are saved even after power failure.

Flexibility and Versatility

• Apt to fit any application required for your operation.
• Offers multiple choice of accessories which allow to customize and meet the appropriate application.
• Two types of orbit (19 mm and 25 mm) that meets different application.
• Incorporated with a programmable design with a memory that can store up to 25 programs` each programs are capable of 25 unique time – based steps.

User-Friendly Control System

• Easy-to-use design enables to set parameter precisely.
• Historical settings can easily track and review from the touchscreen.
• Audible and visible alarm every end run.

Built for Safety

• Audible and visible alarms alert any speed and temperature deviations.
• Shaker automatically restarts after power interruption for the non-volatile program saved in the memory.
• Each shaker is individually factory tested for performance assurance in accordance with international standards.
• External surfaces are powder coated with Esco ISOCIDE™ to eliminate 99.9% of surface bacteria within 24 hours exposure.

CO2 Resistance Option

• Designed with material resistance components that adapt in CO2 and humid environment that assures AS-1-CO2 resistance model to have long-term worry-free operation.
• Suitable cells incubation application. AS-1-c serires fit in Esco 170 L and 240 L CelCulture® and CelMate® series CO2 incubator.

TECHNICAL SPECIFICATION
MODEL	AS-1-NC-19	AS-1-NC-25	AS-1-C-19	AS-1-C-25
Orbit	19mm (0.7")	25mm (1.0")	19mm (0.7")	25mm (1.0")
Speed	15-575 rpm
rpm Accuracy	+ 1
Display	Digital LED and 4 line LCD message center
Timer	9999 minutes
Interchangeable Platform and Platform Size	P1, 330 x 330 mm (13.0" x 13.0") P3, 457 x 457 mm (18.0" x 18.0") P4, 457 x 610 mm (18.0" x 24.0")
Maximum Load	30 kg (66.1lbs)	25 kg (55.1 lbs)	30 kg (66.1lbs)	25 kg (55.1 lbs)
External Dimension (W x D x H)	458 x 422 x 184 mm (18.0" x 16.6" x 7.2")
Net Weight	23 kg (50.7 lbs)	23 kg (50.7 lbs)	27 kg (59.5 lbs)	27 kg (59.5 lbs)
CO2 Resistance	No		Yes
Cover Material	UL 94 Flammability Standard, V-) requirement made of ABS plastic
Base Construction	3.0 mm (0.1") 18 gauge EG Steel with IsocideTM antimicrobial powder coating
Shipping Weight	27 kg (59.5 lbs)
Shipping Dimension (W x D x H)	650 x 660 x 450 mm (26.0" x 25.6" x 17.7")
Shipping Volume, Maximum	0.2 mm3 (7.1 cu. Ft.)

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Universal Platforms – have standard holes pattern that can fit any flask clamps and test tube racks. All multiple flask clamps and labware holders are shipped separately and installed by the end user

Platform List (Universal)
Item Code	Item Name	Description	Flask Clamp Capacity Guide
25ml	50ml	125ml	250ml	300ml	500ml	1L	2L	2.8L	3L	4L	5L	6L
5270016	P1 Platform Universal	330 x 330 mm (13.0" x 13.0")	36	36	13	9	9	9	4	4	1	1	1	1	1
5270017	P3 Platform Universal	457 x 457 mm (18.0" x 18.0")	64	64	32	16	16	16	8	5	4	4	4	4	2
5270018	P4 Platform Universal	457 x 610 mm (18.0" x 24.0")		70	35	20	20	20	12	8	5	5	5	4	3

Dedicated Platforms – platforms have a customized pattern to optimize the number of a particular size of flask clamp on a platform. Dedicated platforms are pre-installed with the flask clamps.

Platform List (Dedicated)
Item Code	Item Name	Description	Flask Clamp Capacity
5270019	P1 Platform Dedicated 25ml	330 x 330 mm (13.0" x 13.0") for 25ml Flask	36
5270020	P1 Platform Dedicated 50ml	330 x 330 mm(13.0" x 13.0") for 50ml Flask	36
5270021	P1 Platform Dedicated 125ml	330 x 330 mm (13.0" x 13.0") for 125ml Flask	16
5270022	P1 Platform Dedicated 250ml	330 x 330 mm (13.0" x 13.0") for 250ml Flask	10
5270023	P1 Platform Dedicated 300ml	330 x 330 mm (13.0" x 13.0") for 300ml Flask	10
5270024	P1 Platform Dedicated 500ml	330 x 330 mm (13.0" x 13.0") for 500ml Flask	9
5270025	P1 Platform Dedicated 1L	330 x 330 mm (13.0" x 13.0") for 1L Flask	5
5270026	P1 Platform Dedicated 2L	330 x 330 mm (13.0" x 13.0") for 2LFlask	4
5270027	P1 Platform Dedicated 2.8L	330 x 330 mm (13.0" x 13.0") for 2.8L Flask	1
5270028	P1 Platform Dedicated 3L	330 x 330 mm (13.0" x 13.0") for 3L Flask	1
5270029	P1 Platform Dedicated 4L	330 x 330 mm (13.0" x 13.0") for 4L Flask	1
5270030	P1 Platform Dedicated 5L	330 x 330 mm (13.0" x 13.0") for 5L Flask	1
5270031	P1 Platform Dedicated 6L	330 x 330 mm (13.0" x 13.0") for 6L Flask	1
5270032	P3 Platform Dedicated 25ml	457 x 457 mm (18.0" x 18.0") for 25ml Flask	64
5270033	P3 Platform Dedicated 50ml	457 x 457 mm (18.0" x 18.0") for 50ml Flask	64
5270034	P3 Platform Dedicated 125ml	457 x 457 mm (18.0" x 18.0") for 125ml Flask	32
5270035	P3 Platform Dedicated 250ml	457 x 457 mm (18.0" x 18.0") for 250ml Flask	16
5270036	P3 Platform Dedicated 300ml	457 x 457 mm (18.0" x 18.0") for 300ml Flask	16
5270037	P3 Platform Dedicated 500ml	457 x 457 mm (18.0" x 18.0") for 500ml Flask	16
5270038	P3 Platform Dedicated 1L	457 x 457 mm (18.0" x 18.0") for 1L Flask	8
5270039	P3 Platform Dedicated 2L	457 x 457 mm (18.0" x 18.0") for 2L Flask	5
5270040	P3 Platform Dedicated 2.8L	457 x 457 mm (18.0" x 18.0") for 2.8L Flask	4
5270041	P3 Platform Dedicated 3L	457 x 457 mm (18.0" x 18.0") for 3L Flask	4
5270042	P3 Platform Dedicated 4L	457 x 457 mm (18.0" x 18.0") for 4L Flask	4
5270043	P3 Platform Dedicated 5L	457 x 457 mm (18.0" x 18.0") for 5L Flask	4
5270044	P3 Platform Dedicated 6L	457 x 457 mm (18.0" x 18.0") for 6L Flask	2
5270046	P4 Platform Dedicated 50ml	457 x 610 mm (18.0" x 24.0") for 50ml Flask	80
5270047	P4 Platform Dedicated 125ml	457 x 610 mm (18.0" x 24.0") for 125ml Flask	48
5270048	P4 Platform Dedicated 250ml	457 x 610 mm (18.0" x 24.0") for 250ml Flask	35
5270049	P4 Platform Dedicated 300ml	457 x 610 mm (18.0" x 24.0") for 300ml Flask	35
5270050	P4 Platform Dedicated 500ml	457 x 610 mm (18.0" x 24.0") for 500ml Flask	20
5270051	P4 Platform Dedicated 1L	457 x 610 mm (18.0" x 24.0") for 1L Flask	12
5270052	P4 Platform Dedicated 2L	457 x 610 mm (18.0" x 24.0") for 2L Flask	6
5270053	P4 Platform Dedicated 2.8L	457 x 610 mm (18.0" x 24.0") for 2.8L Flask	5
5270054	P4 Platform Dedicated 3L	457 x 610 mm (18.0" x 24.0") for 3L Flask	5
5270055	P4 Platform Dedicated 4L	457 x 610 mm (18.0" x 24.0") for 4L Flask	5
5270056	P4 Platform Dedicated 5L	457 x 610 mm (18.0" x 24.0") for 5L Flask	4
5270057	P4 Platform Dedicated 6L	457 x 610 mm (18.0" x 24.0") for 6L Flask	4

• Flask Clamps – Single piece stainless steel clamps that provide enough strength and security to hold flasks.
• Test Tube Racks – Stainless steel rack that stabilizes and hold test tubes.
• Microplate Holder – Double layer racks that hold up to six standard deep well plates.
• ** Utility Carrier –** Made of stainless steel that holds different glassware in between of adjustable stainless steel bars.
• Sticky Mats – Allows the user to place the flask directly on the mat without the use of a clamp. Sticky mats are very convenient if the user desires to rotate at less than 350rpm. This can be ordered separately and attach on Universal Platform.
