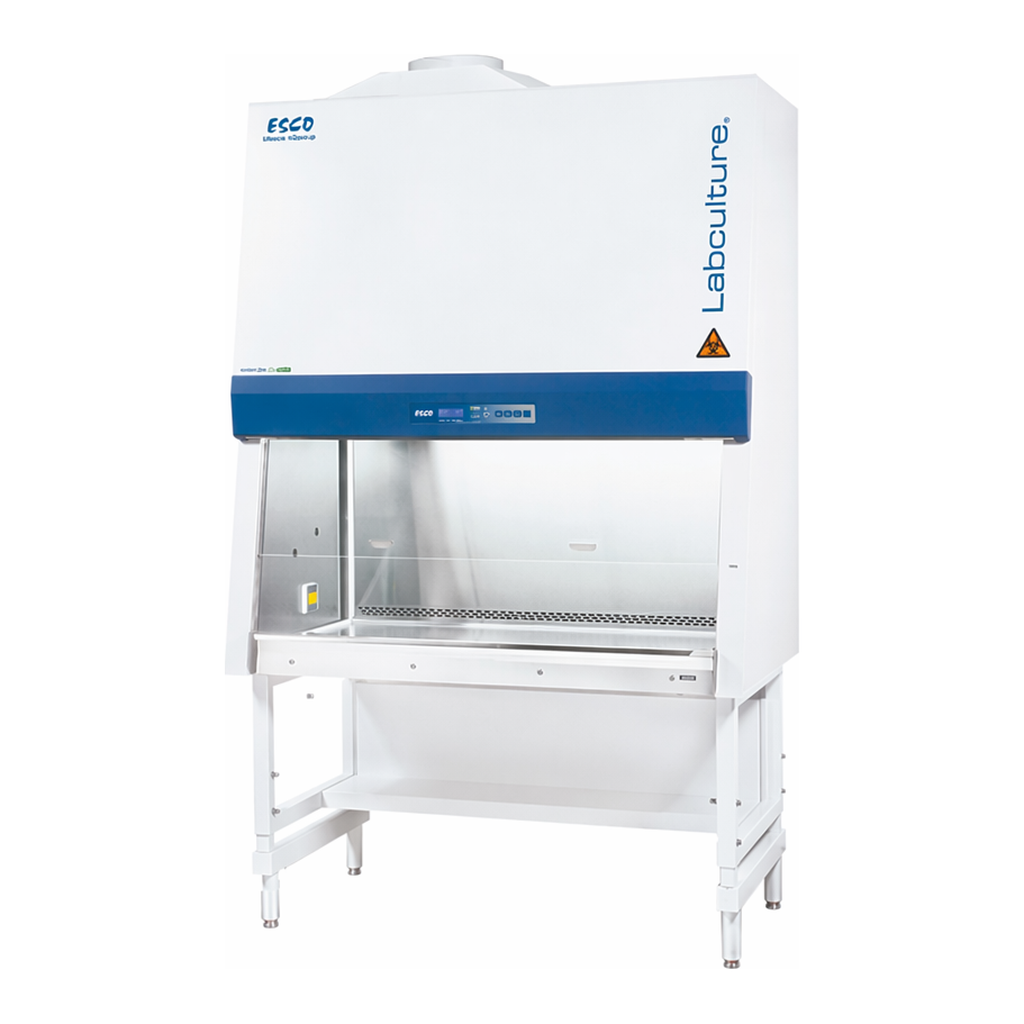

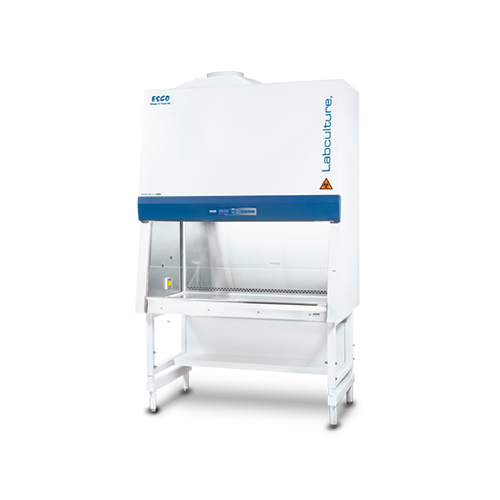

Labculture® Class II Type B1 Biological Safety Cabinet (E-Series)

The Energy Efficient, Safe and Ergonomic Biological Safety Cabinet

Incorporating all the latest design features available on Esco`s NSF-listed Labculture® Class II Type A2 Biosafety Cabinet, Labculture® Class II Type B1 Biosafety Cabinets are designed to provide operator, products and environmental protection in experiments where minute quantities of volatile toxic chemicals and trace amount of radionuclides are required as an adjunct to microbiological studies.

Key Benefits

• Energy efficient, using the latest generation DC ECM motor

• Ergonomic, featuring arm rest, angled front, and ADA-compliant

• Compliant to NSF 49

• Features

• Models

• Accessories

• Powered by the latest generation DC ECM Motor that is more efficient than legacy ECM and VFD motors.

• Negative pressure plenum surrounds contaminated positive pressure plenum, no fabric bags are used

• ULPA filters (per IEST-RP-CC001.3) or H14 (per EN 1822) with 99.999% efficiency which creates ISO Class 3 work zone instead of industry-standard ISO Class 5.

• Coved one-piece work surface contains spillage. The absence screws or connectors in the work zone facilitates ease of cleaning and decontamination

• One-piece back wall with radiused cove corners to ensure thorough cleaning and decontamination

• Angled supply filter matches cabinet profile to achieve best downflow uniformity

• Esco SentinelTM Gold Microprocessor with large blue LCD, which simultaneously shows all safety parameters on a single screen

• Quickstart mode, to turn the blower and lights on/off, by moving the sash window to correct position

• RS 232 data output port enables remote monitoring of cabinet operating parameters

• Esco ISOCIDETM antimicrobial coating on all painted surfaces minimizes contamination

• Ergonomically angled front improves reach and comfort

• Angled down display and control pad that`s ADA-compliant

• Raised airflow grille maintains safety by preventing blockage

• Esco ISOCIDETM antimicrobial coating on all painted surfaces minimizes contamination

• Enhanced side-captured zones optimize containment

Model No.	Externam Dimensions	Internal Dimensions	Airflow Velocity (Inflow)	Airflow Velocity (Downflow)	Electrical
LB1-4B2-E	1420 x 927 x 2250 mm (55.9” x 36.5” x 88.6”)	1270 x 623 x 715 mm (55.9” x 36.5” x 60.6”)	0.53 m/s (105 fpm)	0.30 m/s (60 fpm)	110 - 130 VAC, 50 / 60 Hz

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Support Stands

• Fixed height, available 711 mm (28") or 864 mm (34")
  • With casters
• Adjustable height, hydraulic range 711 mm to 762mm (28" to 30") or 864 mm (34")
  • With leveling feet
• Telescoping Feet Stand, Manually Adjustable 711mm to 914mm (28" to 36") by Pins.
• Hydraulic Stand, Electrically Adjustable 711mm to 914mm (28" to 36")

Electrical Outlets and Utility Fixtures

• Universal Service Fixture Kit (Air, Gas, Vacuum)
• Thimble exhaustion
• Air tight damper9.8" x 9.8" (D x H) Fits inside 10" duct

Cabinet Accessories

• Anti Blow Back Valve
  • Automatically shuts duct, preventing back flow in the duct, 10" diameter
• Plastic decontamination bag for formalin decontamination on all BSC
• Air tight cable port, installed on the right side wall
• PVC armrest
  • Improves operator comfort, easy-to-clean. 712mm (28") standard size.
• Ergonomic foot rest
  • Angled, helps maintain proper posture.
  • Adjustable from 3" to 11" in 1:increment.
  • Black rubber matte.
• IV bar, with hooks
  • Maximum load is 6Kg. (13lbs)
• Microscope viewing device
  • Factory installed` specify when ordering.

Features

• Powered by the latest generation DC ECM Motor that is more efficient than legacy ECM and VFD motors.
• Negative pressure plenum surrounds contaminated positive pressure plenum, no fabric bags are used
• ULPA filters (per IEST-RP-CC001.3) or H14 (per EN 1822) with 99.999% efficiency which creates ISO Class 3 work zone instead of industry-standard ISO Class 5.
• Coved one-piece work surface contains spillage. The absence screws or connectors in the work zone facilitates ease of cleaning and decontamination
• One-piece back wall with radiused cove corners to ensure thorough cleaning and decontamination
• Angled supply filter matches cabinet profile to achieve best downflow uniformity
• Esco SentinelTM Gold Microprocessor with large blue LCD, which simultaneously shows all safety parameters on a single screen
• Quickstart mode, to turn the blower and lights on/off, by moving the sash window to correct position
• RS 232 data output port enables remote monitoring of cabinet operating parameters
• Esco ISOCIDETM antimicrobial coating on all painted surfaces minimizes contamination
• Ergonomically angled front improves reach and comfort
• Angled down display and control pad that`s ADA-compliant
• Raised airflow grille maintains safety by preventing blockage
• Esco ISOCIDETM antimicrobial coating on all painted surfaces minimizes contamination
• Enhanced side-captured zones optimize containment

Models

Model No.	Externam Dimensions	Internal Dimensions	Airflow Velocity (Inflow)	Airflow Velocity (Downflow)	Electrical
LB1-4B2-E	1420 x 927 x 2250 mm (55.9” x 36.5” x 88.6”)	1270 x 623 x 715 mm (55.9” x 36.5” x 60.6”)	0.53 m/s (105 fpm)	0.30 m/s (60 fpm)	110 - 130 VAC, 50 / 60 Hz

Accessories

Esco offers a variety of options and accessories to meet local applications. Contact Esco or your local Sales Representative for ordering information.

Support Stands

• Fixed height, available 711 mm (28") or 864 mm (34")
  • With casters
• Adjustable height, hydraulic range 711 mm to 762mm (28" to 30") or 864 mm (34")
  • With leveling feet
• Telescoping Feet Stand, Manually Adjustable 711mm to 914mm (28" to 36") by Pins.
• Hydraulic Stand, Electrically Adjustable 711mm to 914mm (28" to 36")

Electrical Outlets and Utility Fixtures

• Universal Service Fixture Kit (Air, Gas, Vacuum)
• Thimble exhaustion
• Air tight damper9.8" x 9.8" (D x H) Fits inside 10" duct

Cabinet Accessories

• Anti Blow Back Valve
  • Automatically shuts duct, preventing back flow in the duct, 10" diameter
• Plastic decontamination bag for formalin decontamination on all BSC
• Air tight cable port, installed on the right side wall
• PVC armrest
  • Improves operator comfort, easy-to-clean. 712mm (28") standard size.
• Ergonomic foot rest
  • Angled, helps maintain proper posture.
  • Adjustable from 3" to 11" in 1:increment.
  • Black rubber matte.
• IV bar, with hooks
  • Maximum load is 6Kg. (13lbs)
• Microscope viewing device
  • Factory installed` specify when ordering.
