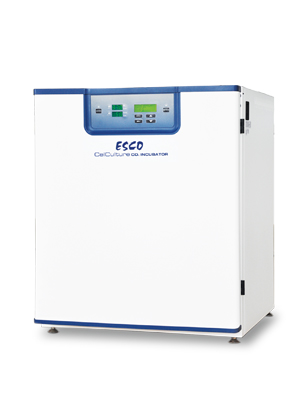

CelCulture® CO2 Incubator

CelCulture® CO2 Incubator

The CelCulture® CO2 Incubator is widely used for the growth and maintenance of cells used in bioprocessing research. It has been designed to provide superior protection and an optimal environment for cells in various culture vessels, including CelCradle™, T-flasks, culture plates, and roller bottles.

VivoCell™ Precise Temperature, CO2 Control and High Humidity

• Best uniformity and control among competition
• Fast CO2, temperature and humidity recovery without overshoot
• Direct heat design for rapid recovery, with 8 heaters grouped into 3 zones
• Air jacket provides isolation against ambient temperature fluctuations
• VentiFlow™ forced convection accelerates recovery of chamber air to ISO Class 5 cleanliness after door closing to prevent contamination
• Filtered air circulates across water pan to accelerate humidifying process
• Air flows gently around culture plates, causing no disturbance to cell culture
• Blower automatically stops when door is opened, minimizing mixing of chamber and room air

CelSafe™ Contamination Control System

• SteriSafe™ ULPA filtration maintains ISO Class 5 air quality inside the chamber
• SwiftCon™ moist heat 90°C decontamination cycle eradicates contamination overnight; chamber is dry and ready to use after cycle
• All input gases filtered by in-line filters to remove impurities
• Main body made from electro-galvanized steel with Esco’s ISOCIDE antimicrobial coating
• Interior chamber made from stainless steel type 304

User-friendly Software Interface

• User-configurable alarms for all parameters
• CelAlert™ alarm system reminds user to replace CO2 tank and ULPA filter
• Intelligent data and event logger for on-screen recall
• 16 MB built-in flash memory for long-term data storage
• Diagnostic interface and online quick help
• RS485 data output

Easy-to-Clean

• Stainless steel chamber with rounded corners
• Ductwork, plenums, and shelves removable without tools
• Glass door removable without tools
• Inner gasket removable without tools

Easy-to-Service

• Diagnostic functions include historical read-out of parameters
• Service accessible from top/front
• Esco electronics and sensors designed to be drift-free, minimizing calibration needs

---

Models

IR Sensor Model with Stainless Steel Chamber

Model	Description
CCL-050B-8	50 L, IR Sensor, CO2 Control, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-050B-9	50 L, IR Sensor, CO2 Control, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-170B-8	170 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-170B-8-NF	170 L, IR Sensor, CO2 Control, Moist Heat Decon, 230 VAC 50/60 HZ (No ULPA Filter)
CCL-170B-9	170 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-170B-9-NF	170 L, IR Sensor, CO2 Control, Moist Heat Decon, 115 VAC 50/60 HZ (No ULPA Filter)
CCL-240B-8	240 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-240B-8-NF	240 L, IR Sensor, CO2 Control, Moist Heat Decon, 230 VAC 50/60 HZ (No ULPA Filter)
CCL-240B-9	240 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-240B-9-NF	240 L, IR Sensor, CO2 Control, Moist Heat Decon, 115 VAC 50/60 HZ (No ULPA Filter)

Suppressed O2 Model with Stainless Steel Chamber

Model	Description
CCL-050T-8	50 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-050T-9	50 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-170T-8	170 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-170T-8-NF	170 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 230 VAC 50/60 HZ (No ULPA Filter)
CCL-170T-9	170 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-170T-9-NF	170 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 115 VAC 50/60 HZ (No ULPA Filter)
CCL-240T-8	240 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-240T-8-NF	240 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 230 VAC 50/60 HZ (No ULPA Filter)
CCL-240T-9	240 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-240T-9-NF	240 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 115 VAC 50/60 HZ (No ULPA Filter)

IR Sensor Model with 100% Copper Chamber

Model	Description
CCL-050B-8Cu	50 L, IR Sensor, CO2 Control, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-050B-9-Cu	50 L, IR Sensor, CO2 Control, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-170B-8-Cu	170 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-170B-9-Cu	170 L, IR Sensor, CO2 Control, ULPA Moist Heat Decon, 115 VAC 50/60 HZ
CCL-240B-8-Cu	240 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-240B-9-Cu	240 L, IR Sensor, CO2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ

Suppressed O2 Model with 100% Copper Chamber

Model	Description
CCL-050T-8-Cu	50 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-050T-9-Cu	50 L, IR Sensor, CO2 Control, O2 Control, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-170T-8-Cu	170 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-170T-9-Cu	170 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ
CCL-240T-8-Cu	240 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 230 VAC 50/60 HZ
CCL-240T-9-Cu	240 L, IR Sensor, CO2 Control, O2 Control, ULPA, Moist Heat Decon, 115 VAC 50/60 HZ

---

Options

Type	Value
COA-1001	Humidity Display, Factory Installed
COA-1001-F	Humidity Display, Field Install Kit
COA-1002	CO2 Backup (Tank Switcher), Factory Installed
COA-1002-F	CO2 Backup (Tank Switcher), Field Installed
COA-1004	Reversed Door Swing, Factory Installed
COA-1005	Analog Outputs, Factory Installed
COA-1005-F	Analog Outputs, Field Installed
COA-1006	Sealed Inner Door Kit for 170L (4 Glass Doors with Latches), Factory Installed
COA-1006-F	Sealed Inner Door Kit (4 Glass Doors with Latches), Field Installed
COA-1007	N2 Backup (Tank Switcher), Factory Installed
COA-1007-F	N2 Backup (Tank Switcher), Factory Installed

---

Accessories

Type	Value
COA-2018-F	Roller Base (50L)
COA-2001-F	Roller Base (170L)
COA-2019-F	Roller Base (240L)
COA-2020-F	Floor Stand 200mm (8.0") with Adjustable Feet (50L)
COA-2002-F	Floor Stand 200mm (8.0") with Adjustable Feet (170L)
COA-2021-F	Floor Stand 200mm (8.0") with Adjustable Feet (240L)
COA-2022-F	Floor Stand 700mm (27.6") with Casters (50L)
COA-2003-F	Floor Stand 700mm (27.6") with Casters (170L)
COA-2023-F	Floor Stand 700mm (27.6") with Casters (240L)
COA-2005-F	2-Stage Gas Regulator for CO2/N2. Choose one connector: 1080588 (CGA 320, US), 1080589 (BP-BS34-#8-NT4, British), 1080590 (G5/8-RH, China)
COA-2024-F	Extra Shelf (50L, Stainless Steel)
COA-2007-F	Extra Shelf (170L, Stainless Steel)
COA-2025-F	Extra Shelf (240L, Stainless Steel)
COA-2008-F	Stacking Kit (Included with every unit)
COA-2010-F	Electronic CO2 Analyzer (with Temp Probe)
COA-2016-F	Electronic CO2 + O2 Analyzer (with Temp Probe)
COA-2017-F	Electronic CO2 + O2 + RH Analyzer (with Temp Probe)
COA-2011-F	IQ/OQ Documentation
COA-2012-F	6" Chart Recorder, Temp, 115/230VAC 50/60HZ
COA-2013-F	8" Chart Recorder, Temp/Temp, 115/230VAC 50/60HZ
COA-2014-F	6" Chart Recorder, Temp/RH, 115/230VAC 50/60HZ
COA-2015-F	Inner Door Shelving Kit (4 Sets, 12 Mini Shelves)
COA-2026-F	Extra Shelf (50L, Solid Copper)
COA-2027-F	Extra Shelf (170L, Solid Copper)
COA-2028-F	Extra Shelf (240L, Solid Copper)
5250001	Voyager Software Kit

---
