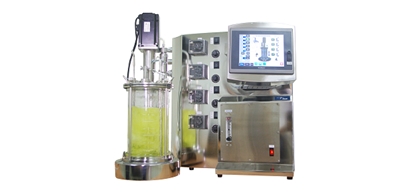

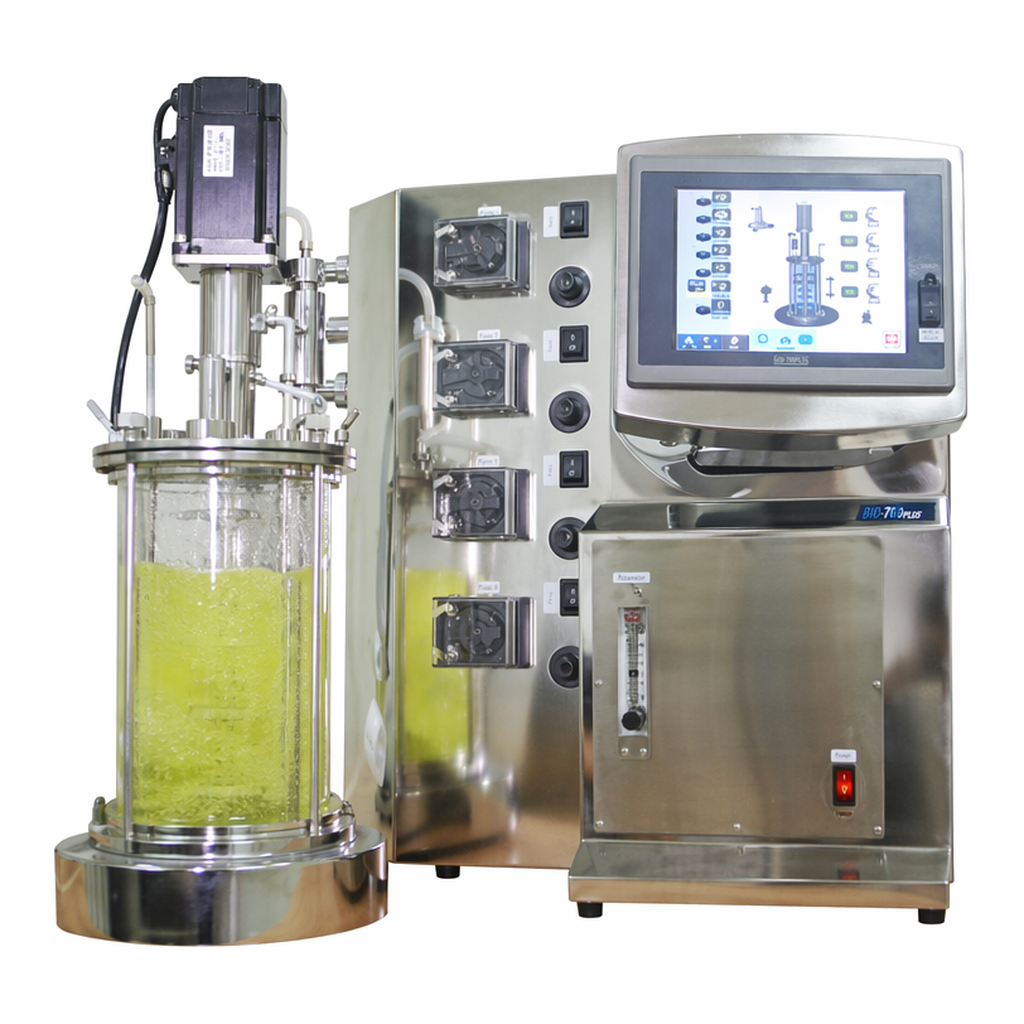

StirCradle™

StirCradle is a desk-type bioreactor/fermenter for microorganism culture. By combining the vessel, workbench, controller and peristaltic pumps into one integrated system, this patented system effectively provides the most capacity for a small footprint. The StirCradle is ideal for research and development involving microorganism or animal and plant cell cultures.

• The patented design of the mixing system optimizes DO control during high density culturing

• Can be used with oxygen enrichment devices and/or multiple gas devices to achieve ideal gas mix for cell culture

• Vessel can be easily changed to suit different applications

• Light weight and small footprint vs similar competitor models

• Patented chassis thermal loop interchange design to provide the best temperature control

• Four (4) built-in peristaltic pumps (with option to add up to 3 more) with assignable functions.

• Two integrated USB port for ease of saving online data to external memory eliminating the need for a dedicated PC.

• Datalog can record for up to 25 days with one (1) or two (2) minute/s intervals for all parameters.

• 8”TFT Full ColorTouch Screen for Human-Machine Interface with easily replaceable panel membrane

• Able to save up to 20 customized culture settings (with 50 culture conditions each)

• Equipped with an easy-to-detach stainless steel condenser for easy cleaning

• Can connect to downstream processing equipment to obtain high concentration of desired product

• Exhaust gas analyzer can be connected to the internet for online monitoring

• Free remote monitoring App viewable in smartphones, tablets, laptops or PCs (static IP address required)

• Research and Development

• Biopharmaceuticals

• Proteomics

• Laboratory-scale productions

Powerful Internal Memory for Data log

• Real time data logging
• Continuous recording up to 25 days with either 1 minute or 2 minutes interval per recording
• Zoom in/out option
• Integrated USB port for saving .xls files to external memory for data analysis and reports

Ergonomic HMI monitor

• The angle of the HMI monitor can be adjusted to provide a comfortable working environment for the operator

Safe and Durable Vessel

• Vessel glass is made of either PYREX (U.S.) or SCHOTT (Germany) material.
• Rigid, heat-proof, acid-proof and alkali-proof
• Vessel base and support is made of stainless steel (SS316) that undergoes three manual polishing and electrolysis polishing (Ra<0.42µm)
• The internal base of the vessel is designed with an arc to eliminate stagnation zone making it effective for culturing fungus or hypha.

Safe and Easy-to-store Heating Plate

• Bottom heating plate has an integrated overheat protection and will not get hot when misused
• The size of the heating plate is so small that it can fit into a medicine cabinet easily

User Friendly Interface

• Dynamic and interactive display for easy retention and reduced operator error
  • Real-time actuation with illustrated graphic effect
  • Real-time data display and recording

Various Impellers for Your Every Need

• System can be equipped with 12 different impellers
• Impellers can be applied with anti-stick coating if required
• 1-1,200 operating rpm provides a wide range of culture shearing force
• Patented Down Suction Distributed Impeller increases the amount of dissolved oxygen

Safety of Operating Data

• User access is divided into eight (8) authority levels providing security to R&D or academic research data

Flexible Operation

• Six (6) sensor/probe ports are located on the head plate allowing the operator to choose the configurations for probes and sensors
• Four (4) assignable peristaltic pumps can be assigned for Acid, Alkaline, Feed or Anti-foam related activities. These pumps can be set as manual or automatic with adjustable speeds.

Easy Set-up and Maintenance

• The system is made of stainless steel providing rigidity and easy cleaning

• The 750w AC servo motor is brushless and maintenance free

• Easy set-up. Simply mount the servo motor on the guided motor shaft.

• Light weight and easily movable

• Temperature control

• Anti-foam conditions

• Speed control

• Feed conditions

• pH control

• DO control

• Air control

Model		StirCradle 5L	StirCradle 7.5L
Nominal Volume		5.0L	7.5L
Working Volume		1.3 ~ 4.0L	2 ~ 6.0L
Tank N.W.		9 kg	10.5 kg
Maximum Height (Consider Placing Autoclave)		460 mm (with condenser)	640 mm (with condenser)
Maximum Outer Diameter		196 mm	220 mm
** Agitation**	Drive	AC servo drive with automatic feedback system able to compensate for speed and torque
Range	1 ~ 1200 rpm (adjustable in increments of 1rpm)
Sensor	Optical coupler
Control	PID human-machine touch panel control
Mixing blades	Includes two sets of Turbine six-blade type mixing blade and one set of whipped wing. Other Impellers are optional
Display	Touch screen HMI dynamic display
** Oxygen Transfer Rate**		350 mM O2/L/Hr or higher
Temperature	Range	Cooling water +5 ? to 80 ° C ± 0.1 ° C, or when using an external cooling system +4 ? to 80 ° C. ± 0.1 ° C, rapid temperature changes 1 ? / min (25 ~ 45 ?)
Sensor	PT 100Ω
Control	PID human-machine touch panel control with automatic over-temperature protection
Ventilation	Flow Adjustment System	Mass flow meter. A reserved second gas port is available for additional gases such as oxygen, nitrogen, ammonia and other special gases
Air Flow	0~10.00 nL/min
Ventilation	Quick release air sparging to minimize the bubbles and effectively increase the OTR value
Filter	0.2μm PTFE Millipore
Exhaust System	Filter	0.2μm PTFE Millipore
Condensation	Stainless steel water-cooled condenser can be easily disassembled
pH	Set / Display Range	0~14.00 ±0.01
Control Mode	PID human-machine touch panel control. Gas or liquid can be selected as agent (ex, ammonia or liquid ammonia).
Electrode	Mettler Toledo / Ingold Type or Hamilton Type
DO	Setting Range	0~100.0% ±0.1
Display Range	0~200.0% ±0.1
Control Mode	PID human-machine touch panel control with programmable commands
Electrode	Mettler Toledo / Ingold Type or Hamilton Type (Can be shared)
Pump	Control	Manual or automatic control with adjustable speed. Can be installed with five different sizes of silicon tubes (0.5mm, 0.8mm, 1.2mm, 3.6mm, and 4.8mm diameter).
Display	0 to 100% speed adjustable, flow control
The Overall Size of	Wide	560mm
Depth	600mm
High	380mm
Power Supply		220VAC single-phase
*Display Screen *		8 "industrial grade touch panel. TFT LCD. 65,535 colored
Interface		Compatible RS232C standard communication interface for PC link control (Remote control), can also be changed into RS422 or RS485
Record Output		2 USB ports for saving data into external memory
