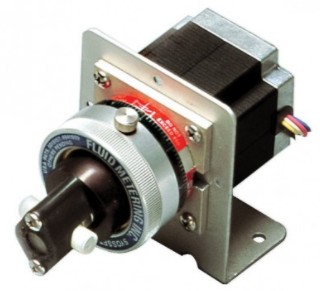

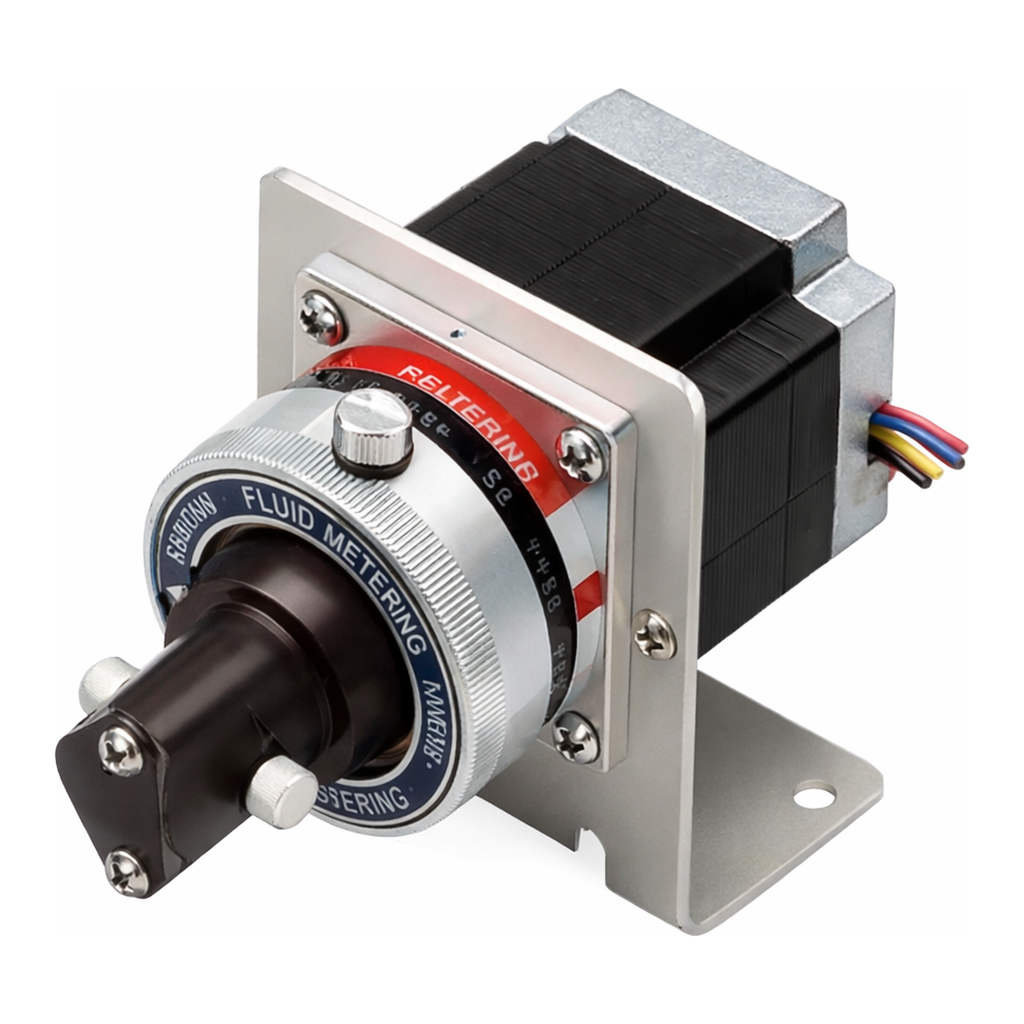

OEM-STRH-OEM 장비장착용 피스톤펌프(경제형)

OEM-STRH

OEM Precision Miniature Piston Pump
OEM 장비장착용 피스톤펌프 (경제형)

---

제품 설명 (Key Features)

• 스텝모터와 광센서 내장된 조절형 정밀피스톤펌프
• easy-grip flow ring을 통한 쉬운 유량 조절
• Sample, Dispense, Aspirate, Flush 기능 지원
• 밸브리스 방식으로 유지보수 용이
• 0–100 µL/stroke 조절 가능
• 내구성 및 재현성 우수

---

추가 정보

FLUID LEVELING

---

작동 범위 참고

-100%  0%  +100%

---

사양 (Specifications / Ordering Information)

Microliters/Revolution	Pump Ass'y	Wetted Parts
0–25 µL	STRH00ZKCLF	Zirconia / PVDF / Ceramic
0–50 µL	STRH0CKCLF	Ceramic / PVDF
0–100 µL	STRH1CKCLF	—

---

재질 설명 (Materials)

C — Ceramic

Ceramic is used in most of the pumps for piston and/or cylinder liners. Ceramic pistons may be used with ceramic and carbon cylinder liners. Ceramic cylinder liners can only be used with ceramic pistons.
Sapphire hard, fused crystalline Ceramic Al₂O₃, excellent chemical resistance, thermal stability, and mechanical resistance to common abrasives.
Caution: Subject to binding or freezing when stored after improper cleaning. Brittle and subject to fracture under sudden impact loading. Not suitable for very ‘dry’ fluids such as hexane.

K — Fluorocarbon (PVDF)

Fluorocarbon PVDF is used for some cylinder cases and tubing fittings. Autoclavable @ 240°F maximum. Good chemical tolerance to most fluids.
Caution: Sensitive to degrading effects of some organic solvents, esters, and ketones.

S — Stainless Steel 316

Stainless Steel 316 is used for some pistons, cylinder cases, and/or tube fittings. Not to be used as piston with ceramic cylinder liner. Excellent chemical and physical strength characteristics.
Caution: Subject to attack by some halides, strong acids, and bases. Subject to surface abrasion and wear in piston application.

---

응용 분야 (Applications)

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles

---

제품 이미지
