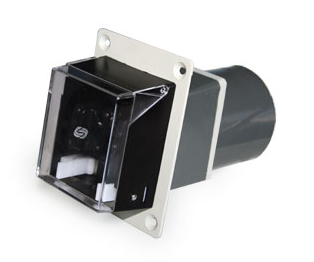

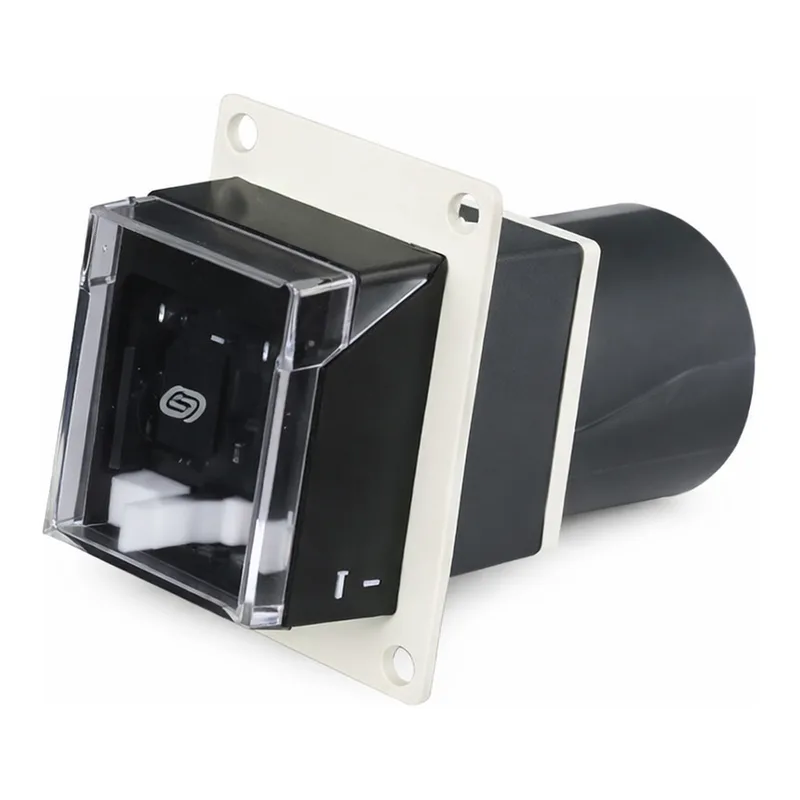

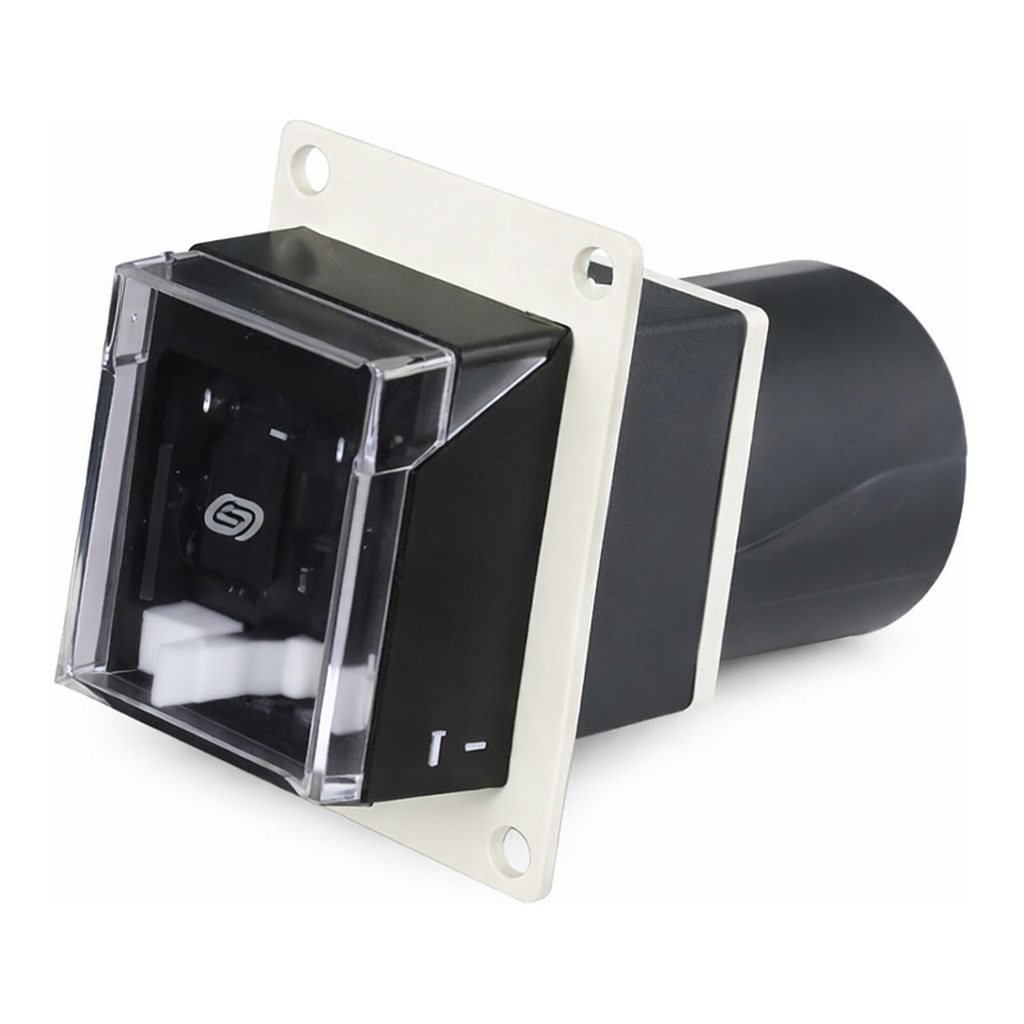

TH15 Type C-소형 튜브연동식 액체펌프

TH15 Type C

[OEM Peristaltic Pump]

: 소형 튜브연동식 액체펌프

---

제품 설명 [KEY FEATURES]

• Max : 1 채널
• 유량 범위 : 0.006 - 160 mL/m
• Compact Pump
• 지속적인 주입 가능(Continuous Infusion)

---

CATALOGUE DOWNLOAD

FEATURES

• Max : 1 채널
• 다양한 튜브 사용 가능 및 간편한 튜브 교체
• 유량 범위 : 0.006 - 160 mL/m
• 전압 : 12/24 VDC , 220 V

SPECIFICATIONS / **ODERING INFORMATIONS**

Fixed Speed Pump

Type	Motor	Power	Variable speed（rpm）
TH15 fixed speed	DC speed-down motor	12V/24V	10 20 40 80 100
	AC speed-down motor	220V/110V	7.5 15 30 60 100
	Synchronous motor	220V/110V	7.5 30 60 80 99

Variable Speed Pump

Type	Motor	Power	Variable speed（rpm）
TH15 variable speed	DC speed-down motor	12V/24V	15～100
	AC speed-down motor	220V/110V	20～100
	Stepper motor	12~40V	0.1～100

Speed(rpm)	Tube
	13#	14#	19#	16#	25#
10	0.6	2.2	4.78	8	17.42
20	1.2	4.4	9.56	16	34.83
40	2.4	8.8	19.11	32	69.67
80	4.8	17.6	38.22	64	139.34
100	6	21.67	47.78	80	174.17

APPLICATIONS

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles
