Lab Syringe Pump-정밀 주사기펌프

Lab Syringe Pump

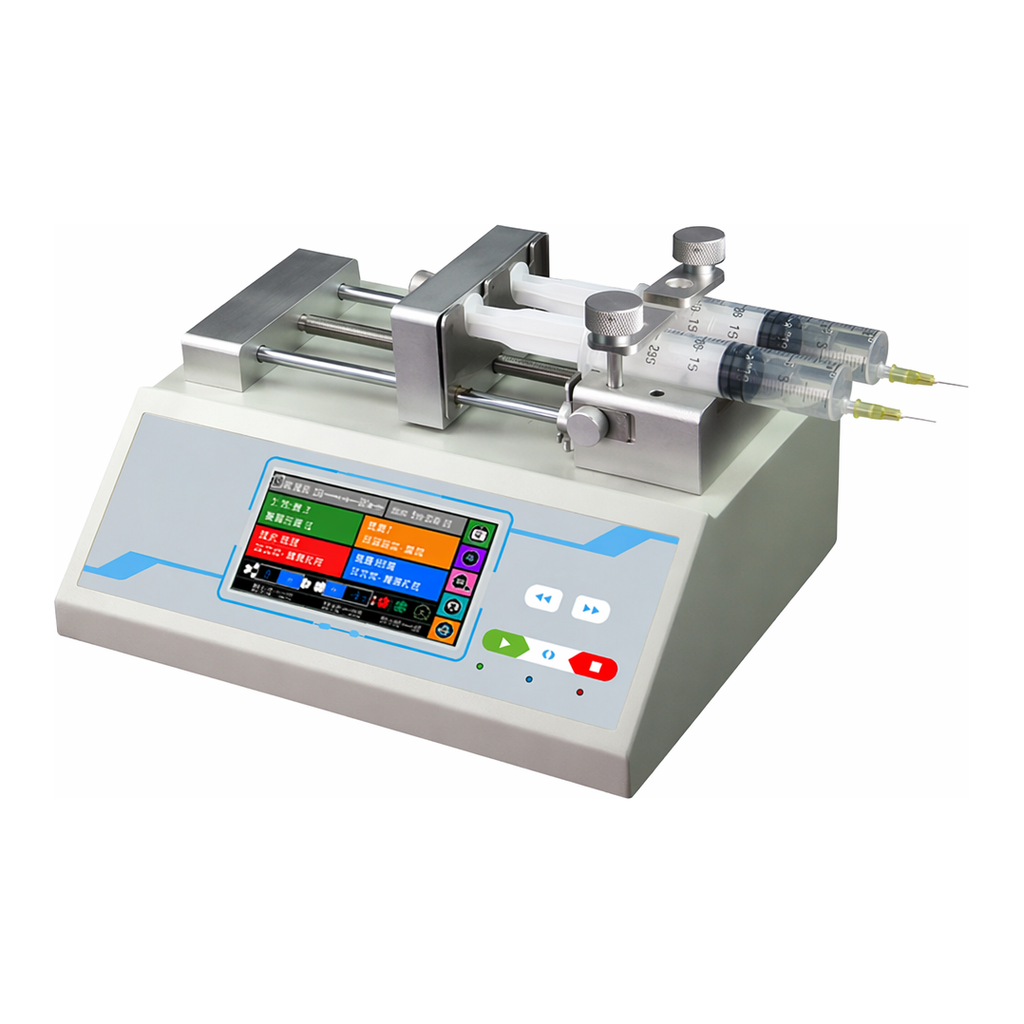

[Lab Precision Syringe Pump]

정밀 주사기펌프

---

제품 설명 [KEY FEATURES]

• Max : 1-10 채널
• 저소음, 무맥동
• 컬러 LCD 디스플레이 및 터치스크린 조작

---

FEATURES

• 컬러 LCD 디스플레이 및 터치스크린 조작
• Max : 1-10 채널
• 저소음, 무맥동
• 지속적인 주입 가능(Continuous Infusion)
• 정/역 방향, Full Speed, Start/Stop 가능
• 외부제어신호로 아날로그 제어 가능(0-5V, 0-10V, 4-20mA)
• RS-485 통신 및 MODBUS 지원

SPECIFICATIONS / **ODERING INFORMATIONS**

MODEL SPEC
	TYD01-01	TYD01-02	TYD02-01	TYD02-02	TYD02-04	TYD02-10	TYD03-01
Syringe Size	10 uL-60mL		10 uL-140mL		10uL-10mL		0.5-100uL
Work Mode	Infusion, Withdraw, Infusion/Withdraw, Withdraw/Infusion,   Continous
Channel Number	1	2	1	2	4	10	1
Stroke of Pump	110mm		140mm
Pusher advanceper Microstep	0.156 um/step						0.03125 um/ step
Linear Speed	1-150 um/min						0.2-3.0 um/min
Linear Resolution	1 um/min						0.2 um/min
Linear Force	>16KGF		>20 KGF				>16KGF
Thrust Regulation	1-100% arbitary adjustable
Syringe Selection	Built-in main manufacturers, the main model syringe to choose   can use custom syringe, direct input syringe size & diameter
Flow Calibration	Through the calibration procedure to obtain more accurate fluid   volume
Signal Output	1 road stop state, 1 state road direction
Signal Input	1 way down along the priming, 1 way down along the trigger to   stop
CommunicationInterface	RS485, MODBUS protocol
Power	AC90-264V/20W
WorkingTemperature	5 to 40 c

APPLICATIONS

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles
