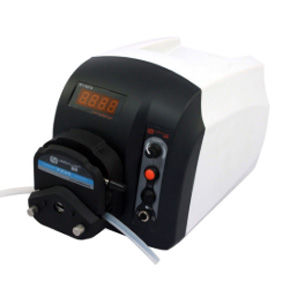

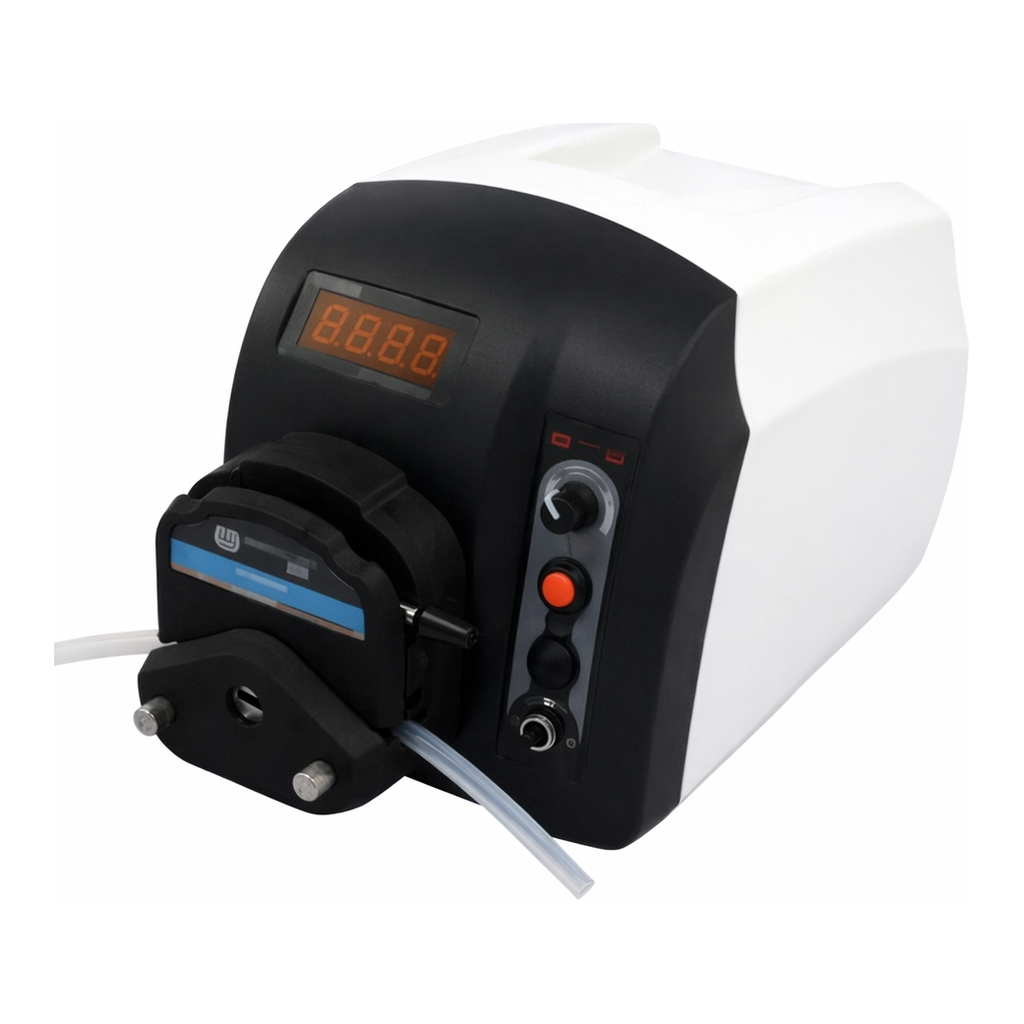

BT301S-속도조절형 튜브연동식 액체펌프

BT301S

[Variable Speed Control Peristaltic Pump]

속도조절형 튜브연동식 액체펌프

---

제품 설명 [KEY FEATURES]

• Max : 1 채널
• 유량 범위 : 0.006 - 1,600 mL/m
• 각 채널별 다양한 튜브 사용 가능
• 회전속도 LED 표시

---

FEATURES

• 회전속도 LED 표시
• Max : 1 채널
• 각 채널별 다양한 튜브 사용 가능 및 간편한 튜브 교체
• 유량 범위 : 0.006 - 1,600 mL/m
• Compact Pump
• 지속적인 주입 가능(Continuous Infusion)
• 정/역 방향, Full Speed, Start/Stop 가능
• 외부제어신호로 아날로그 제어 가능(0-5V, 0-10V, 4-20mA)
• RS-485 통신 및 MODBUS 지원

SPECIFICATIONS

Flow Range	0.006 - 1,600 mL
Speed Range	0.1 - 350 rpm
Speed Resolution	0.1 - 100 rpm : 0.1 rpm / 100 - 150 rpm : 1 rpm
Speed Accuracy	0.5 %
Power Supply	AC 220V ± 10% 50Hz/60Hz` AC 110V ± 10% 50Hz/60Hz
Power consumption	< 40W
External analog control signal	0-5V (standard)` 0-10V, 4-20mA (optional)
Communication interface	RS485 MODBUS
Operating condition	Temperature 0~40°C` Relative humidity <80%
IP grade	IP31
Dimensions (L x W x H)	260 x 181 x 198 mm
Weight	4.7 kg

ODERING INFORMATIONS

Drive	Pump Head	channel	Tubing(mm)	Flowrates(mL/min)
BT301S	YZ15	1	#13, #14, #16, #19, #25, #17	0.006 ~ 990
	YZ25	1	#15, #24	0.16 ~990
	YT15	1	#13, #14, #16, #19, #25, #17, #18	0.006 ~1,300
	YT25	1	#15, #24, #35, #36	0.16 ~1,600

APPLICATIONS

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles
