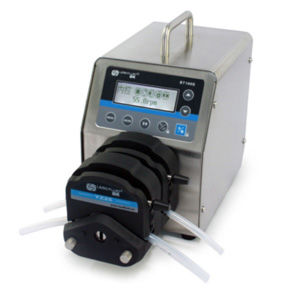

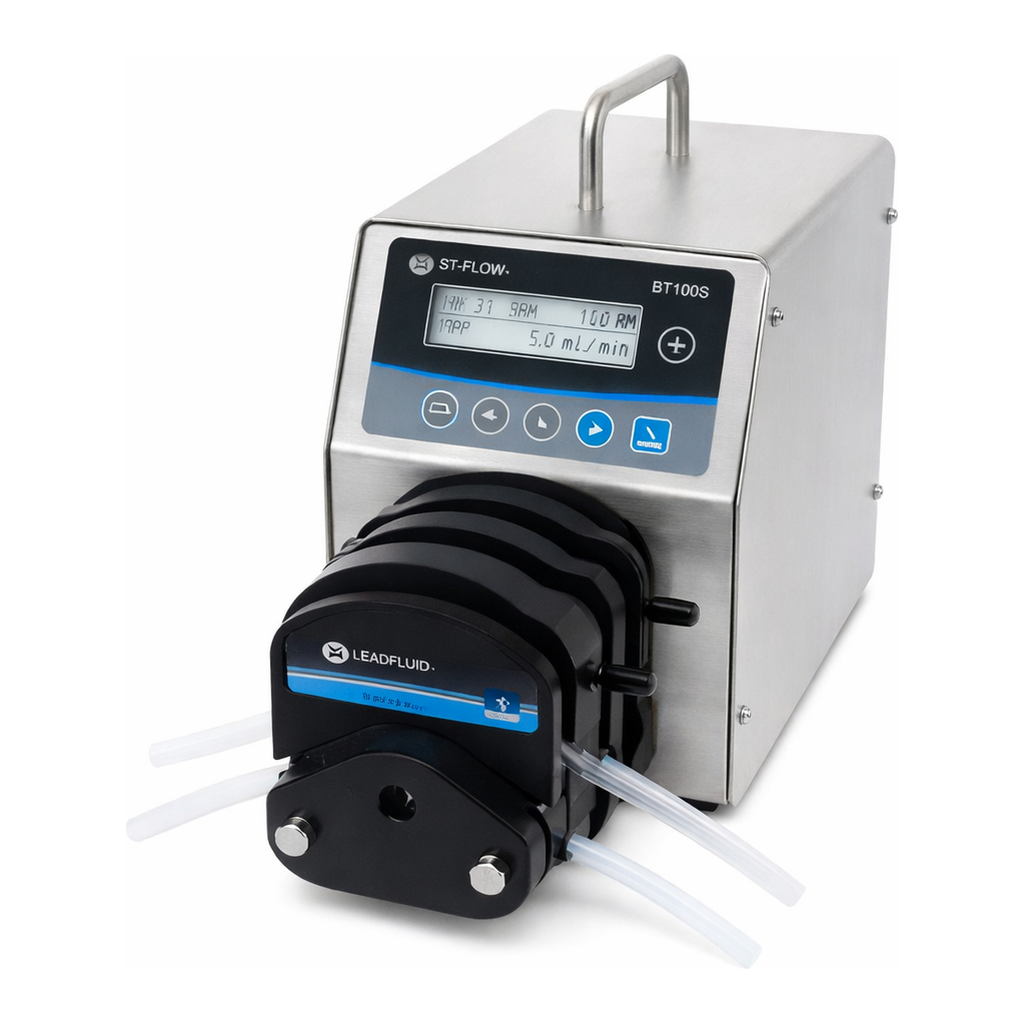

BT100S-속도조절형 튜브연동식 액체펌프

BT100S

[Variable Speed Control Peristaltic Pump]

속도조절형 튜브연동식 액체펌프

---

제품 설명 [KEY FEATURES]

• Max : 4 채널
• 유량 범위 : 0.0001 - 720 mL/m
• Compct Pump
• 지속적인 주입 가능

---

FEATURES

• 회전속도 LCD 표시
• Max : 4 채널
• 각 채널별 다양한 튜브 사용 가능 및 간편한 튜브 교체
• 유량 범위 : 0.0001 - 720 mL/m
• Compact Pump
• 지속적인 주입 가능(Continuous Infusion)
• 정/역 방향, Full Speed, Start/Stop 가능
• 외부제어신호로 아날로그 제어 가능(0-5V, 0-10V, 4-20mA)
• RS-485 통신 및 MODBUS 지원

SPECIFICATIONS

Flow Range	0.0001 - 720 mL
Speed Range	0.1 - 150 rpm
Speed Resolution	0.1 - 100 rpm : 0.1 rpm / 100 - 150 rpm : 1 rpm
Speed Accuracy	0.5 %
Power Supply	AC 220V ± 10% 50Hz/60Hz` AC 110V ± 10% 50Hz/60Hz
Power consumption	< 40W
External analog control signal	0-5V (standard)` 0-10V, 4-20mA (optional)
Communication interface	RS485 MODBUS
Operating condition	Temperature 0~40°C` Relative humidity <80%
IP grade	IP31
Dimensions (L x W x H)	226 x 150 x 238 mm
Weight	4.7 kg

ODERING INFORMATIONS

Drive type	Pump head	Channel	Tubing size (mm)	Flow rate per channel (mL/min)
BT100S	DG6-1 (6rollers)	1	Wall:0.8-1, ID:≤3.17	0.0001-49
	DG10-1 (10rollers)	1	Wall:0.8-1, ID:≤3.17	0.0001-41
	DG6-2 (6rollers)	2	Wall:0.8-1, ID:≤3.17	0.0001-49
	DG10-2 (10rollers)	2	Wall:0.8-1, ID:≤3.17	0.0001-41
	DG6-4 (6rollers)	4	Wall:0.8-1, ID:≤3.17	0.0001-49
	DG10-4 (10rollers)	4	Wall:0.8-1, ID:≤3.17	0.0001-41
	DT10-18	1	13# 14# , Wall: 0.8-1, ID:≤3.17	0.0002-82
	DT10-28	2	13# 14# , Wall: 0.8-1, ID:≤3.17	0.0002-82
	DT10-48	4	13# 14# , Wall: 0.8-1, ID:≤3.17	0.0002-82
	YZ15	1	13# 14# 16# 19# 25# 17#	0.006-420
	YZ25	1	15# 24#	0.16-420
	2 x YZ15	2	13# 14# 16# 19# 25# 17#	0.006-420
	2 x YZ25	2	15# 24#	0.16-420
	YT15	1	13# 14# 16# 19# 25# 17#	0.006-570
	YT25	1	15# 24# 35# 36#	0.16-720
	2 x YT15	2	13# 14# 16# 19# 25# 17#	0.006-570
	2 x YT25	2	15# 24# 35# 36#	0.16-720

APPLICATIONS

• Perfusion of animal tissue slice
• Flow Injection
• In-vitro system
• Re-circulating pump
• Filling of bottles
