주요특징
- Quick and easy assembly without tools
- Ideal for low-pressure applications
- Chemical resistant
- Available in a variety of sizes, materials, and configurations
| Barbed Fittings No tools needed for assembly Barbed fittings are designed for quick and easy assembly without tools. Combine these simple, economical fittings with our flexible tubing for use in your low-pressure applications (generally less than 30 psi). Order tubing on pages 988-1017. |
 |
*Specifications
*
Brass. Good chemical resistance. Temp range: –85 to 250°F (–65 to 121°C). Not recommended for sterilization
High-Density Polyethylene (HDPE). Very good chemical resistance. Temp range: –65 to 150°F (–53 to 65°C). Sterilize by ethylene oxide only.
PVDF. Excellent chemical resistance. Temp range: –80 to 265°F (–62 to 129°C). Sterilize by ethylene oxide or autoclave.
Nylon. Good chemical resistance. Temp range: –50 to 250°F (–46 to 121°C). Sterilize by ethylene oxide only.
PFA. Excellent chemical resistance. Temp range: 0 to 400°F (–17 to 204°C). Sterilize by ethylene oxide or autoclave.
Polypropylene (PP). Very good chemical resistance. Temp range: 9 to 180°F (–13 to 66°C). Sterilize by ethylene oxide or gamma irradiation.
Black PP: Temp range: 9 to 180°F (–13 to 66°C). Sterilize by ethylene oxide or autoclave.
Clear PP: Temp range: 32 to 275°F (0 to 135°C). Sterilize by ethylene oxide or autoclave.
White PP: Temp range: 9 to 180°F (–13 to 66°C). Sterilize by autoclave only.
PVC. Good chemical resistance. Rated at 340 psi at 77°F (25°C). Temp range: –10 to 140°F (–23 to 60°C). Sterilize by ethylene oxide only.
Stainless Steel (316 SS). Very good chemical resistance. Rated at 200 psi at 77°F (25°C). Temp range: –40 to 200°F (–40 to 93°C). Sterilize by ethylene oxide, autoclave, or gamma irradiation.

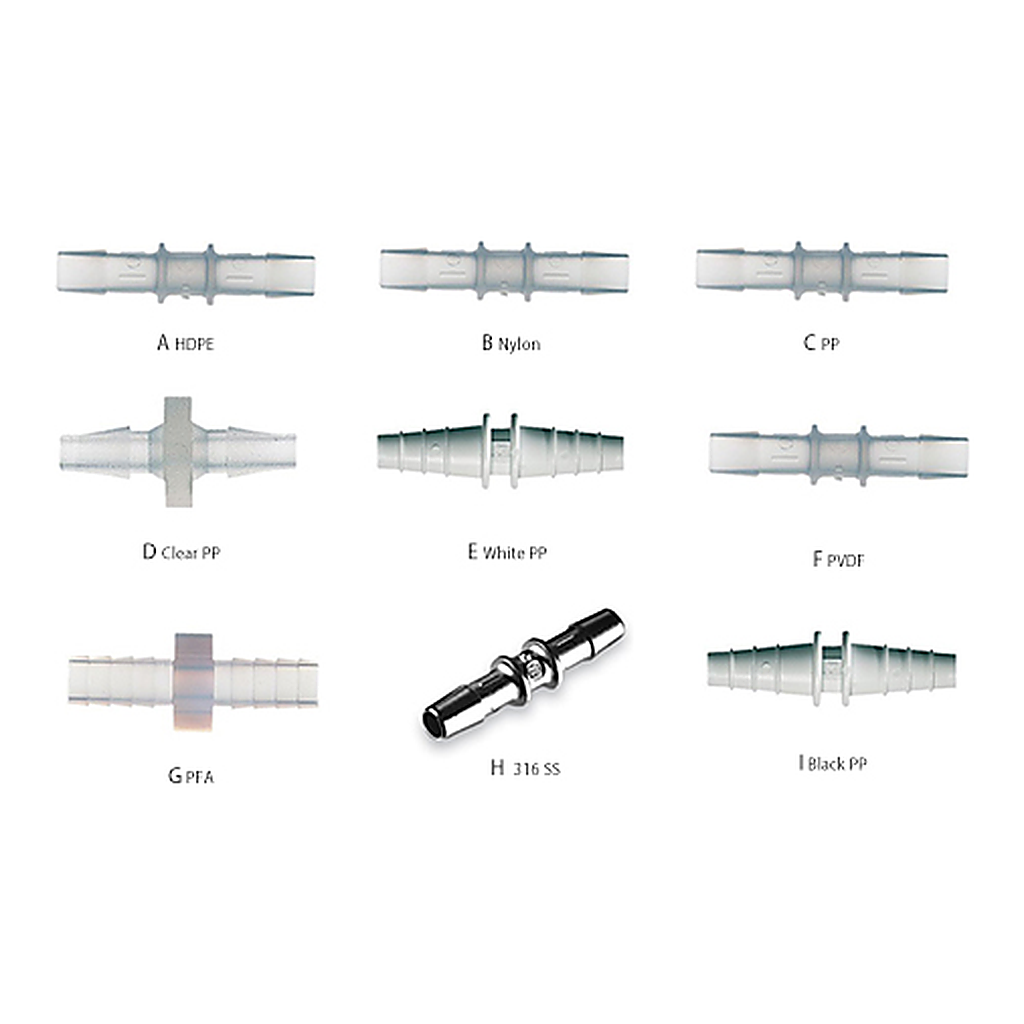

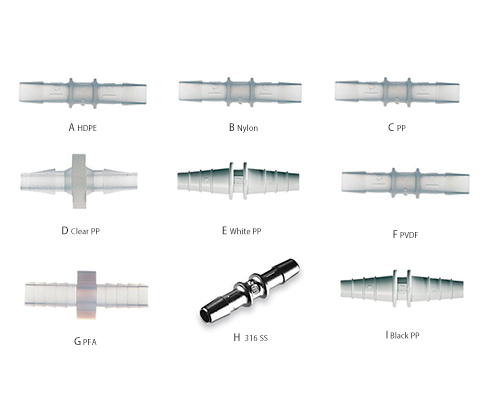

| Tubing ID | Material | Key | Catalog number | Qty/ pk | Price/ pk of 1 |
| Straight connectors | |||||
| 1⁄16" 1⁄16" 1⁄16" 1⁄16" 1⁄16" |
HDPE Nylon PP Clear PP PVDF |
A B C D F |
GY-30622-47 GY-30622-48 GY-30622-49 GY-06365-11 GY-30703-00 |
10 10 10 25 10 |
|
| 3⁄32" 3⁄32" 3⁄32" 3⁄32" 3⁄32" |
HDPE Nylon PP Clear PP PVDF |
A B C D F |
GY-30622-44 GY-30622-45 GY-30622-46 GY-06365-33 GY-30703-01 |
10 10 10 25 10 |
|
| 1⁄8" 1⁄8" 1⁄8" 1⁄8" 1⁄8" 1⁄8" |
HDPE Nylon PP Clear PP PVDF 316 SS |
A B C D F H |
GY-30622-53 GY-30622-54 GY-41518-05 GY-06365-22 GY-30703-02 GY-30620-01 |
10 10 10 25 10 1 |
|
| 5⁄32" 5⁄32" 5⁄32" 5⁄32" 5⁄32" |
HDPE Nylon PP PVDF PFA |
A B C F G |
GY-30622-50 GY-30622-51 GY-30622-52 GY-30703-03 GY-06383-95 |
10 10 10 10 1 |
|
| 4–5.25 mm | White PP | E | GY-06288-10 | 10 | |
| 3⁄16" 3⁄16" 3⁄16" 3⁄16" 3⁄16" |
HDPE Nylon PP PVDF 316 SS |
A B C F H |
GY-30622-55 GY-30622-56 GY-30622-57 GY-30703-04 GY-30620-03 |
10 10 10 10 1 |
|
| 5 mm | Clear PP | D | GY-06459-10 | 12 | |
| 6 mm | Clear PP | D | GY-06459-20 | 12 | |
| 6–8 mm | White PP | E | GY-06288-20 | 10 | |
| 1⁄4" 1⁄4" 1⁄4" 1⁄4" 1⁄4" 1⁄4" |
HDPE Nylon PP PVDF PFA 316 SS |
A B C F G H |
GY-30621-85 GY-30621-86 GY-40610-00 GY-30703-05 GY-06383-96 GY-30620-04 |
10 10 10 10 1 1 |
|
| 5⁄16" 5⁄16" 5⁄16" 5⁄16" 5⁄16" |
HDPE Nylon PP PVDF 316 SS |
A B C F G |
GY-30621-87 GY-30621-88 GY-40610-01 GY-30703-06 GY-30620-02 |
10 10 10 10 1 |
|
| 8–10 mm | White PP | E | GY-06288-30 | 10 | |
| 9 mm | Clear PP | D | GY-06459-30 | 12 | |
| 3⁄8" 3⁄8" 3⁄8" 3⁄8" 3⁄8" 3⁄8" |
HDPE Nylon PP PVDF PFA 316 SS |
A B C F G H |
GY-30621-89 GY-30621-90 GY-40610-02 GY-30703-07 GY-06383-97 GY-30620-05 |
10 10 10 10 1 1 |
|
| 10–12 mm | White PP | E | GY-06288-40 | 10 | |
| 10–14 mm | White PP | E | GY-06288-50 | 10 | |
| 1⁄2" 1⁄2" 1⁄2" 1⁄2" 1⁄2" |
HDPE Nylon PP PVDF 316 SS |
A B C F H |
GY-30621-92 GY-30621-93 GY-40610-03 GY-30703-08 GY-30620-06 |
10 10 10 10 1 |
|
| 13 mm | Clear PP | D | GY-06459-40 | 12 | |
| 5⁄8" 5⁄8" 5⁄8" 5⁄8" 5⁄8" |
HDPE Nylon PP PVDF 316 SS |
A B C F H |
GY-30621-79 GY-30621-80 GY-40610-04 GY-30703-09 GY-30620-07 |
10 10 10 10 1 |
|
| 3⁄4" 3⁄4" 3⁄4" 3⁄4" 3⁄4" |
HDPE Nylon PP PVDF 316 SS |
A B C F H |
GY-30621-81 GY-30621-82 GY-40610-05 GY-30703-10 GY-30620-08 |
10 10 5 5 1 |
|
| 14–16 mm | White PP | E | GY-06288-60 | 10 | |
| 1" 1" 1" 1" |
HDPE Nylon PP PVDF |
A B C F |
GY-30621-83 GY-30621-84 GY-40610-06 GY-30703-11 |
10 10 5 5 |
|
| 11⁄4" 11⁄4" |
Nylon Black PP |
B I |
GY-31408-00 GY-31407-00 |
5 5 |
|
| 1 1⁄2" 1 1⁄2" |
Nylon Black PP |
B I |
GY-31408-01 GY-31407-01 |
5 5 |
|
| 2" 2" |
Nylon Black PP |
B I |
GY-31408-02 GY-31407-02 |
5 5 |
