주요특징
- Standard flow quick-disconnect couplings require a body and an insert of the same flow size. Plug insert into body to connect fitting—fitting halves lock into place immediately. To disconnect fitting halves, simply press the thumb latch on the coupling body.

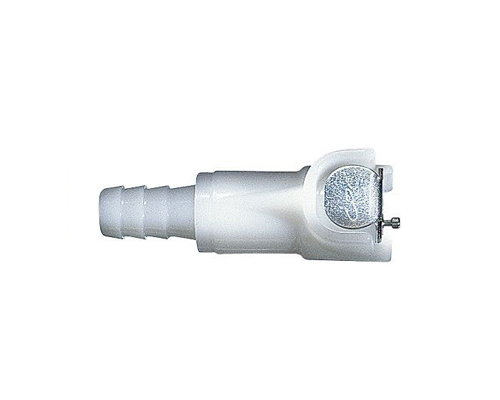

Hose Barb Bodies CPC (COLDER) * Quick-Disconnect Couplings * No more struggling—just press thumb latch Choose from four styles-hose barb, compression, push-to-connect, and NPT pipe adapter— for either standard in-line or panel-mount configurations For each complete quick-disconnect fitting, order one body and one insert with the same flow size. Plug insert into body to connect fitting-fitting halves lock in place immediately. To disconnect fitting halves, simply press the thumb latch on the coupling body` a spring-operated valve in each fitting half seals the flow path. (“Straight-through” fittings without shutoff valves are also available.) All fitting bodies have 316 stainless steel springs and latches. |

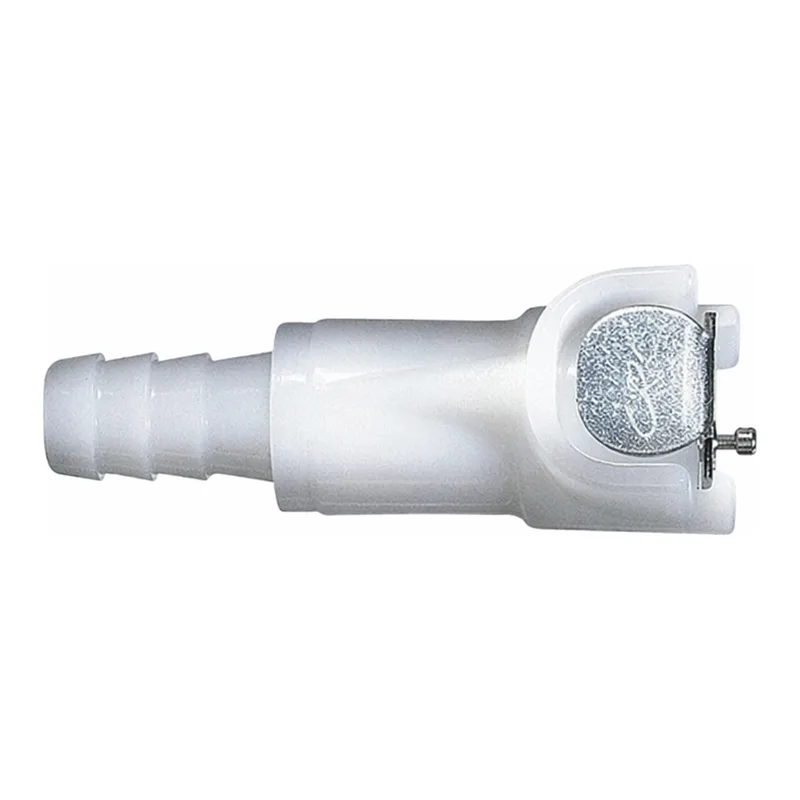

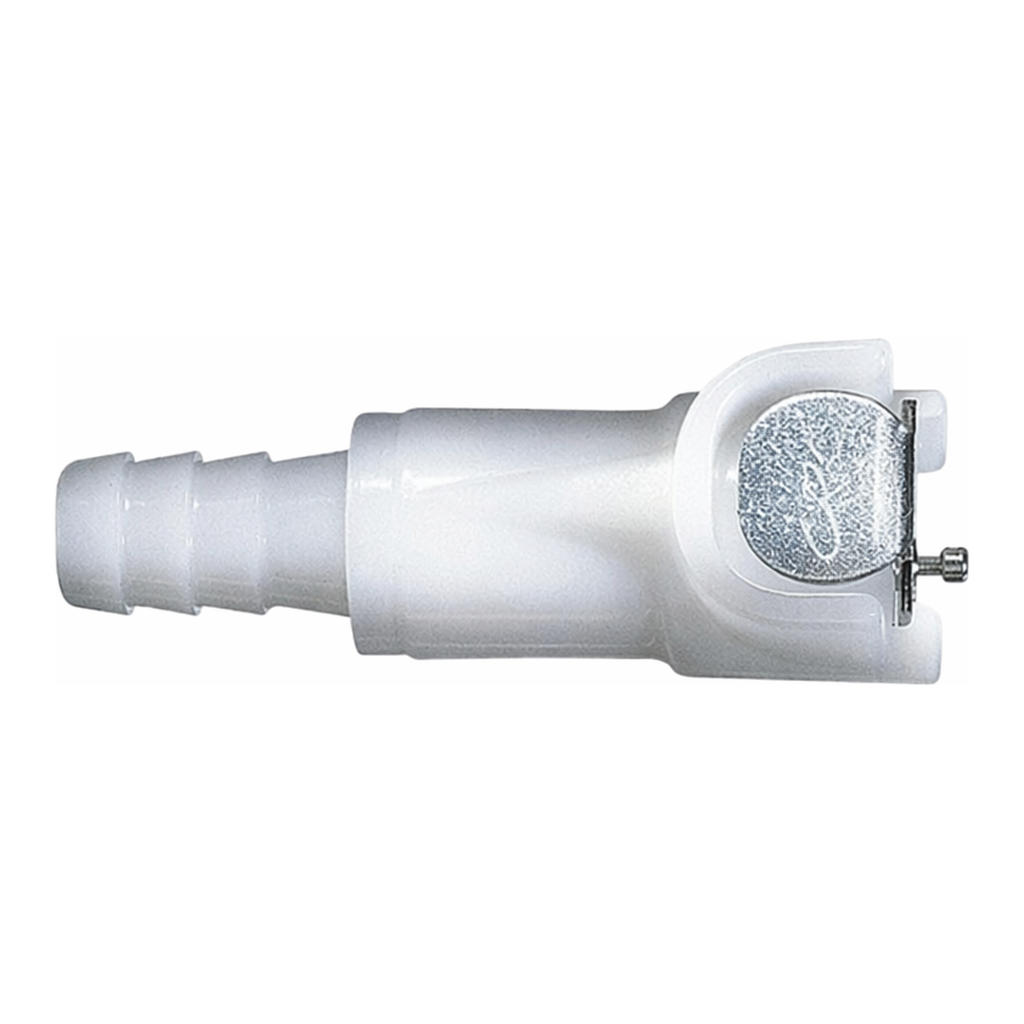

Hose Barb Bodies
Tubing ID | Flow size | Length | Resin | Catalog number | Price/ pk of 1 |
Valved fittings | |||||
1⁄16" 1⁄8" 3⁄16" 1⁄4" |
1⁄8" 1⁄8" 1⁄8" 1⁄8" |
1.41" 1.65" 1.85" 1.85" |
Acetal Acetal Acetal Acetal |
GY-06360-19 GY-06360-20 GY-06360-22 GY-06360-25 |
|
1⁄4" 5⁄16" 3⁄8" 1⁄16" |
1⁄4" 1⁄4" 1⁄4" 1⁄8" |
1.95" 1.95" 1.95" 1.41" |
Acetal Acetal Acetal PP |
GY-06360-65 GY-06360-67 GY-06360-70 GY-06364-19 |
|
1⁄8" 1⁄4" 1⁄4" 3⁄8" |
1⁄8" 1⁄8" 1⁄4" 1⁄4" |
1.67" 1.87" 1.97" 1.97" |
PP PP PP PP |
GY-06364-20 GY-06364-25 GY-06364-65 GY-06364-70 |
|
Straight-through fittings | |||||
1⁄16" 1⁄8" 3⁄16" 1⁄4" |
1⁄8" 1⁄8" 1⁄8" 1⁄8" |
1.41" 1.65" 1.85" 1.85" |
Acetal Acetal Acetal Acetal |
GY-06361-09 GY-06361-11 GY-06361-12 GY-06361-13 |
|
1⁄4" 5⁄16" |
1⁄4" 1⁄4" 1⁄4" |
1.95" 1.95" 1.95" |
Acetal Acetal Acetal |
GY-06361-51 GY-06361-52 GY-06361-53 |
