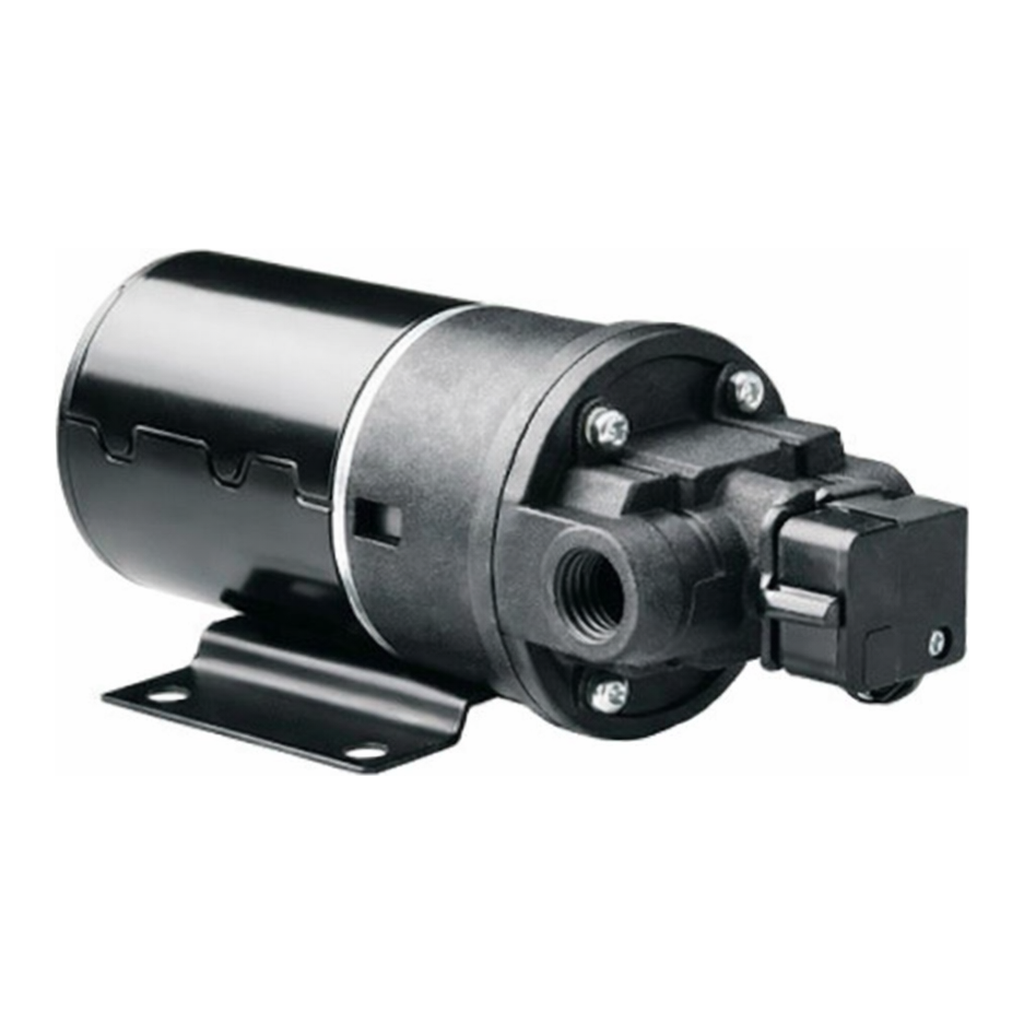

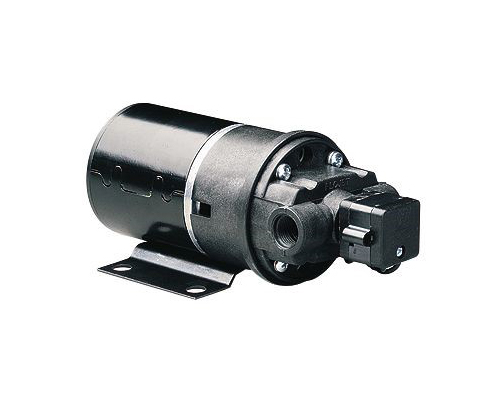

Multi-Position Double-Diaphragm Pump
주요특징
- No metal wetted parts permit use with corrosive liquids
- All models feature factory-set pressure limits to protect pumps from damage—pumping stops when high limit is reached, resumes when pressure decreases to low setting.
| All-Plastic Double-Diaphragm Pumps No metal wetted parts allows use with corrosive liquids Factory-set pressure limits protect pumps from damage—pumping stops when high limit is reached, resumes when pressure decreases to low setting Multiposition Pumps Pump head rotates and mounts in 90° increments—position ports in one of four orientations to simplify installation. *Specifications * Suction lift : 6 ft (1.8 m) Viscosity : light Particulates : 50 µm max Duty cycle : intermittent Run dry : yes |
 |
| Max flow GPM (LPM) | psi (bar) limits† | Port size | Max temp | Wetted materials | Valve materials | Motor (50/60 Hz) | Dimensions (L x W x H) |
Catalog number | Price | ||||
| Max | Min | Body | Diaphragm | Type‡ | Power | Amps | |||||||
| 1.85 (7) | 60 (4.1) | 40 (2.8) | 3⁄8" NPT(F) | 160°F (71°C) | PP | Santoprene® | Santoprene® | TENV | 115 VAC | 0.55 | 71⁄4" x 4" x 33⁄4" (18.4 x 10.2 x 9.5 cm) |
GY-75000-00 | |
| 230 VAC | 0.25 | GY-75000-05 | |||||||||||
| 1.87 (7.1) | 95 (6.6) | 70 (4.8) | 1⁄4" NPT(F) | 200°F (93°C) | Nylon | EPDM | EPDM | TEFC | 115 VAC | 1.20 | 87⁄8" x 4" x 31⁄2" (22.5 x 10.2 x 8.9 cm) |
GY-75000-10 | |
| 230 VAC | 0.75 | GY-75000-15 |
