Solution Grounded pH/ORP Electrodes
주요특징

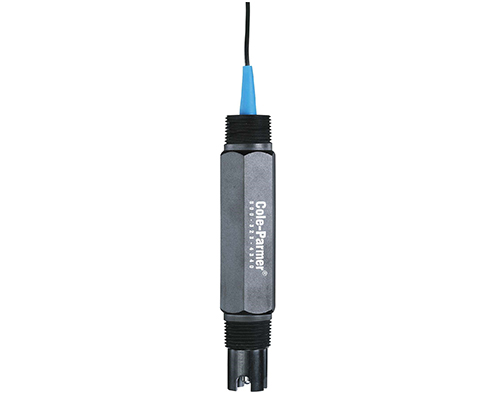

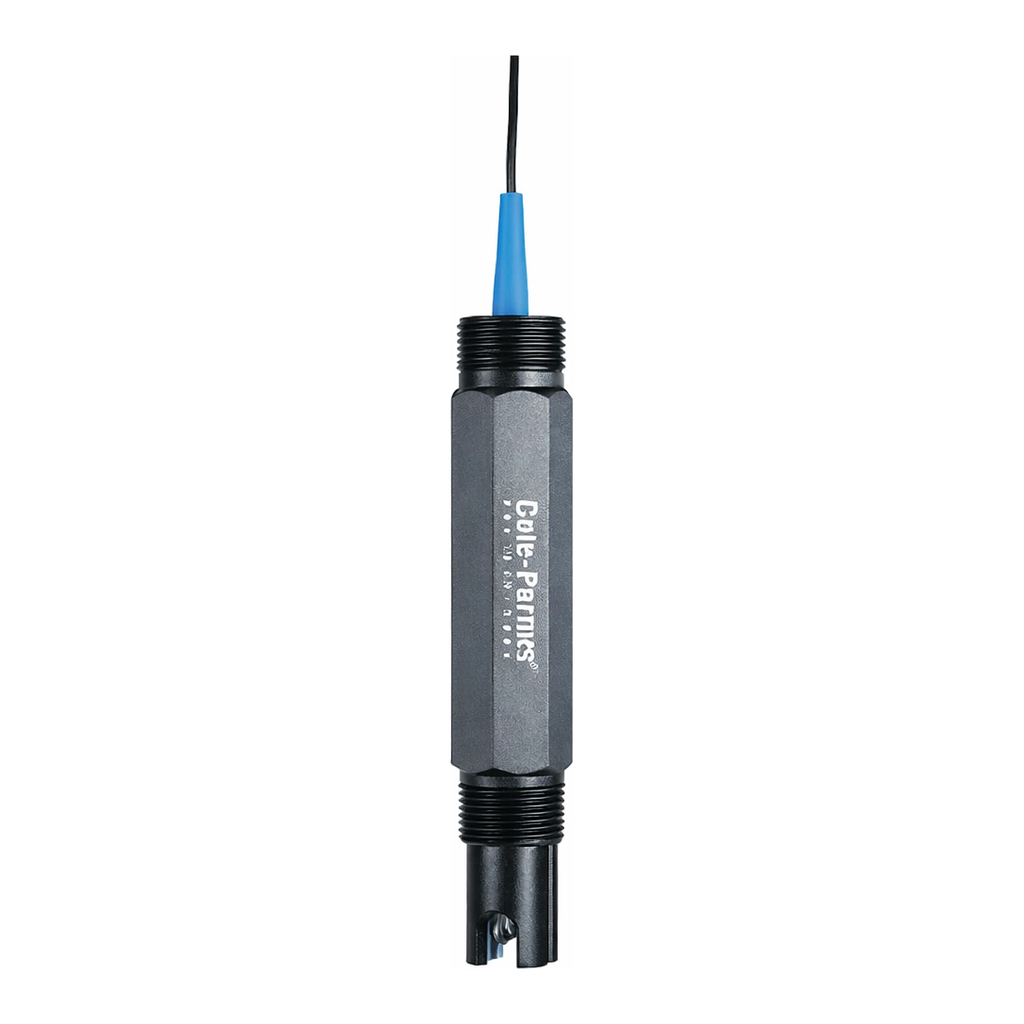

- Cole-Parmer In-line or Submersible, Solution Grounded pH/ORP Electrodes
- Industrial pH/ORP Electrodes for Chemical Property Testing
- These electrodes offer solution ground, PTFE references with double junctions and polymerized gel. All models include a 10-ft cable with BNC pH connector and Ryton® housing with 3/4`` NPT(M) threads.
Cole-Parmer In-line or Submersible, Solution Grounded pH/ORP Electrodes
No more difficult installations * One-piece design is easy to install * Choose economical single-junction or rugged double-junction design * Choice of ATC elements Industrial pH/ORP Electrodes for Chemical Property Testing These electrodes offer solution ground, PTFE references with double junctions and polymerized gel. All models include a 10-ft cable with BNC pH connector and Ryton® housing with 3/4`` NPT(M) threads. *Specifications * hread size: 1⁄2" NPT(M) Insertion depth: 1" (2.5 cm) Housing length: 5" (12.7 cm) Housing material: PVDF Cable: 10 ft (3 m) Maximum pressure: 100 psi |
|
Application | Junction | Maximum temperature | ATC element | ATC connector | BNC connector | Tinned ends | ||
Catalog number | Price | Catalog number | Price | |||||
In-line pH electrodes, 0 to 14 pH | ||||||||
General purpose pH | Single | 176°F (80°C) | None | None | GY-05993-90 | GY-05993-17 | ||
100 Ω RTD | Mini-audio | GY-05993-70 | GY-05993-07 | |||||
100 Ω RTD | Tinned ends | GY-05993-79 | GY-05993-09 | |||||
1 kΩ RTD | Spade lugs | GY-05993-91 | GY-05993-19 | |||||
Dirty, contamination pH | Double | 212°F (100°C) | None | None | GY-27001-90 | GY-05993-44 | ||
100 Ω RTD | Mini-audio | GY-27001-70 | GY-05993-29 | |||||
100 Ω RTD | Tinned ends | GY-27001-72 | GY-05993-38 | |||||
1 kΩ RTD | Spade lugs | GY-27001-91 | GY-05993-48 | |||||
In-line ORP electrodes | ||||||||
General purpose ORP | Single | 176°F (80°C) | None | None | GY-05993-62 | GY-05993-05 | ||
Dirty ORP | Double | 212°F (100°C) | None | None | GY-27001-62 | GY-05993-23 |
