Wireless Temperature, Humidity And Universal Input Sensor
다른 상품 둘러보기

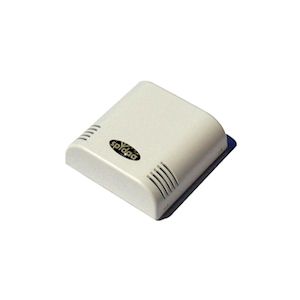

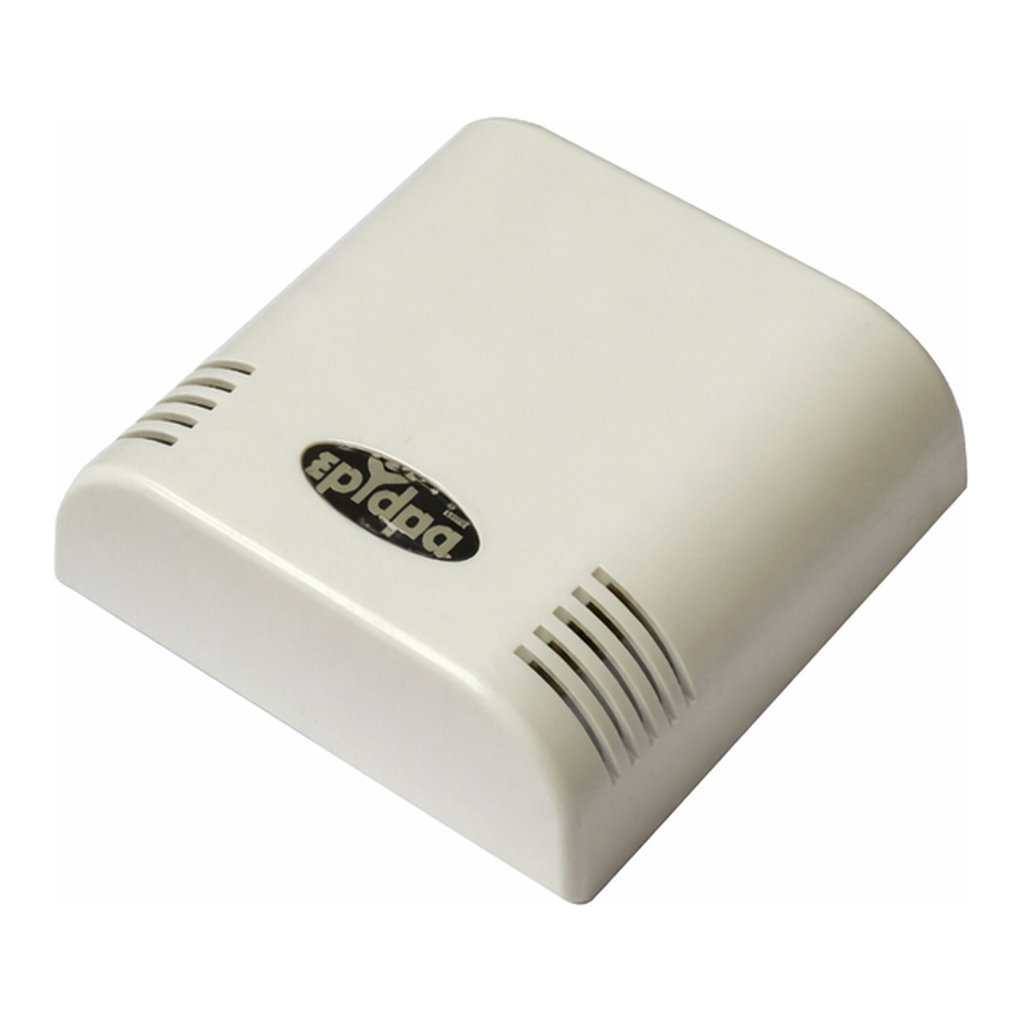

Wireless Temperature, Humidity & Universal Input Sensor
Wireless wall mounted temperature transmitter with on board temperature and relative humidity sensors and the connector fitted to allow use of the universal input. This is ideal if you need to monitor temperature, relative humidity and a switch sensor to detect if a door or window is open. This sensor is housed in a modern, attractive wall mount enclosure and has an integral antenna for maximum aesthetic appeal. Battery powered for up to six years.
Specification
| Power | Internal Lithium Primary cell. 3.7V AA Size |
| Battery Life | 6 yrs life minimum @ 10 min transmission rate |
| Universal Input Types | Pt100, Thermocouple (Types J,K,R,S & T), 4/20mA, 0-10VDC and switch closure |
| Measuring Range (Internal Sensors) | -30°C to +55°C (-22°F to +131°F) 0 to 100%RH |
| Universal Input Measuring Ranges | Thermocouple Type J: -180°C to +850°C K: -160°C to +1200°C R: +100°C to +1760°C S: +100°C to +1760°C T: -200°C to +400°C Pt100 Pt100 EN60571: -200°C to +550°C Pt100 JISC: -100°C to +450°C Current 4/20mA Voltage 0-10VDC |
| Accuracy | Internal Temperature: ±0.5°C Internal Relative Humidity: ±2% Thermocouple Type (not including sensor errors) J: ±1.35°C K: ±1.7°C R: ±4.9°C S: ±3.15°C T: ±0.9°C Pt100 Pt100 EN60571: ±0.2°C ±0.1% of reading Pt100 JISC: ±0.2°C ±0.1% of reading Current 4/20mA: ±5uA ±0.1% of reading Voltage 0-10VDC: ±10mV ±0.1% of reading |
| Transmission Rate | Selectable: 20 secs, 1 min, 10 min or 30 min (10 minute recommended) |
| Transmit Power | 10mW |
| Transmission Range | Typically 400m line of sight. |
| Transmission Frequency | 433MHz |
| Outdoor Use | No |
| Material | ABS |
| Dimensions | 80mm x 80mm x 27mm |
| Warranty | 3 Years |
