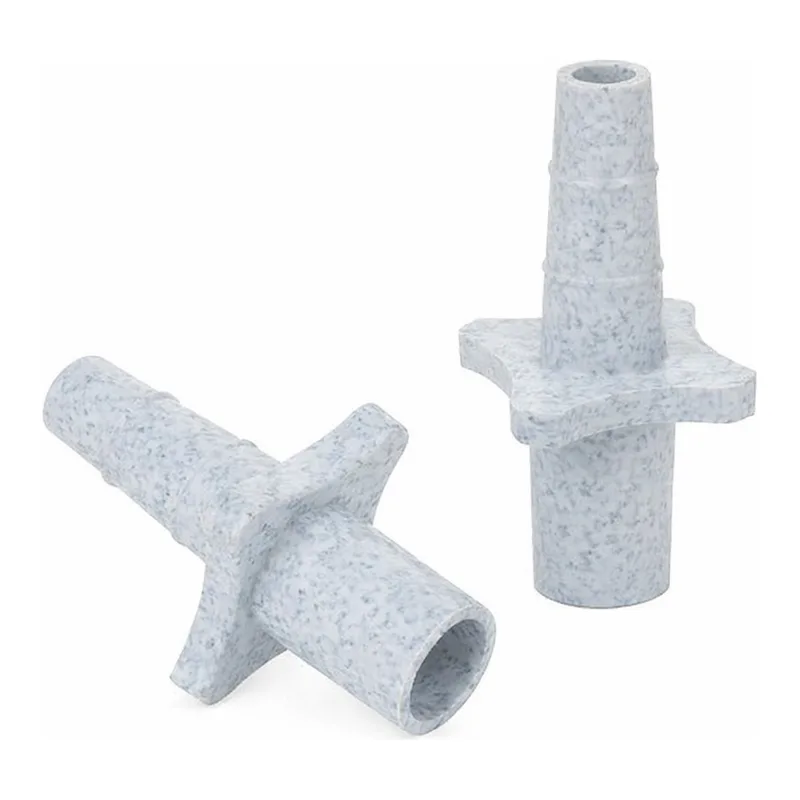

Accessories for Nalgene™ Reusable Filter Holders with Receiver

Replace parts on the Nalgene™ Reusable Filter Holders with Receiver with these accessories.

Nalgene™ Reusable Filter Holders with Receiver eliminate the need for a manifold or breakable glass vacuum flask. These reusable filter holders are complete systems made of washable, polysulfone and provide an environmentally friendly alternative to disposable filters. They are fully autoclavable, with or without membranes in place

Features

• Graduated receiver allows easy visualization of sample volume
• Two side arms allow connection to vacuum line
• Upper chamber is designed for pressure or vacuum filtration
• Independent locking rings seal upper chamber to receiver without damagingmembrane to ensure efficient filtration
• Chamber accommodates 47 or 50mmmembranes (not included) and has three ports for venting (with or without syringe filters) and aseptic addition of samples
• Ports also can be attached to a pressure source
• Upper chamber is supplied with twomembrane support plates: a sterilization plate and an analytical plate

Receiver Accepts

• 0.25 to 0.3125 in. I.D. (6.4 to 8mm) vacuum tubing
• Syringe filters

Sterilization Plate (one-piece, clear)

• Providesmaximum flowrate and throughput
• Suitable for cold sterilization or clarification of culturemedia, reagents or solvents that are compatible with holder andmembranematerials
• Nominal filter area, 13.3cm2

Analytical Plate (two-piece, white)

• Provides optimalmembrane support and keepsmembrane flat to facilitate analytical procedures
• Suitable for analysis of particulates and biological contaminants, or anymicrobiological analyses using themembrane filter technique
• Nominal filter area, 11.3cm2

Includes:

Complete upper chamber, receiver, polypropylene cover and TPE port caps. (membranes not included.)
