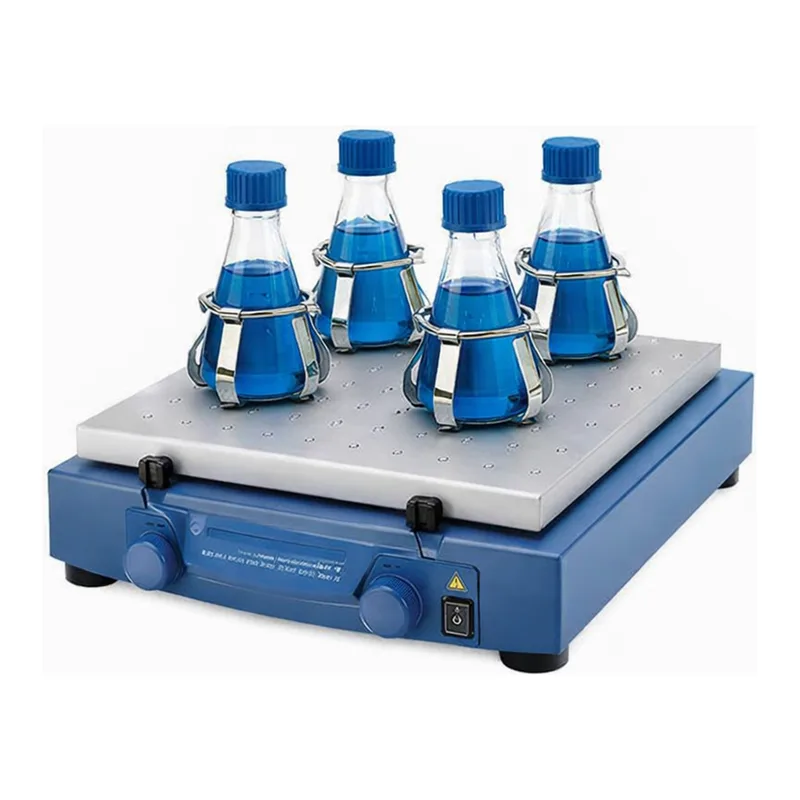

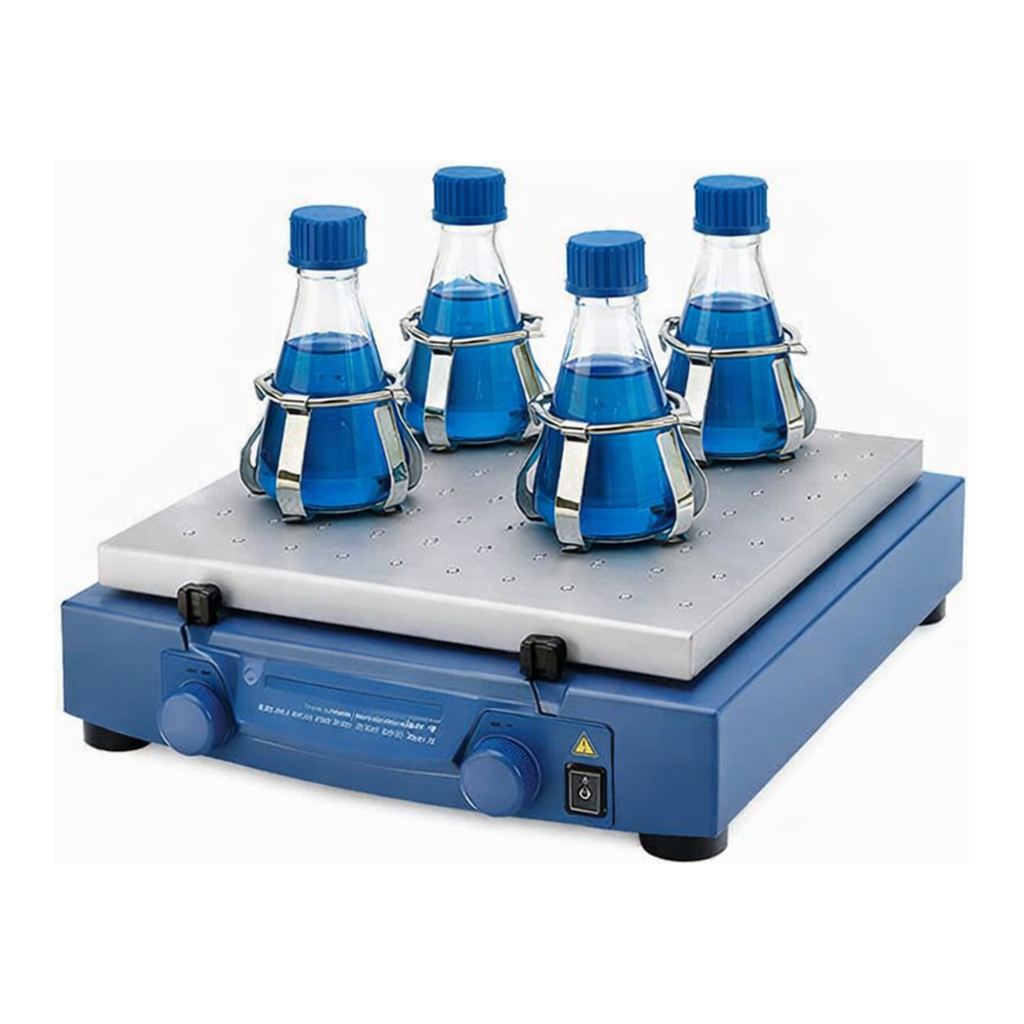

■ “Circular 원형운동”의 중형 Shaking & Vibration system, Culture & Mixing용
■ 무소음, 무부하의 균일 운동, 고장이 없는 반영구적인 수명
■ 다용도, 다양성 : 25 ~ 500 ml의 어떤 모양이나 크기의 vessel도 수용 가능
■ 기본 Unit에 Platform등 각종 부품은 별도
■ KS206 Control은 PC와 연결 상태 저장 및 작동 할 수 있음
■ Protection class acc. to DIN EN 60529 (IP21)
■ IKA
|
|
|
|
| Cat. No. |
Model |
Type |
Display |
| --- |
--- |
--- |
--- |
| S04-05-121 |
2980200 |

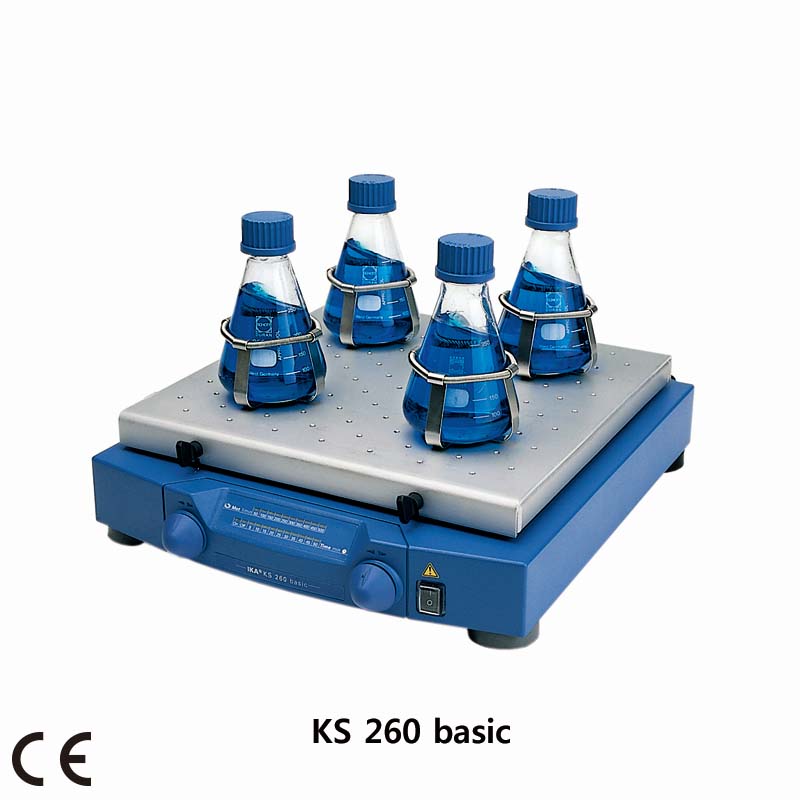

KS 260 basic |
LED Line |
| S04-05-128 |
2980300 |
KS 260 control |
Digital |
|
|
|
| Cat. No. |
S04-05-121 |
S04-05-128 |
| --- |
--- |
--- |
| Type |
KS 260 basic |
KS 260 control |
| --- |
--- |
--- |
| Shaking Movement |
Orbital |
|
| --- |
--- |
--- |
| Orbital Diameter |
10 mm |
|
| --- |
--- |
--- |
| Motor Rating Input |
45 W |
|
| --- |
--- |
--- |
| Motor Rating Output |
10 W |
|
| --- |
--- |
--- |
| Speed Range |
20 ~ 500 rpm |
10 ~ 500 rpm |
| --- |
--- |
--- |
| Timer |
∞ / 5 ~ 50 min |
∞ / 0 ~ 9 hr 59 min |
| --- |
--- |
--- |
| Size |
w360×d420×h98 mm |
|
| --- |
--- |
--- |
| Interface |
- |
RS 232 |
| --- |
--- |
--- |
| Power |
230V, 50/60 Hz |
|
Optional Accessory
| Cat. No. |
Model |
Type |
Description |
| S04-05-521 |
8017400 |
AS260.1 |
Universal Attachment |
| S04-05-528 |
3115500 |
AS260.2 |
Fixing Clip Attachment |
| S04-05-535 |
3120600 |
AS260.3 |
Dish Attachment |
| S04-05-542 |
3120900 |
AS260.5 |
Separating Funnel Attachment |
| S04-05-912 |
1234300 |
AS2.1 |
Fixing Clip, 25 ml용 |
| S04-05-918 |
1234400 |
AS2.2 |
Fixing Clip, 50 ml용 |
| S04-05-924 |
1234500 |
AS2.3 |
Fixing Clip, 100 ml용 |
| S04-05-930 |
1234600 |
AS2.4 |
Fixing Clip, 250 ml용 |
| S04-05-936 |
1234700 |
AS2.5 |
Fixing Clip, 500 ml용 |
| S04-05-942 |
3819300 |
AS2.6 |
Fixing Clip, 1 L용 |
| H03-05-650 |
4720000 |
labworldsoft |
Software |
● AS 260.1 Universal Attachment : w425×d335×h135 mm
- For use with various types of vessels
- Set-up Plate : w320×d320 mm
● AS 260.2 Fixing Clip Attachment : w330×d330×h24 mm
- For use with round flasks, erlenmeyer flasks
- AS2.1 : 25 ml용, 56개 장착 가능
- AS2.2 : 50 ml용, 23개 장착 가능
- AS2.3 : 100 ml용, 23개 장착 가능
- AS2.4 : 250 ml용, 11개 장착 가능
- AS2.5 : 500 ml용, 9개 장착 가능
- AS2.6 : 1 L용, 5개 장착 가능
● AS 260.3 Dish Attachment : w410×d370×h32 mm
- For Smooth Shaking Operations in the Low Viscosity
- For Use Petri Dishes or Culture Bottles
- PP Slip-resistant Foil 포함
- Set-up Plate : w320×d320 mm
● AS 260.5 Separating Funnel Attachment : w334×d425×h145 mm
- For use with Separating Funnel
- 50 ml용, 6개 장착 가능
- 100 ml용, 5개 장착 가능
- 250 ml용, 3개 장착 가능
- 500 ml용, 3개 장착 가능
