Servicebio Dry Bath (Heating, Shaking)

Product Introduction

This dry bath adopts advanced microcomputer-controlled and uses high-purity aluminum material as a heat-conducting medium to replace the traditional water bath device. A variety kinds of metal adapters can be selected for various centrifuge tubes when using the dry bath.

---

Product Features

1.The oscillation speed is accurate, with small fluctuations, a brushless motor, low noise, long service life, and maintenance-free.

2. Multiple modules to choose from.

3..The instrument has fast heating speed, uniform heating, precise temperature control, and high stability.

4.Timing function with buzzer alarm.

---

Parameter Comparison

Lifting speed of heating and cooling

Cat. No.	SMB-C	SMB-H	SMB-PC	SMB-MH
Programming Function	_	_	Programmable	_
Horizontal Amplitude	_	_	_	3 mm
Speed Range	_	_	_	100-2000 rpm

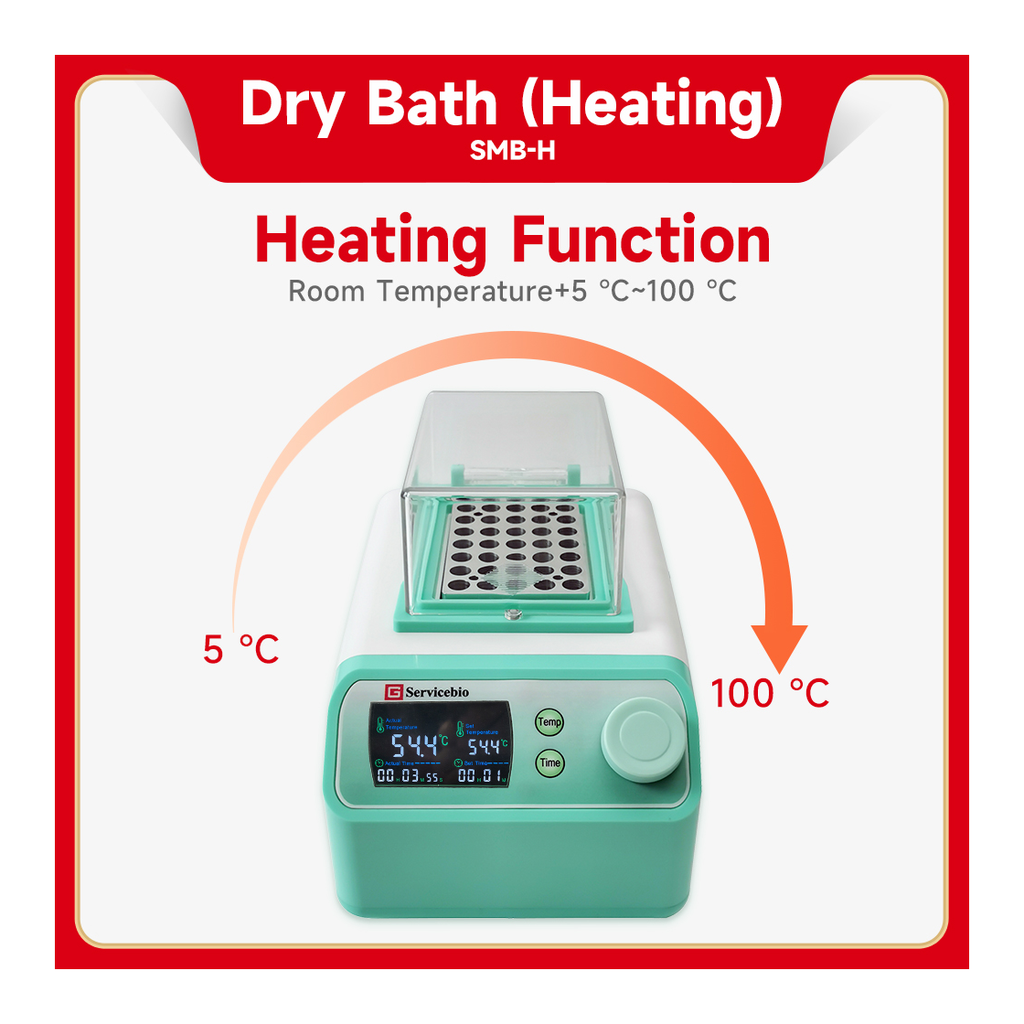

Temperature Control Range	0-100℃	RT+5℃-100℃	0-100℃	Room temperature -100℃
Temperature Setting Range	0-100℃	RT+5℃-100℃	0-100℃	Room temperature -100℃
Timing Range	1min- 99h59min	1min- 99h59min	1min- 99h59min	1min- 99h59min
Module Temperature Stability @40-100℃	≤±0.5℃	≤±0.5℃	≤±0.5℃	≤±0.5℃
Module Temperature Uniformity @40℃	≤±0.3℃	≤±0.3℃	≤±0.3℃	≤±0.5℃
Module Temperature Uniformity >@40℃	≤±0.5℃	≤±0.5℃	≤±0.5℃	≤±0.5℃
Temperature Display Accuracy	0.1℃	0.1℃	0.1℃	0.1℃
≤15 min (20℃-100℃)	≤15 min (20℃-100℃)	≤15 min (20℃-100℃)	≤15 min (room temperature-100℃)
Sample Processing Capacity	1 standard module	1 standard module	1 standard module	1 standard module
Input Power Supply	AC100V/AC 220V 50Hz/60Hz	AC100V/AC 220V 50Hz/60Hz	AC100V/AC 220V 50Hz/60Hz	AC100V/AC 220V 50Hz/60Hz
Power	150 W	150 W	150 W	216 W
Fuse	250V/3A	250V/3A	250V/3A	250V/3A

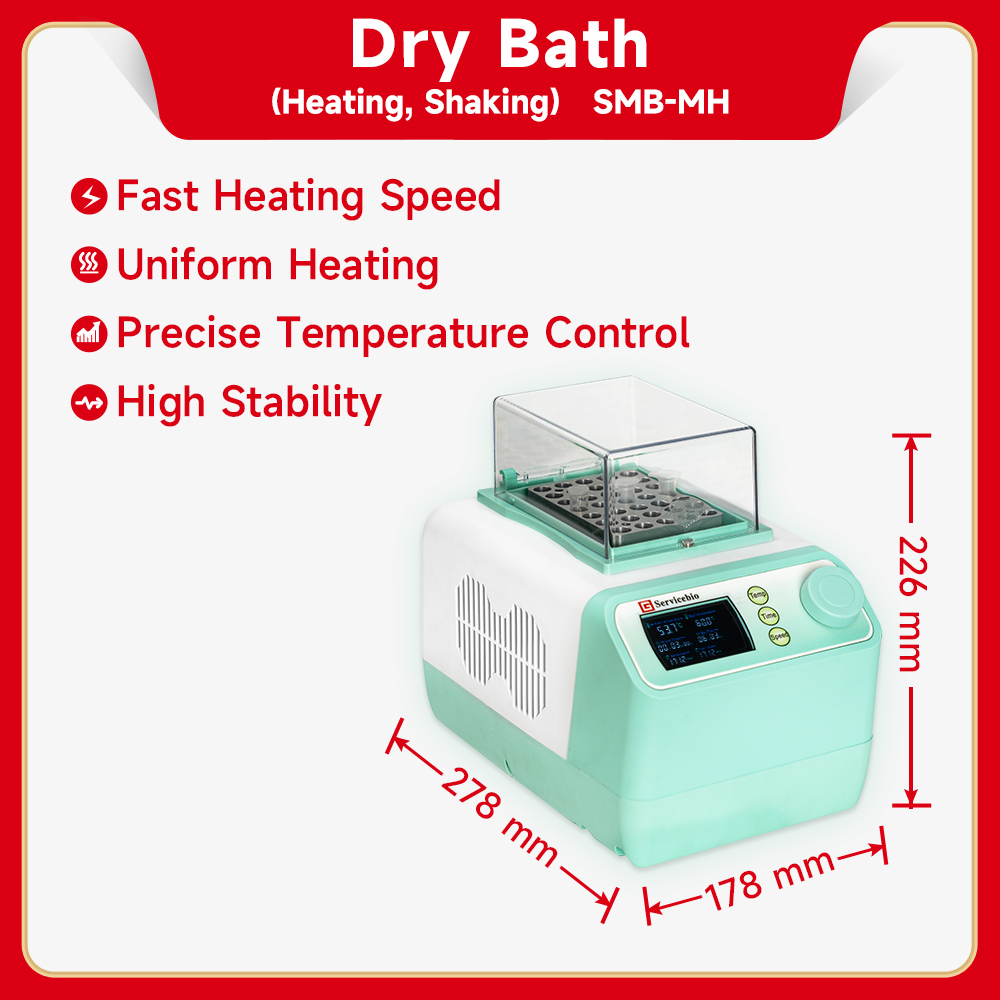

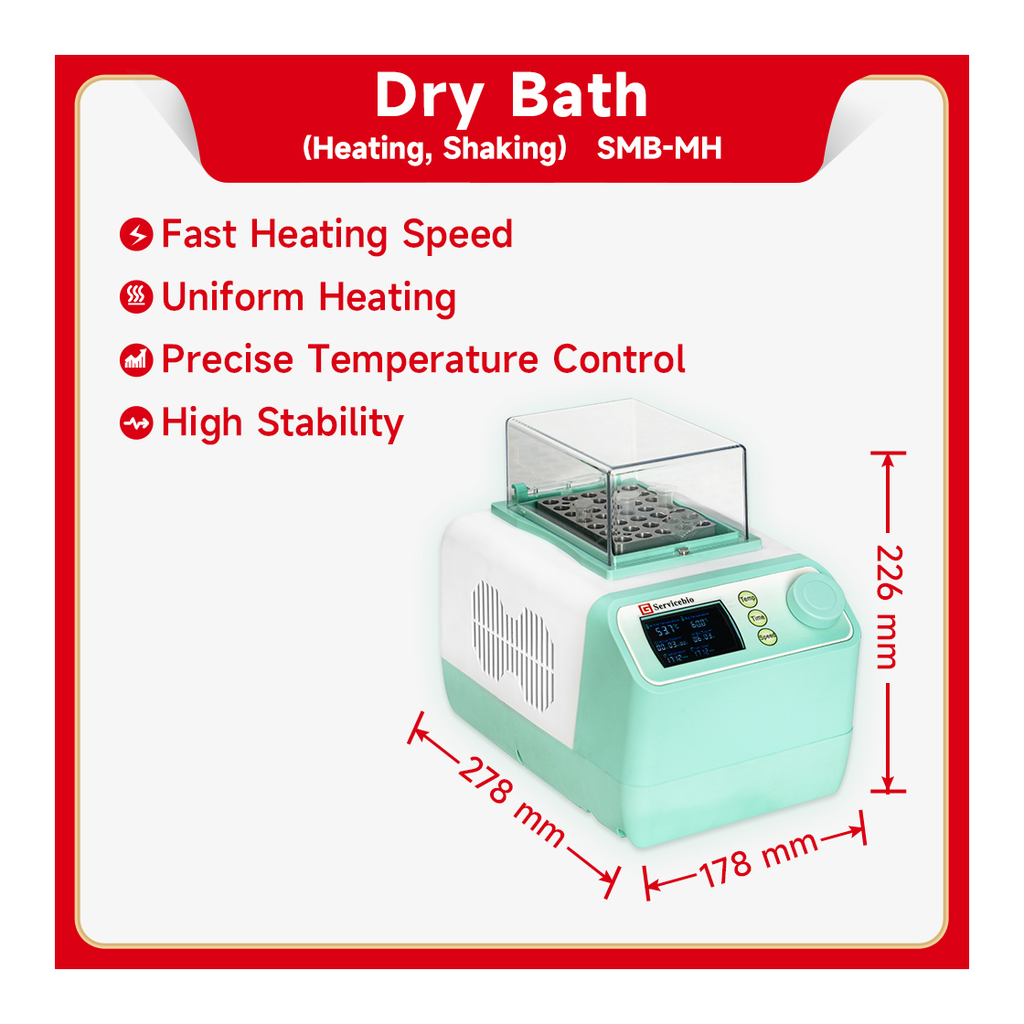

Overall Dimension	175*278*197mm	175*278*197mm	175*278*197mm	175*278*226mm
Net Weight	3.3 kg	2.2 kg	3.3 kg	10.4 kg
