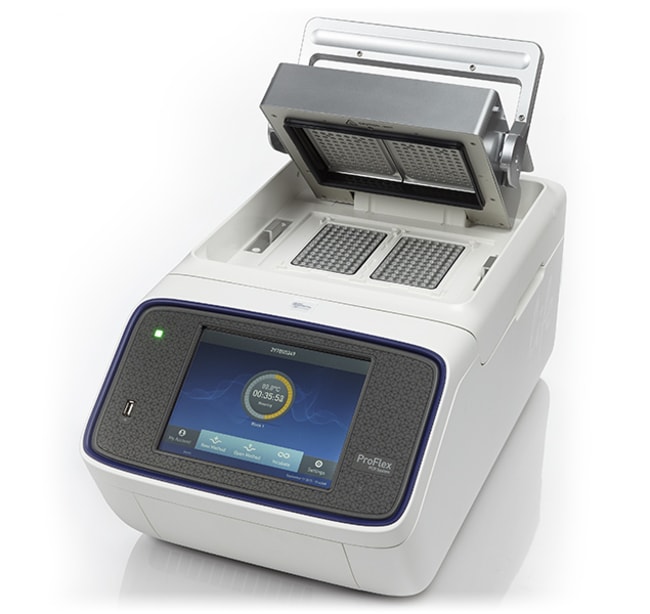

Applied Biosystems™

ProFlex™ PCR System, 2 x 96-well

The ProFlex 2 x 96-well PCR system is the latest in our line of Applied Biosystems thermal cyclers. The ProFlex자세히 알아보기

The ProFlex 2 x 96-well PCR system is the latest in our line of Applied Biosystems thermal cyclers. The ProFlex system combines the reliability and performance you`ve come to expect from Applied Biosystems instruments with the flexible configuration and control features that adapt to your research needs.

The ProFlex 2 x 96-well PCR system allows you to:
• Interchange the 2 x 96-well, 0.2-mL block with another block type if throughput needs change
• Access the system remotely (and conveniently) through a mobile app
• Program the instrument in seconds with a simple-to-use touchscreen interface
• Simulate old instrument with Thermal Simulation modes

Interchangeable blocks
If your research requirements change in the future, or if you share the system with someone who requires a different format, simply remove the 2 x 96-well block from the top of the instrument and exchange it with another block type. This step typically takes less than 15 seconds and requires no tools or kits.

Mobile app connectivity
Have you ever set up all of your PCR reactions, only to find out that the thermal cycler is already in use? Check its availability with a mobile app before you get to the lab. Also download experimental report files, receive alerts, and more.

Simulation modes
The ProFlex PCR System is equipped with simulation modes that mimic your old thermal cycler`s ramp rate. Simulation modes are available for MJ Research PTC 200, Bio-Rad™ C1000, Bio-Rad MyCycler™, Eppendorf™ Mastercycler™, Applied Biosystems 9700, Applied Biosystems 9600, and Applied Biosystems Veriti systems.

8.4-in touch screen control
The simple and intuitive touchscreen interface allows you to program with ease and limits the amount of time spent training yourself and others how to use the system.

사양

블록 형식Interchangeable

열 정확도±0.25°C (35°C to 99.9°C)

고처리량 호환성High-throughput Compatible

열 균일성<0.5°C (20 sec. after reaching 95°C)

반응 속도Fast, Standard

치수22 x 13 x 10.6 in. (56.5 x 33 x 27 cm)

용량2 x 96-well, 0.2 mL

전압100/240 V

디스플레이 유형8.4 in. Color TFT LCD Touchscreen

제품 유형Thermal Cycler

워런티Limited Warranty

열 범위0°C to 100°C

용도(애플리케이션)PCR

프로그램Auto re-start (after Power Outages), Program Overwrite Protection

사용자 인터페이스USB, WiFi, Cloud, Ethernet

최대 램프 속도3°C/sec. (Block), 1.6°C/sec. (Sample)

수량1 instrument

메모리USB and On-board

무게41 lb. (18.8 kg)

블럭 구성2 x 96-well Isothermal Blocks

Unit SizeEach
