Thermo Scientific™

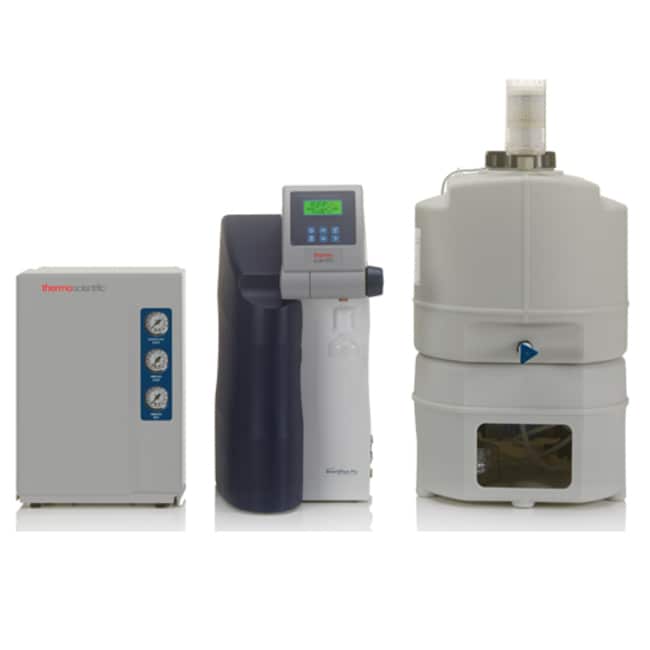

Barnstead™ Smart2Pure™ Pro Water Purification System

All in One ! The Smart2Pure™ Pro system is a compact system which converts tap water to into ASTM Type 1. The Smart2Pure Pro UV/UF 16 LPH offers the choice of a 30 L or 60 L reservoir for customizable storage capacity and ability to dispense both ASTM Type 1 and Type II water.

All in One ! The Smart2Pure™ Pro system is a compact system which converts tap water to into ASTM Type 1. The Smart2Pure Pro UV/UF 16 LPH offers the choice of a 30 L or 60 L reservoir for customizable storage capacity and ability to dispense both ASTM Type 1 and Type II water.

사양

세균 보존0.99

전도도Type 1: 0.055μS/cm and Type II: 0.067 to 0.1μS/cm

박테리아 함량<0.01 CFU/mL

Feedwater Connector3/4 in. NPT and 1/2 in. NPT

급수 모니터링No

급수 소스Tap

유량 속도Up to 1 L/min.

제품 물 유형Type 1 and 2

TOC Monitor with UV Intensity MonitoringNo

총 유기탄소1 to 5 ppb

유형Water Purification System

급수 압력1 to 6 bar

포함Complete system includes Barnstead Pretreatment system with cartridges, RO/pretreatment cartridge, an ultrapure polisher cartridge, sterile 0.1 μm filter, UV lamp, UF filter, 60 L tank, CO2 vent filter, sterile overflow and system wall bracket

모델Smart2Pure Pro 16 UV/UF with 60L Tank - Complete system

작동 압력1 to 6 bar

입자 > 0.2µM/mL<1

투과 성능16 L/hr. at 10°C

전력 소비0.12 kW

RO 유속16 L/hr.

폭(미터법)305 mm

높이(미터법)545 mm

깊이(미터법)300 mm

중량(미터법)22 kg

전기 요구사항100/240 V 50/60 Hz

전압100/240 V

주파수50/60 Hz

Unit SizeEach
