Ion Torrent™

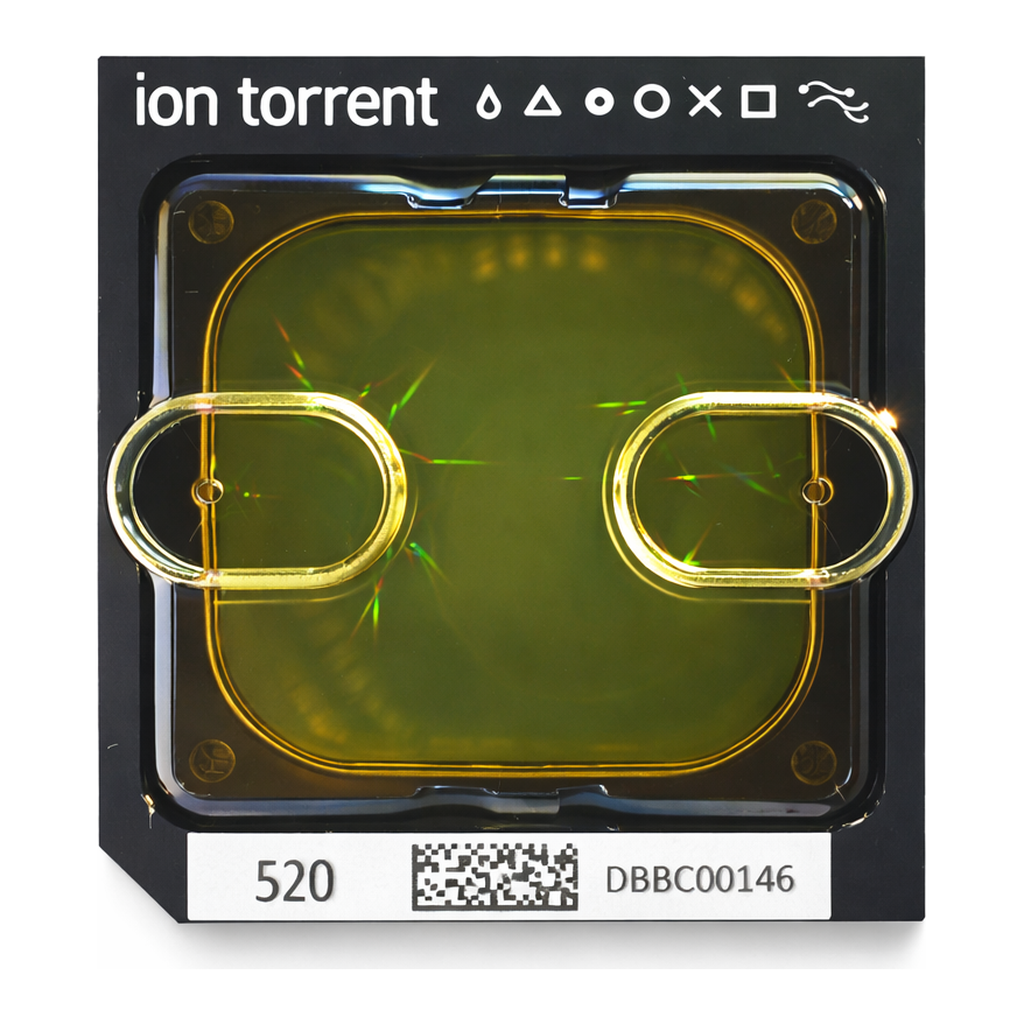

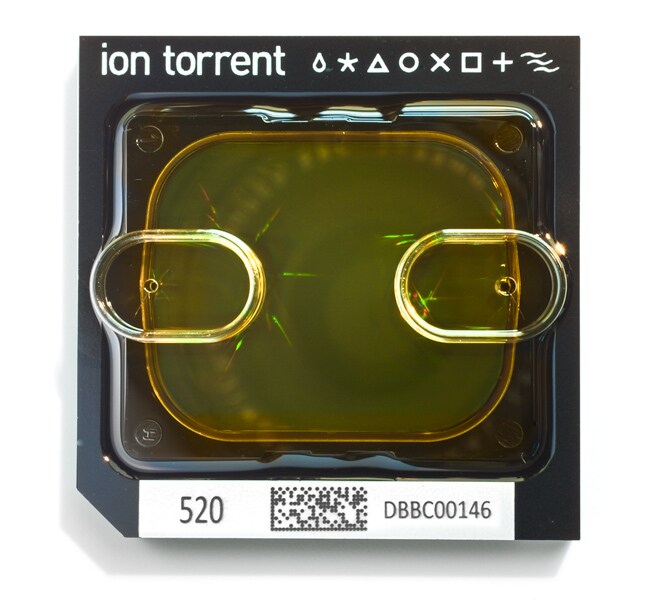

Ion 520™ Chip Kit for Agrigenomics

The Ion 520 Chip Kit contains 8 barcoded chips for sample tracking and sequencing with the Ion S5 and Ion자세히 알아보기

The Ion 520 Chip Kit contains 8 barcoded chips for sample tracking and sequencing with the Ion S5 and Ion S5 XL Sequencing Systems. The Ion 520 Chip electronically detects polymerase-driven base incorporation without the use of fluorescence. By eliminating the use of an optical detection system, this advance in next-generation sequencing technology allows for rapid sequencing times in as little as 2.5 hours for 200 bp sequencing.

The Ion 520 Chip Kit offers:

• Sample tracking functionality from an integrated barcode
• A rapid run time of only 2.5–4 hours, generating 3–6 million reads, depending on application
• Read lengths up to 600 bp to support a variety of research applications, including targeted gene sequencing and microbial sequencing
• Easy handling and loading of templated products for sequencing
• Compatibility with current library preparation methods

Notes:
This kit is only compatible with the Ion S5 and Ion S5 XL systems.
Use this kit with the Ion 510 & Ion 520 & Ion 530 Kit-Chef, the Ion 520 & Ion 530 ExT Kit-Chef, and the Ion 520 & Ion 530 Kit-OT2.

사양

제품라인Ion 520™

용도(장비)Ion GeneStudio S5 System, Ion S5 XL System

칩당 리드 수3-6 Million

제품 유형Chip Kit

수량8 chips

배송 조건Room Temperature

Unit SizeEach
