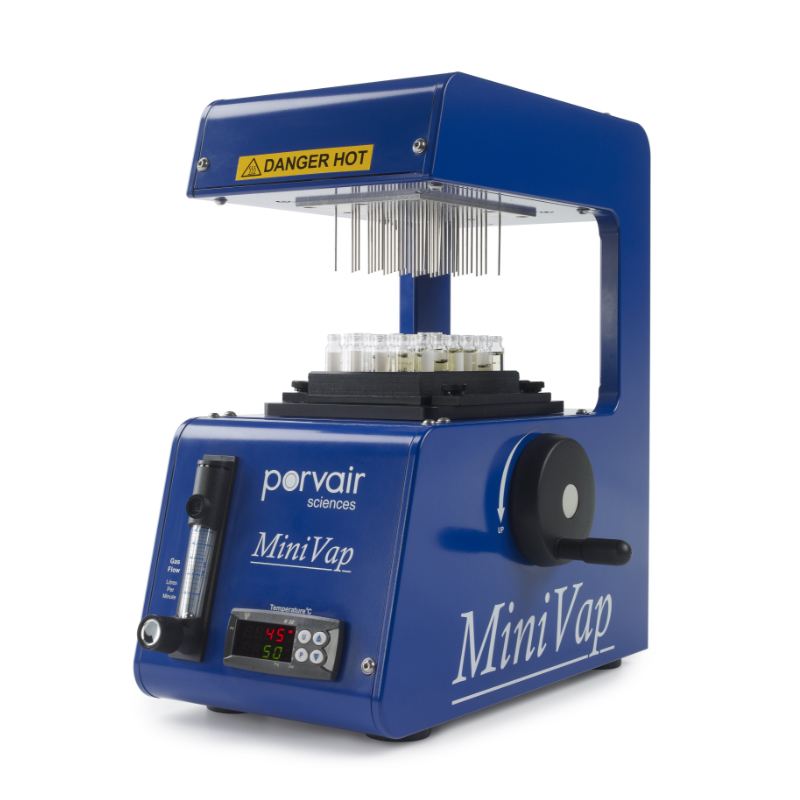

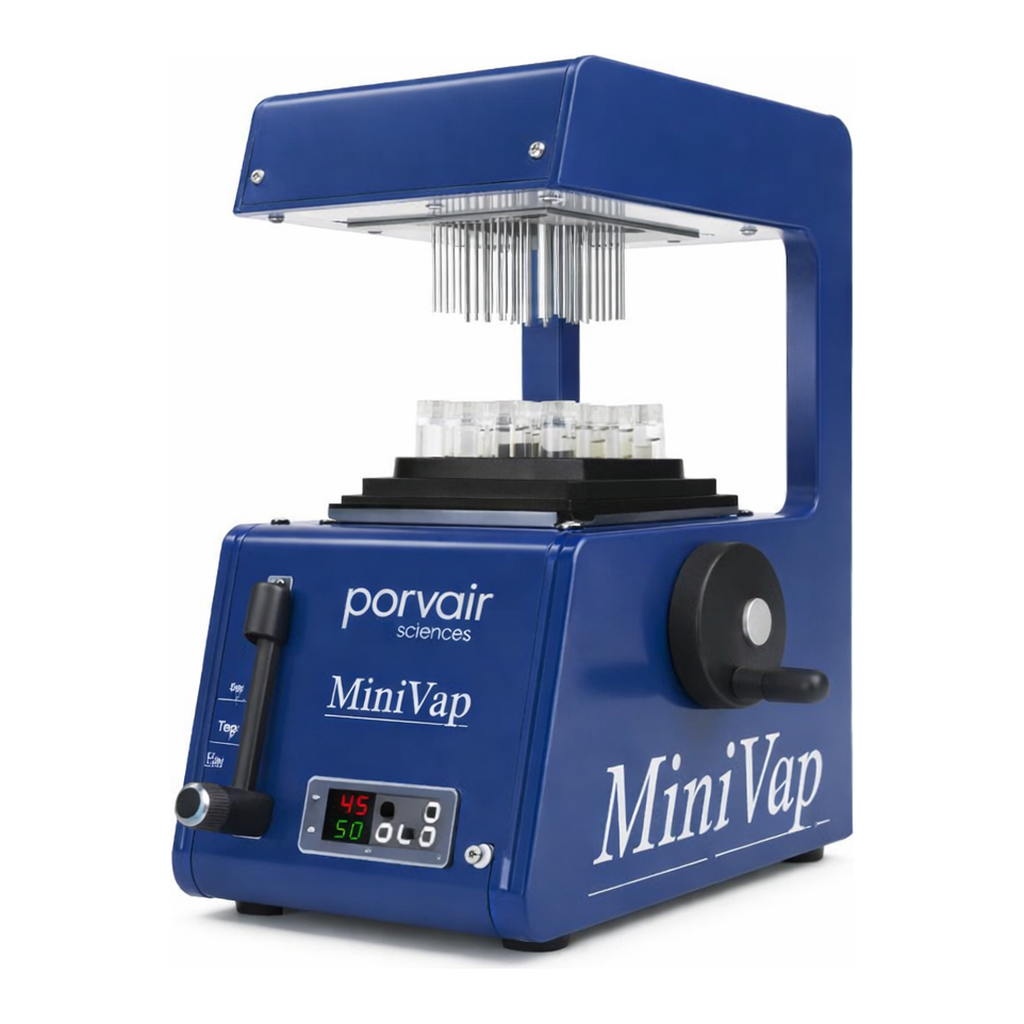

Blowdown Evaporator, Manually Controlled 블로우다운 수동형 농축기, MiniVap
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
■ 소량 건조 시 사용 적합
■ Needle 깊이, Gas temperature, Flow rate 수동 제어 방식
■ 진공 오븐보다 신속한 Dry down time (6분 이내에 500ul methanol 증발 가능)
■ ANSI/SLAS 96-well plate용
■ 24 Vial head 사용 가능
■ Dimethyl sulfoxide 및 Water와 같이 높은 끓는점을 가진 용매 사용 불가
■ Porvair Sciences
- Blowdown Evaporator, MiniVap®
Cat. No | Model | Needle Type | Size |
--- | --- | --- | --- |
E02-494-201 | 229201 | 96 spiral needle | w241×d379.7×h382 mm |
E02-494-211 | 229200 | 96 straight needle | |
E02-494-221 | 229204 | 24 straight needle | |
E02-494-231 | 229206 | without a head |
● 229206는 Needle head 별도 구매형
- Specification
Model Type | MiniVap® |
---|---|
Heaters | Ambient to 60℃ |
--- | --- |
Heater setting | Via TK-32 programmers (2) |
--- | --- |
Evaporation heads | 1 (interchangeable 24, 48, 96 straight or 96 spiral needles) |
--- | --- |
Gas inlet | 6mm |
--- | --- |
Gas pressure | Minimum 3 bar, Maximum 7 bar |
--- | --- |
Gas control | 1 or 2 independent needle valve controls |
--- | --- |
Gas flow rate | Heaters inactive below 35l/min flow rate, max. flow 70L/min PER HEAD |
--- | --- |
Gas requirements | Suuply at 3-7bar and up to 80L/min |
Vertical travel | 80mm (depends on plate height) |
Plate locators | 1 or 2 sets, individually adjustable |
Max. current | 10A |
Voltage | 110V or 220V auto ranging power supply |
- Optional Accessory
Cat. No | Model | Description |
---|---|---|
E02-494-150 | 229072 | Replacement 96 Needle Head with spiral needles |
E02-494-155 | 229036 | Replacement 96 Needle Head with straight needles |
E02-494-165 | 229409 | Replacement 24 Needle Head with straight needles |
E02-494-170 | 229410 | 48 Needle Head straight for use with HPLC vial adaptor |
E02-494-250 | 500109 | Vial adaptor for 48 × 1.5ml HPLC vials, Black polypropylene |
E02-494-255 | 229048 | Gasket for Needle Head manifold |
E02-494-260 | 229650 | 24-well Vial Holder for solid aluminium, id 12mm |
E02-494-265 | 229216 | Disposable Plastic Vial Rack for od 13.75mm × 24 glass vials |
● Spiral needle : 빠른 건조 시 사용, Square-well plate 및 Larger vial에만 사용 가능
● Straight needle : V-well plate에서 더 나은 최종 건조 시 사용
🏷️LK Labkorea 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요

LK Labkorea

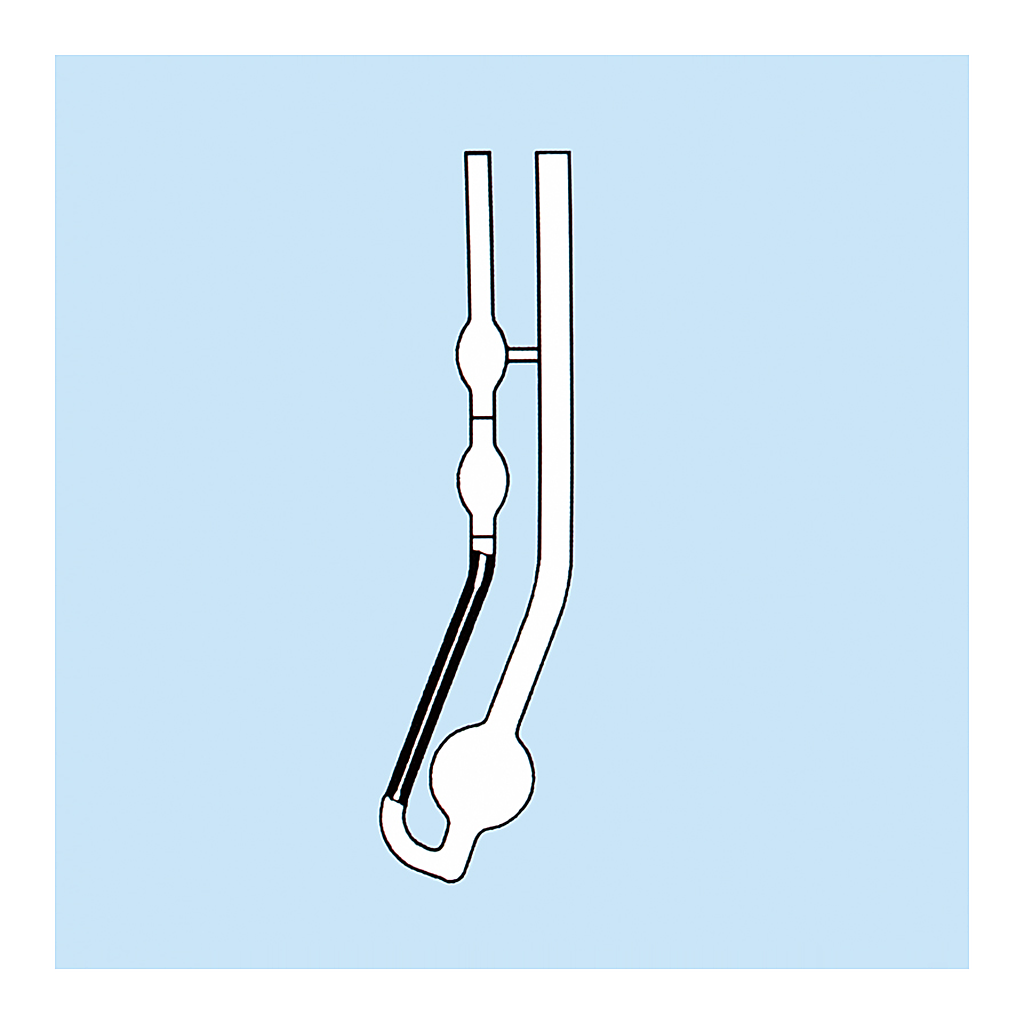

Cannon Fenske Routine Viscometer 기본형 캐논 점도계, ASTM/ISO
