■ 구성 : Evaporator, 5 L Oil Bath, Glassware Set
■ Digital Display : Heating Temperature, Speed Range, Timer
■ 모터 구동 방식으로 Automatic Lift
■ Automatic Release : 전원 이상시 Flask가 자동으로 Top Position 위치
■ 정방향 / 역방향 회전 및 Interval Operation
■ 1700cm²의 Cooling Surface를 가진 Patented Condenser
■ Safety Temperature Cut Off 220℃
■ Chemical Resistant Double PTEE System Sealing
■ Pressure Spring을 통한 Excellent Sealing
■ USB Port 기본 장착, PC Control & Document
■ DLAB Glassware only for RE100 Evaporator ①
| Cat. No |
Model |
Type |
Joint |
| E02-238-101 |

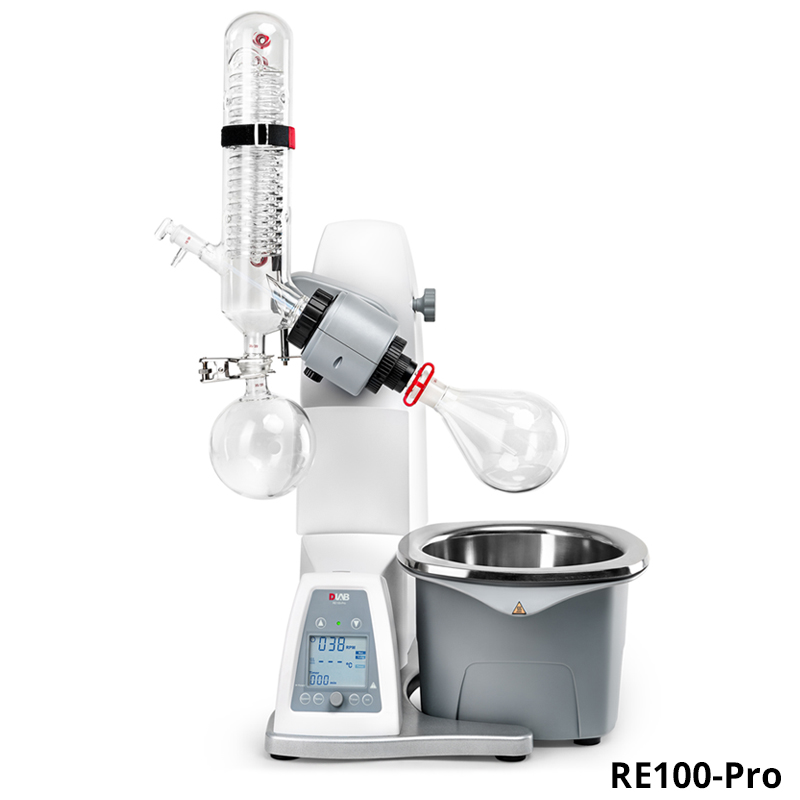

RE100-Pro |
Vertical |
24/40 |
| E02-238-111 |

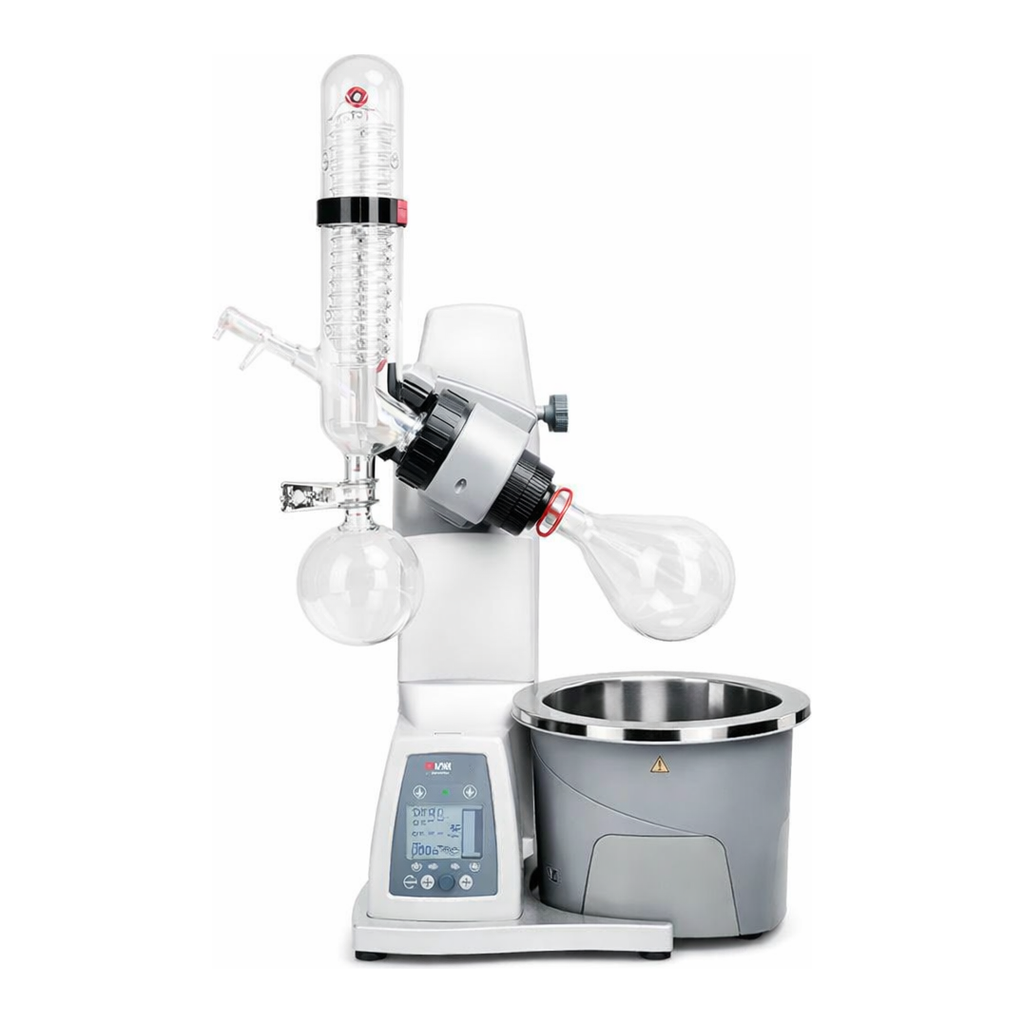

RE100B-Pro |
Diagonal |
|
| E02-238-365 |
18201766 |
Heating Bath for RE100, Spare |
|
|
|
| Model |
RE100 |
| --- |
--- |
| Flask |
up to 2 L Evaporating / up to 2 L Receiving |
| Cooling Surface |
1700 cm2 |
| Motor Type |
Brushless DC Drive Motor |
| Speed Range |
20 ~ 280 rpm |
| Rotation |
Clockwise & Reverse Direction |
| Temperature Range |
RT 180℃, ±1℃ Control Accuracy |
| Heating Power |
1300W |
| Lift |
Automatic, Max.Stroke : 150 mm |
| Timer |
1 ~ 999 min |
| Digital Display |
Temperature / Speed / Timer |
| Connection |
USB |
| Size |
w457×d465×h583 mm, 15 kg |
| Power |
200 ~ 240V, 50/60Hz, 1400 W |
| 사용 조건 |
5 ~ 40℃, 80% Humidity, IP20 |
Glassware only for RE100 Evaporator ①
| Cat. No |
Model |
Type |
Joint |
| E02-238-201 |
18900173 |
Vertical Glassware |
24/40 |
| E02-238-205 |
18900171 |
Diagonal Glassware |
|
● 구성 : Condenser, 1 L Evaporating Flask, 1L Receving Flask, Stopper, Connector
● 냉각 면적 : 1700 cm2
Vapor Tube for RE100 Evaporator ②
| Cat. No |
Model |
Description |
| E02-238-237 |
18300206 |
Vapor Tube 24/40 |
Airtight Seal for RE100 Evaporator ③
| Cat. No |
Model |
Description |
| E02-238-241 |
18100926 |
Standard, Rubber Ring with PTFE Compound with a built-in SS Spring |
| E02-238-341 |
18900362 |
FFKM Seal for Highly Abrasive Solutions |
Vacuum Regulator & Moisture Trap ④
| Cat. No |
Model |
Description |
| E02-238-243 |
18900186 |
Vacuum Gauge Pressure Valve |
