■ 용도 : Filtration, Rotary Evaporator, Vacuum Oven용
■ Pump & Diaphragm 재질 : PTFE 테프론
■ Water Jet Pump나 Aspirator 대체용
■ 100% Oil-Free로 유체의 오염 없는 이송, 배기, 압축에 이상적
■ Chemical Resistant Diaphragm Pumps (for Solvent and Acid Vapor)
■ Oil Free, Low Noise Level
■ 공기, 중성가스 또는 부식성가스, 증기 등을 흡입, 이송, 압축
■ 작고, 가벼운 세련된 디자인으로 환경친화적임
■ Welch-Ilmvac
|
|
|
|
| Cat. No |
Model |
유량 |
최대 진공 |
| --- |
--- |
--- |
--- |
| P06-750-222 |

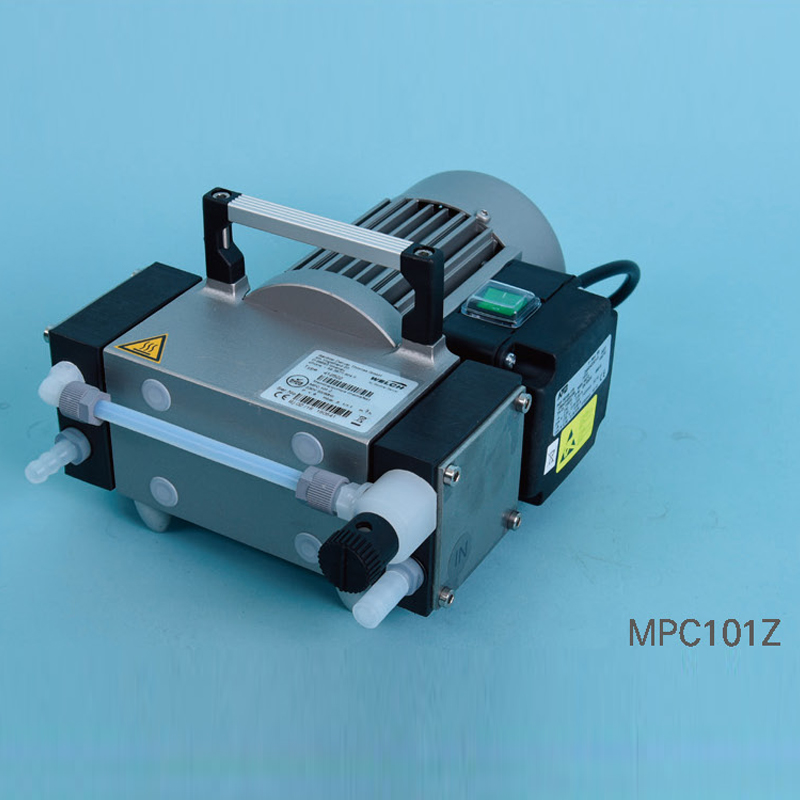

MPC101Z |
18 L/min |
8 mbar |
| P06-750-228 |
MPC105T |
20 L/min |
2 mbar |
| P06-750-234 |
MPC201T |
36 L/min |
2 mbar |
| P06-750-240 |
MPC301Z |
41 L/min |
8 mbar |
| P06-750-243 |
MPC302Z |
52 L/min |
5 mbar |
| P06-750-246 |
MPC601T |
81 L/min |
2 mbar |
| P06-750-252 |
MPC901Z |
125 L/min |
8 mbar |
| P06-750-258 |
MPC1201E |
151 L/min |
75 mbar |
| P06-750-270 |
MPC1801Z |
222 L/min |
8 mbar |
| Cat. No |
P06-750-222 |
P06-750-228 |
P06-750-234 |
| Model |
MPC101Z |
MPC105T |
MPC201T |
| --- |
--- |
--- |
--- |
| Pumping Speed |
18 L/min |
20 L/min |
36 L/min |
| 최대진공도 |
8 mbar |
2 mbar |
2 mbar |
| Stage |
2 |
3 |
3 |
| 사용 Tubing |
ID 8 mm |
|
|
| Hose Connector |
DN 8 |
|
|
| Motor Power |
60W |
68W |
90W |
| Weight |
6.5kg |
7.5kg |
10.3kg |
| Size (w×d×h, mm) |
235×195×147 |
145×235×327 |
260×200×150 |
| Voltage |
115/230V,
50/60Hz |
90 ~ 260V,
50/60Hz |
230V, 50/60Hz |
| Cat. No |
P06-750-240 |
P06-750-243 |
P06-750-246 |
| Model |
MPC301Z |
MPC302Z |
MPC601T |
| --- |
--- |
--- |
--- |
| Pumping Speed |
41 L/min |
52 L/min |
81 L/min |
| Ultimate Pressure |
8 mbar |
5 mbar |
2 mbar |
| Stage |
2 |
|
3 |
| 사용 Tubing |
ID 8 mm |
|
|
| Hose Connector |
DN 8 |
|
|
| Motor Power |
180 W |
|
370 W |
| Weight |
11.2 kg |
|
18.3 kg |
| Size (w×d×h, mm) |
230×260×171 |
233×260×171 |
380×230×169 |
| Voltage |
230V, 50/60Hz |
|
230V, 50/60Hz |
| Cat. No |
P06-750-252 |
P06-750-258 |
P06-750-270 |
| Model |
MPC901Z |
MPC1201E |
MPC1801Z |
| --- |
--- |
--- |
--- |
| Pumping Speed |
125 L/min |
151 L/min |
222 L/min |
| Ultimate Pressure |
8 mbar |
75 mbar |
8 mbar |
| Stage |
2 |
1 |
2 |
| 사용 Tubing |
ID 8mm |
|
Hose Connector |
| Hose Connector |
DN 8 |
|
DN 16 KF |
| Motor Power |
370W |
|
|
| Weight |
18.3kg |
|
32.8kg |
| Size (w×d×h, mm) |
380×230×170 |
|
540×300×240 |
| Voltage |
230V, 50/60Hz |
|
|
Vacuum Regulator with Dial Gauge
| Cat. No |
Model |
적용 펌프 |
| P06-750-949 |
700458 |
MPC101Z, MPC201T, MPC301Z |
| P06-750-951 |
700459 |
MPC105T |
