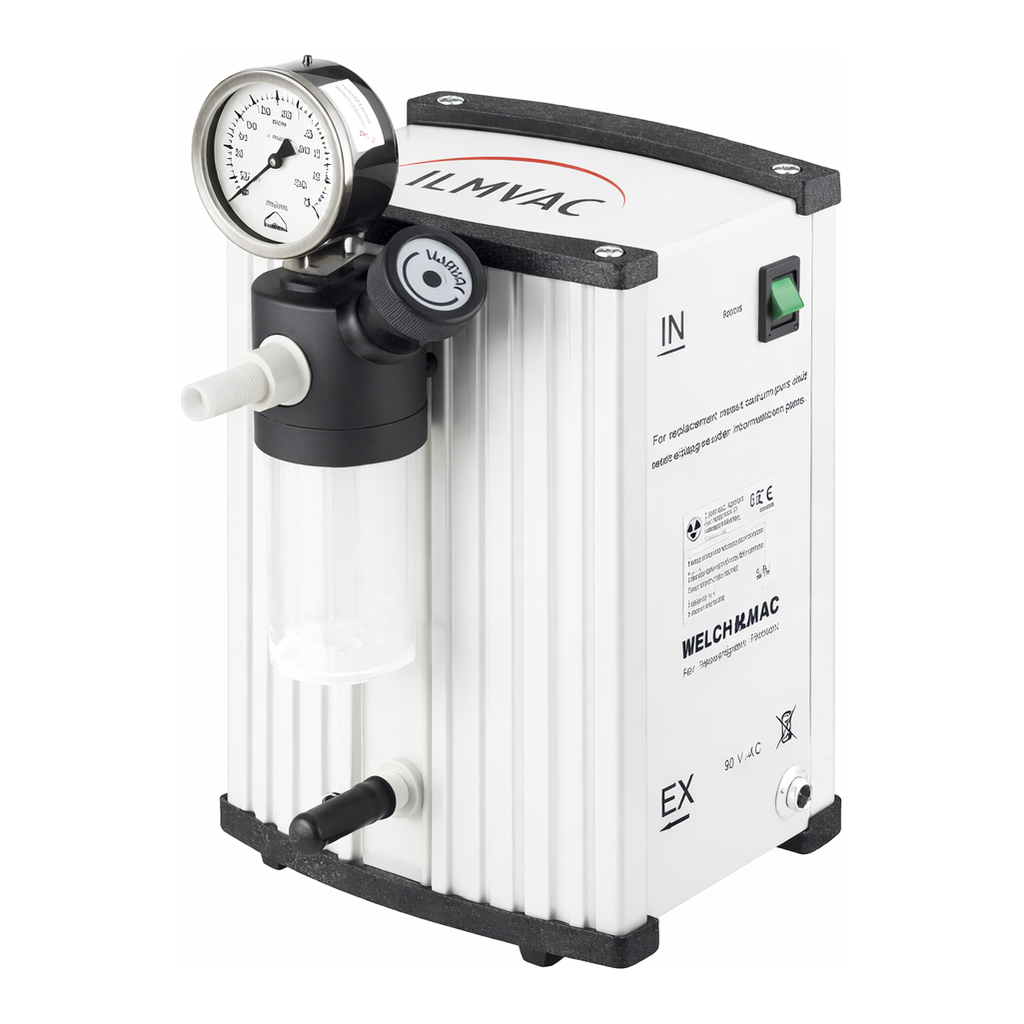

■ 용도 : 소량의 Filtration, Drying, Degassing 용
■ 내화학용으로 Acid 및 Solvent Vapor에 강한 내성을 가짐
■ Water Jet Pump나 Aspirator 대체용 (진공조절 가능)
■ 100% Oil-Free로 유체의 오염 없는 이송, 배기, 압축에 이상적
■ PTFE Diaphragm
■ Head PTFE daped with carbon
■ Connector : PVDF & PP
■ Vacuum Regulator 포함
■ 작고, 가벼운 세련된 디자인으로 환경친화적임
■ Welch-Ilmvac
|
|
|
|
|
| Cat. No |
Model |
유량 |
최대진공도 |
Type |
| --- |
--- |
--- |
--- |
--- |
| P06-750-092 |
MPC090E |
15L/min |
100 mbar |
내화학용 |
|
|
| Cat. No |
P06-750-092 |
| --- |
--- |
| Model |
MPC090E |
| --- |
--- |
| Type |
내화학용 |
| --- |
--- |
| Pumping Speed |
15 L/min |
| --- |
--- |
| Ultimate Pressure |
100 mbar |
| --- |
--- |
| 사용 Tubing |
ID 8mm |
| --- |
--- |
| Head Material |
PTFE Doped with Carbon |
| --- |
--- |
| Diaphragm Material |
PTFE |
| --- |
--- |
| Valve Material |
PVDF & PP |
| --- |
--- |
| Size |
w144 X d127 X h244mm |
| --- |
--- |
| Voltage |
90 ~ 260V, 50/60Hz |
