■ 화학물질에 강한 저항성을 가지는 Ceramic Plate

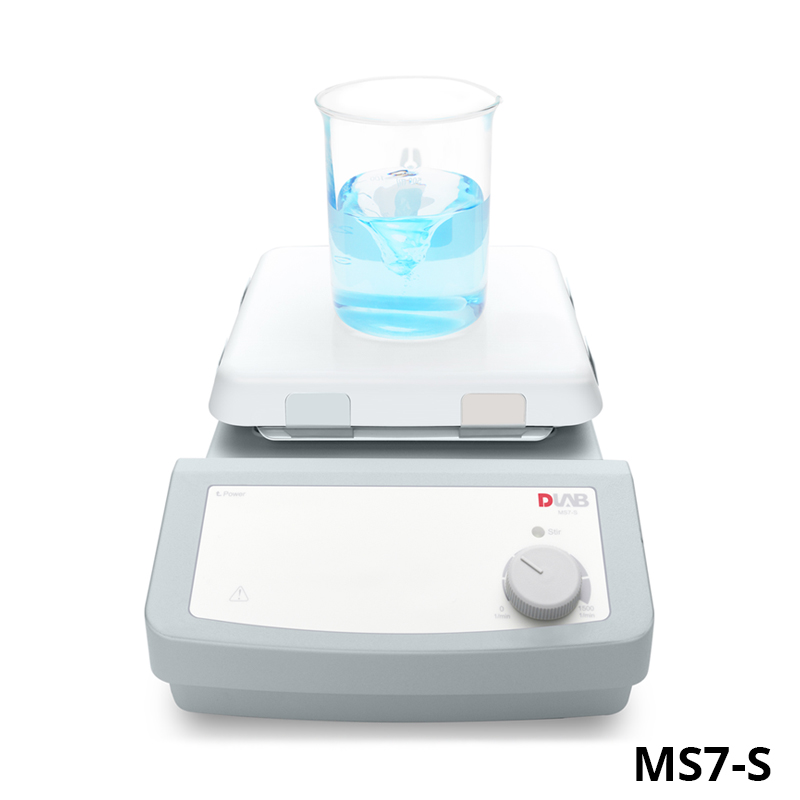

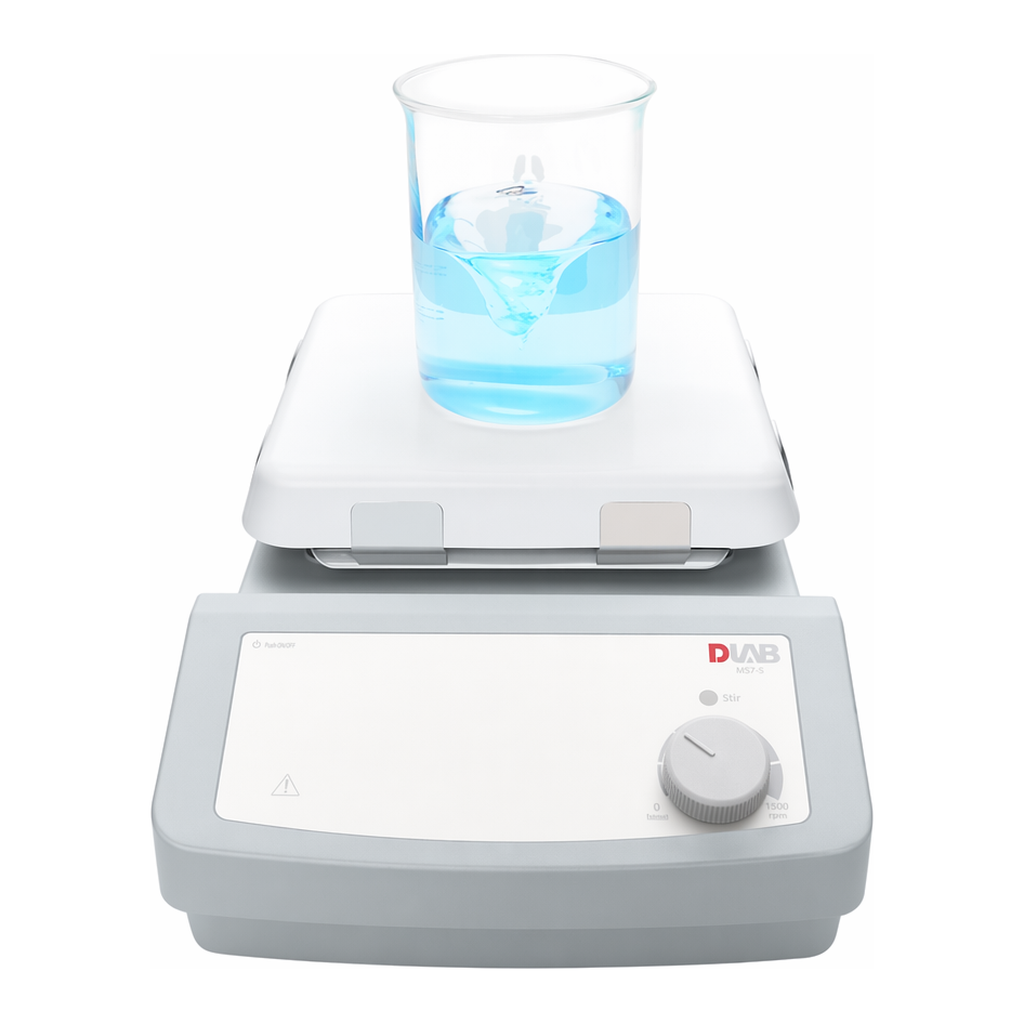

- MS7-S : Glass Ceramic
- MS-S : Stainless Steel Cover with Ceramic
■ Operatino Condition : 5 ~ 40 ºC (at 80% RH)
■ Stirring Power : 30W
■ DLAB
| | | | |
| --- | --- | --- | --- |가열 자력 교반기, C-Mag HS Digital
| Cat. No | Model | 용량 | Plate Size |
| --- | --- | --- | --- |
| S08-238-305 | MS7-S | 10 L | 184×184 mm |
| S08-238-310 | MS-S | 20 L | Ø135 mm |
| | | |
| --- | --- | --- |Tool/Dispersing Element for T10 basic
| Cat. No. | | S08-238-305 | S08-238-310 |
| --- | --- | --- |
| Model | | MS7-S | MS-S |
| --- | --- | --- |
| Motor Type | | Shaded Pole Motor | Brushless DC Motor |
| Stirring Quantity(H2O) | | 10 L | 20 L |
| Speed Range | | 0 ~ 1500 rpm | |
| Motor Input/Output | | 15W/1.5W | 18W/10W |
| Max. Magnetic Bar | | 80 mm | |
| Plate Meterial | | Glass Ceramic | Stainless Steel Cover with Ceramic |
| Size | | w215×d360×h112 mm | w160×d280×h85 mm |
| Power | | 200 ~ 240V, 50/60 Hz | 100 ~ 240V, 50/60Hz |
