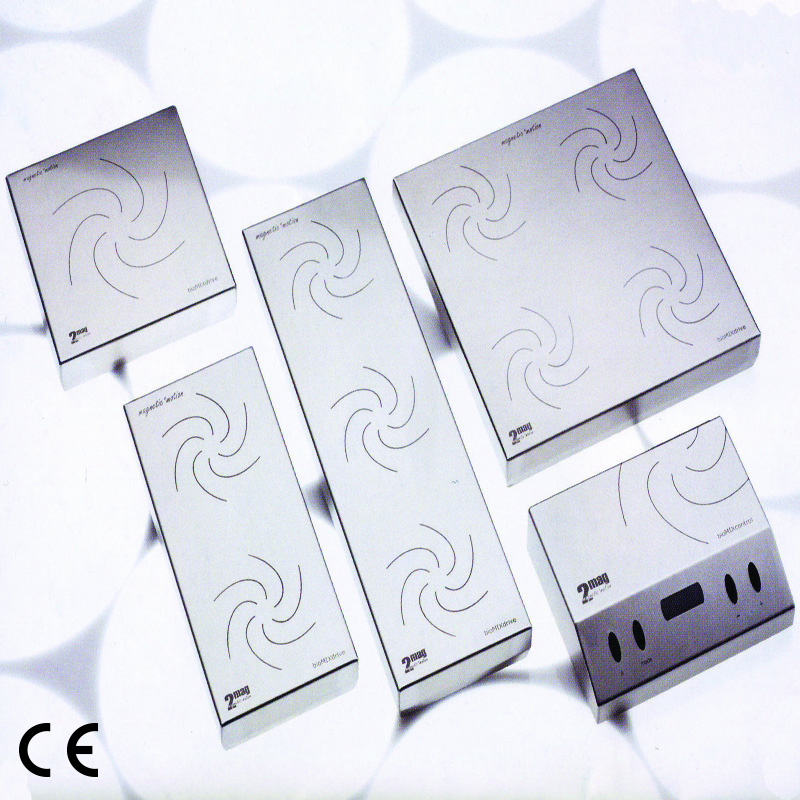

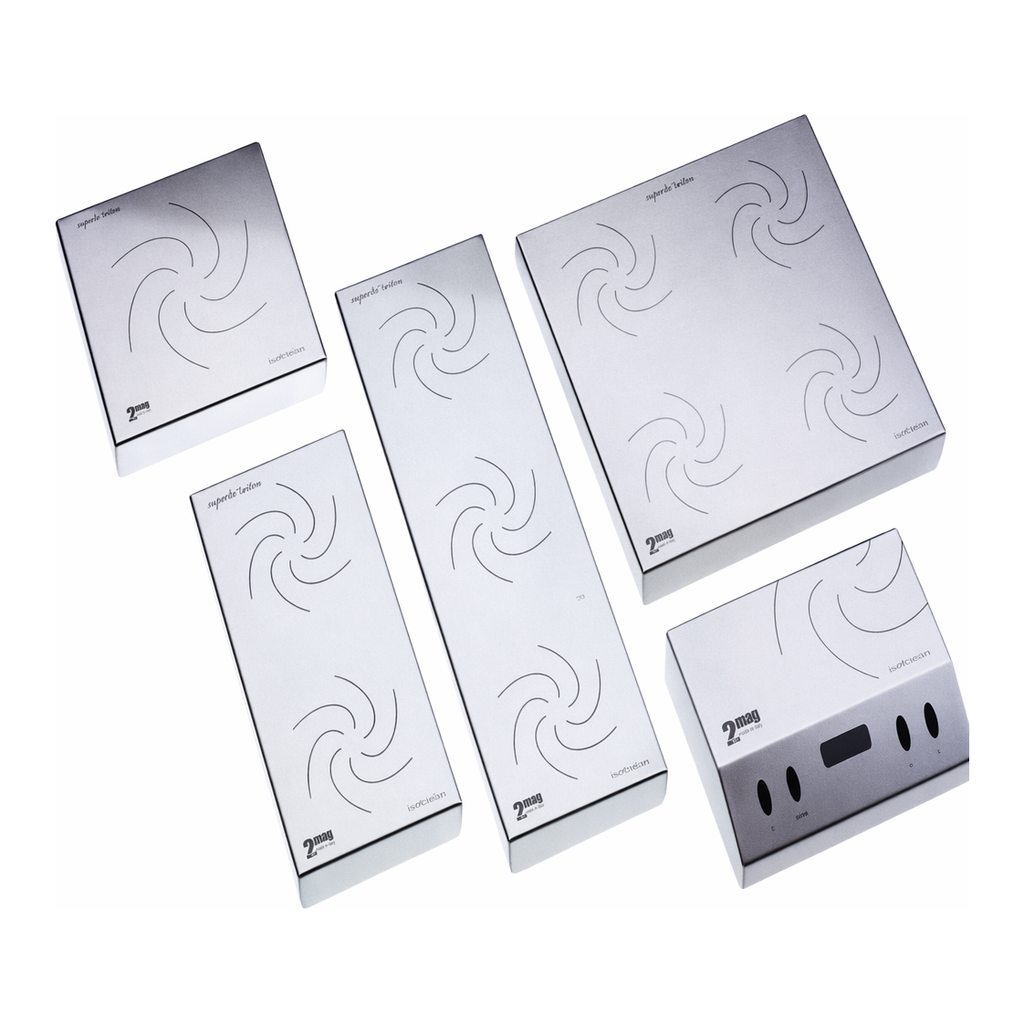

■ Cell Culture나 Tissue Culture용
■ Stainless Steel 재질
■ 극저속, 고점도, 대용량 및 장시간 사용에서도 안정적인 교반력을 가짐/
■ Digital Display, Soft Start, Jerk-free Stirring
■ 외부 조절기(External Controller)는 별도 구매
■ 2 mag
|
|
|
|
| Cat.No. |
Model |
Stirring Point |
speed |
| --- |
--- |
--- |
--- |
| S08-75-425 |
80001 |
1 |
5 ~ 250 rpm |
| --- |
--- |
--- |
--- |
| S08-75-429 |
80002 |
2 |
|
| --- |
--- |
--- |
--- |
| S08-75-433 |
80003 |
3 |
|
| --- |
--- |
--- |
--- |
| S08-75-437 |
80004 |
4 |
|
| --- |
--- |
--- |
--- |
|
|
|
|
|
| Cat. No. |
S08-75-425 |
S08-75-429 |
S08-75-433 |
S08-75-437 |
| --- |
--- |
--- |
--- |
--- |
| Model |
80001 |
80002 |
80003 |
80004 |
| --- |
--- |
--- |
--- |
--- |
| Stirring Point |
1 |
2 |
3 |
4 |
| --- |
--- |
--- |
--- |
--- |
| Stirring Point Distance |
- |
140 mm |
|
|
| --- |
--- |
--- |
--- |
--- |
| Stirring Volume / Power |
5 ~ 5,000 ml / Max 5W per Position |
|
|
|
| --- |
--- |
--- |
--- |
--- |
| Speed Range |
5 ~250 rpm |
|
|
|
| --- |
--- |
--- |
--- |
--- |
| Operation Condition |
Air : -10 up to +50℃ (at 100% Humidity) / Water : +50℃ Submerged in Water |
|
|
|
| --- |
--- |
--- |
--- |
--- |
| Operating Voltage |
48 VDC |
|
|
|
| --- |
--- |
--- |
--- |
--- |
| Size (w×d×h) |
180×180×38 mm |
130×270×38 mm |
130×410×38 mm |
270×270×38 mm |
| --- |
--- |
--- |
--- |
--- |
| Protection Category |
IP 68 |
|
|
|
| --- |
--- |
--- |
--- |
--- |
Control Unit for Cell Culture Magnetic Stirrer
| Cat.No. |
Model |
Application |
Power |
Type |
| S08-75-941 |
98400 |
8000X-series |
40 W |
Digital |
| --- |
--- |
--- |
--- |
--- |
● 셀 컬쳐 자력 교반기용 조절기
● 느린 속도에서 부드러운 교반
● 고점도 대용량에 적합
● 주요용도 : Developed for the hard daily lab and uncompromising warming-free continous operation
|
|
| Cat. No. |
S08-75-941 |
| --- |
--- |
| Model |
98400 |
| --- |
--- |
| 연결 가능 Mixdrive 수 |
1 |
| --- |
--- |
| Speed Range |
5 ~ 250 rpm |
| --- |
--- |
| Stirring Power |
Max. 40 W (10 - step) |
| --- |
--- |
| Material Housing |
Stainless Steel |
| --- |
--- |
| Electrical Data |
100 ~ 240V / 50 ~ 60 Hz / 1.5 A |
| --- |
--- |
| Size |
w200×d155×h38 mm |
| --- |
--- |
| Protection Category |
IP 20 |
| --- |
--- |
