■ 200 L 까지의 대용량 믹싱용 Stirrer
■ 100,000 mPas까지의 High Viscosity를 가진 Stirrer
■ 2단 기어 방식으로 고점도용과 고속용의 2가지 Speed Range를 가짐
■ 과부하 보호 기능
■ Plug와 Cable은 별도 구매 장착해야 함

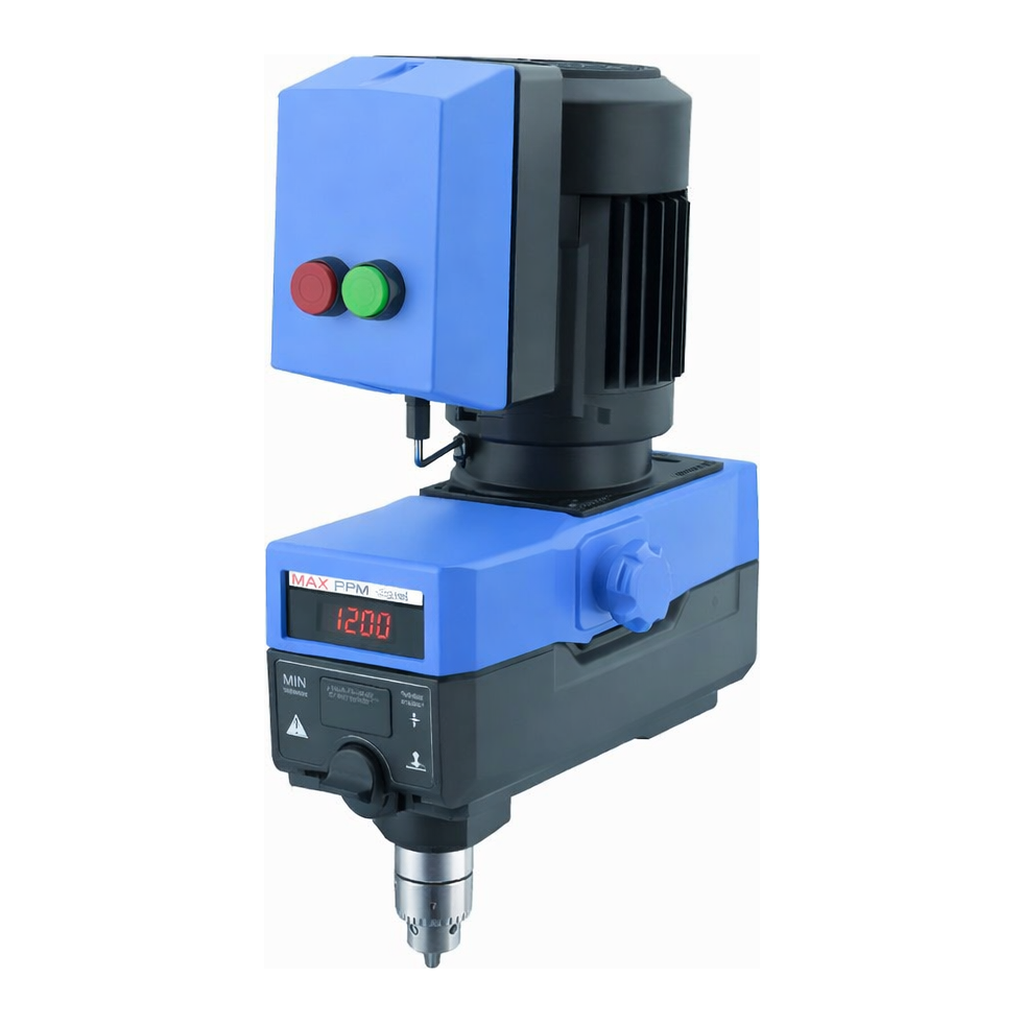

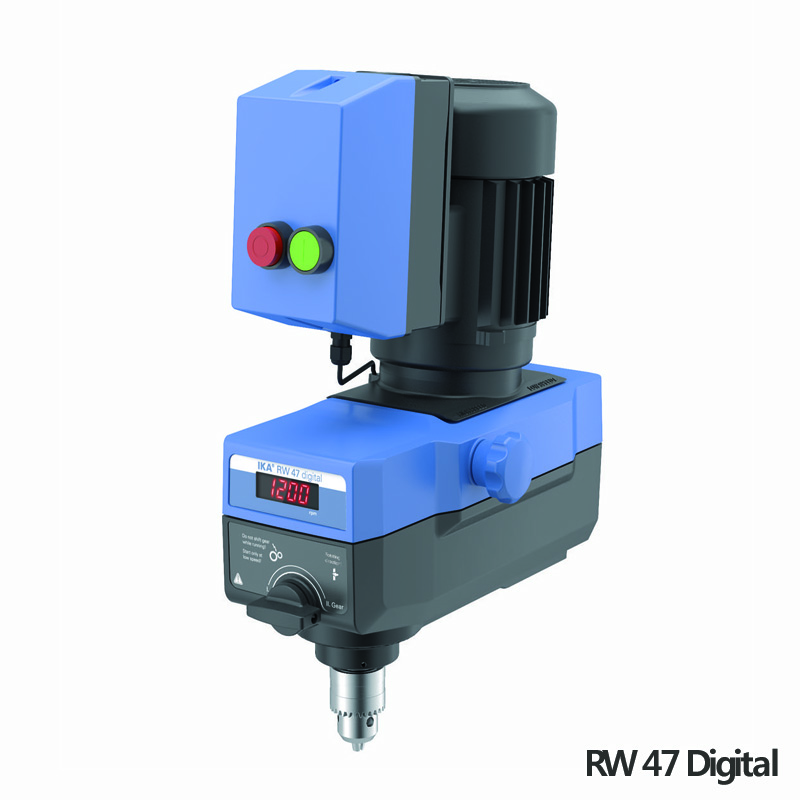

■ RW 47 digital Package
- RW 47 digital

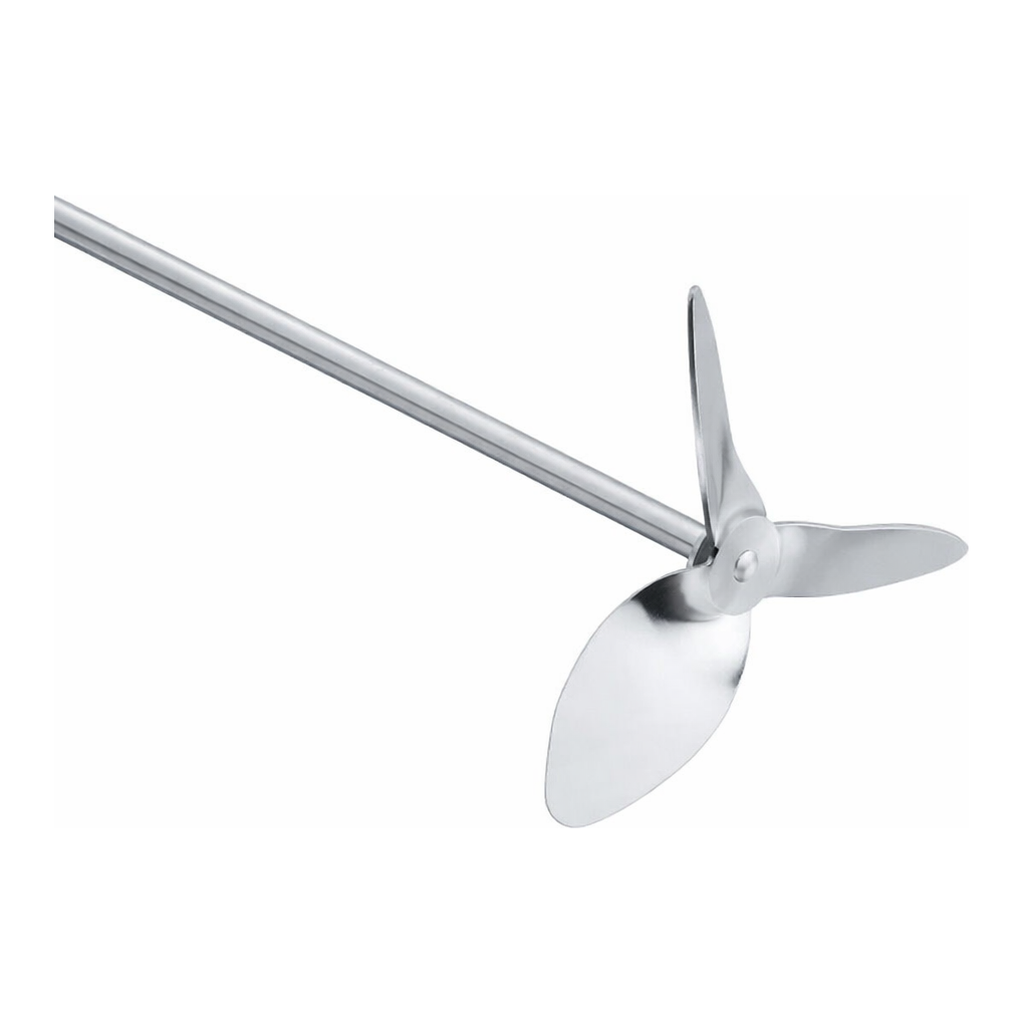

- R474 : Telescope Stand - R1385 : Propeller Type Impeller
■ Protection class acc. to DIN EN 60529 (IP54
■ IKA
|
|
|
|
| Cat. No. |
Model |
Type |
용량 |
| --- |
--- |
--- |
--- |
| S09-05-270 |
4050000 |
RW 47 digital |
200 L |
| --- |
--- |
--- |
--- |
| S09-05-182 |
9023300 |
RW 47 digital Pack |
|
| --- |
--- |
--- |
--- |
|
|
| Cat. No. |
S09-05-270 |
| --- |
--- |
| Type |
RW 47 digital |
| --- |
--- |
| Stirring Capacity (H₂O) |
200 L |
| --- |
--- |
| Speed Range (60Hz) |
(Range 1) 69 ~ 330 rpm / (Range 2) 330 ~ 1,560 |
| --- |
--- |
| Speed Display |
LED |
| --- |
--- |
| Max. Viscosity |
100,000 mPas |
| --- |
--- |
| Motor Rating Input |
513 W |
| --- |
--- |
| Motor Rating Output |
370 W |
| --- |
--- |
| Max. Torque at Chuck |
3000 Ncm |
| --- |
--- |
| Chuck Range |
3 ~ 16 mm |
| --- |
--- |
| Hollow Shaft |
NO |
| --- |
--- |
| 허용 온도 |
5 ~ 40˚C |
| --- |
--- |
| Size |
w145×d358×h465 mm |
| --- |
--- |
| Weight |
16 kg |
| --- |
--- |
| Power |
400V 삼상, 50/60 Hz |
| --- |
--- |
대형 스탠드 for RW 47 digital
| Cat.No. |
Model |
Type |
Plate Size |
Height |
| S09-05-803 |
1643000 |
R474 |
w460×d530 mm |
1200 mm |
| --- |
--- |
--- |
--- |
--- |
| S09-05-810 |
0738700 |
R472 |
- |
2020 mm |
| --- |
--- |
--- |
--- |
--- |
● R474는 장착된 Motor의 높낮이 조절요 Pneumatic Spring기본 장착 (Stroke : 500 ~ 1,000 mm)
● R472는 Mobile type으로 바퀴가 부착되어져 있음(Stroke : 980 ~1,860 mm)
