● B-150 시리즈는 ALC(Automatic light control) 시스템으로 편안한 실험조건, 미세 초점과 밝기 제어함
● 간단한 3단계 셋팅
1. 선호하는 밝기를 선택
2. ALC 버튼을 눌러 밝기 레벨 조절
3. 렌즈를 변경 하거나 조리개를 닫음 (현미경은 동일한 광도를 유지함)
● 같은 렌즈로 오일과 물을 같이 사용 가능함
- 오일은 최상의 수치를 얻을 수 있는 최고의 메디아 이며,
물은 적절한 결과와 편리함을 동시에 얻을수 있다.
따라서 물은 교육용으로 사용하기를 권장한다.
● LED Long Life Time (65,000 시간)
● Head는 360°회전이 가능하며, 30°기울어져 있어 관찰이 용이함
● 눈과 눈사이의 거리(Interpupillary)를 조절할 수 있어 누구나 쉽게 관찰 할 수 있음 (Binocula)
● WF10X/18 mm 렌즈로 안경을 착용한 채로 관찰 할 수 있음
● 구성품 : 본체 + 접안렌즈(Eyepiece) + 대물렌즈(Achromatic Objective)
● Optika Microscope
Cat. No |
Model |
objective |
NosePiece |
M02-29-280 |
B-151ALC |
400x(40x,100x,400x) |
3-Position |
M02-29-282 |
B-153ALC |
600x(40x,100x,400x,600x) |
4-Position |
M02-29-284 |
B-155ALC |
1000x(40x,100x,400x,1000x) |
|
Cat. No |
Model |
objective |
NosePiece |
M02-29-286 |
B-157ALC |
600x(40x,100x,400x,600x) |
4-Position |
M02-29-288 |
B-159ALC |
1000x(40x,100x,400x,1000x) |
|
|
|
|
|
|
|
|

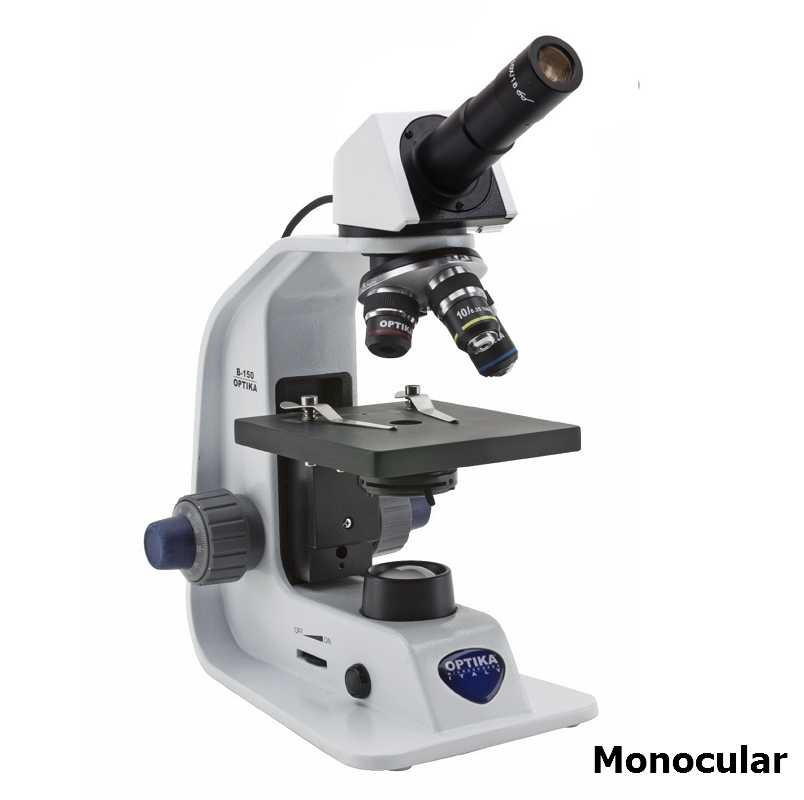

Monocular Type |
|
|
Binocular Type |
|
--- |
--- |
--- |
--- |
--- |
--- |
Cat. No. |
M02-29-280 |
M02-29-282 |
M02-29-284 |
M02-29-286 |
M02-29-288 |
--- |
--- |
--- |
--- |
--- |
--- |
Model |
B-151ALC |
B-153ALC |
B-155ALC |
B-157ALC |
B-159ALC |
--- |
--- |
--- |
--- |
--- |
--- |
Observation Mode |
Brightfield |
|
|
|
|
Eyepiece |
WF10X/18 mm |
|
|
|
|
Nosepiece |
4-Position |
|
|
|
|
Specimen Stage |
Fixed, 130x120 mm |
Mechnical 125 x 116 mm 70x30 mm X-Y movement |
|
Mechnical 125 x 116 mm 70x30 mm X-Y movement |
|
Objective |
HC 4X,10X, 40X |
HC 4X,10X,40X,60X |
HC 4X,10X,40X,100X |
HC 4X,10X,40X.60X |
HC 4X,10X,40X,100X |
Focusing System |
Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob. |
|
|
|
|
Condenser |
N.A. 0.65, pre-centered, fixed with iris diaphragm. |
Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm. |
|
|
|
IIlumination |
X-LED1 with white 1 W LED and light intensity control. |
|
|
|
|
