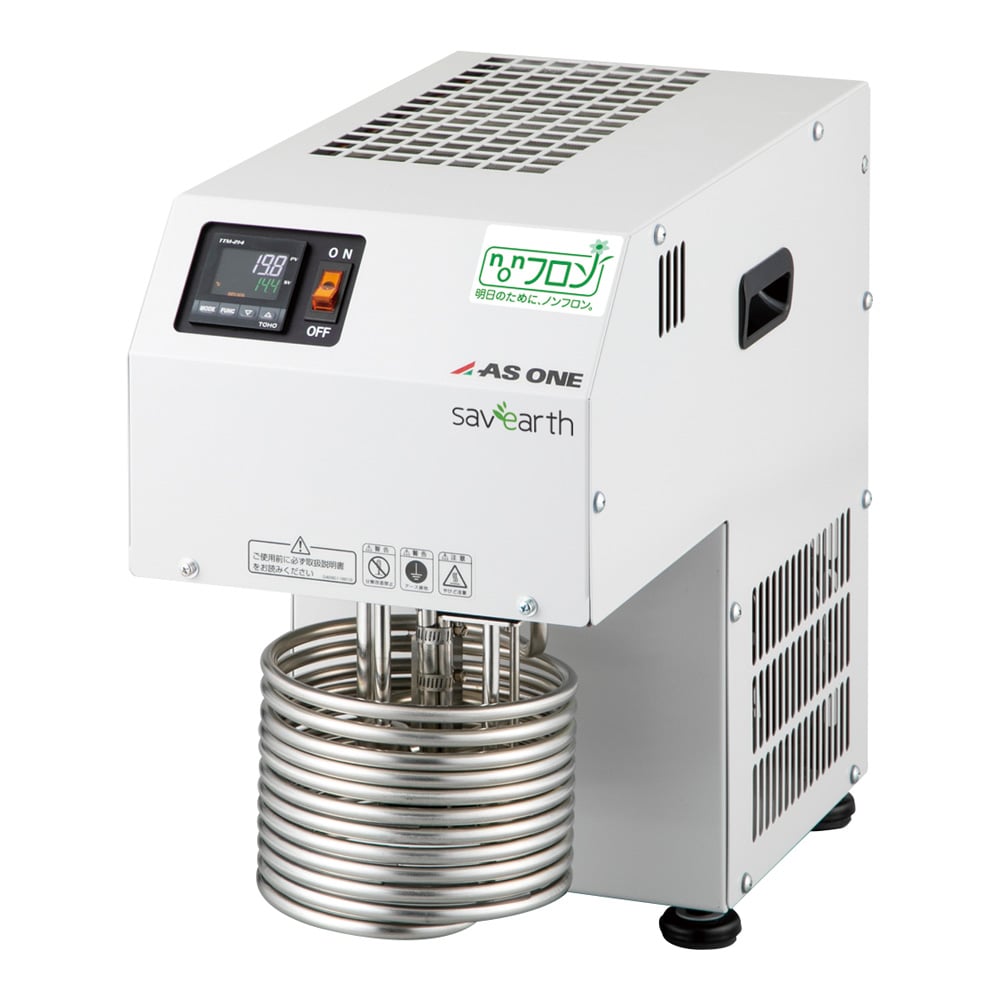

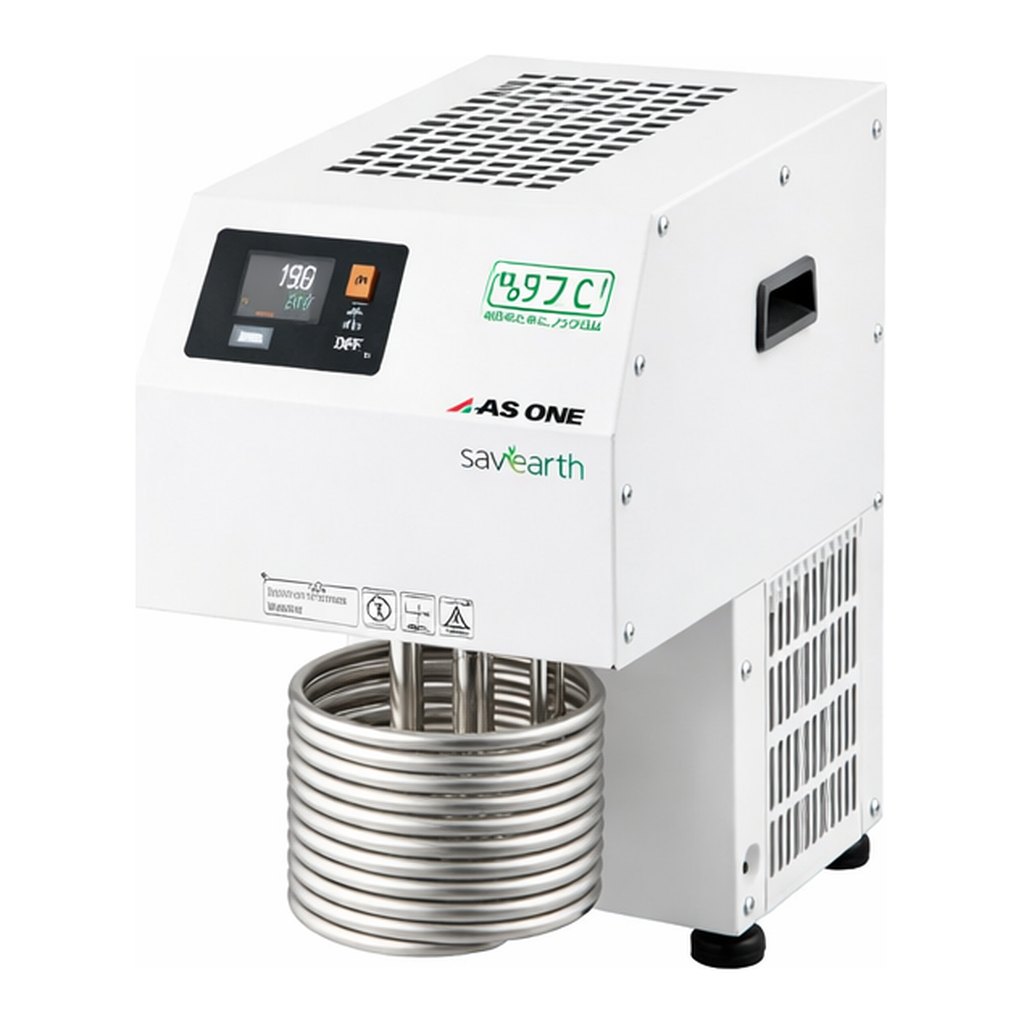

AS ONE 4-3907-01 Non-front Cool Unit　LCM250A

Features

• It uses R1234yf, an environmentally friendly non-CFC refrigerant with an ozone depletion potential of 0 and a global warming potential of less than 1.
• It can be cooled by simply putting a cooling coil in the water tank.
• Since it is not subject to the CFC Emission Control Law, periodic inspections, record keeping, and CFC disposal costs are no longer required.
• Stirring function is standard.

Spec

• External dimensions (mm): 230 x 415 x 390 * Excluding protrusions.
• Number of pieces: 1
• Liquid temperature range: -10 to + 35 degrees C
• Cooling capacity (50/60 Hz): 350 W/370 W/at 20 deg. C, 105 W/145 W/at -10 deg. C * Ambient temperature: 32 deg. C, used solution When operating in ethylene glycol aqueous solution
• Temperature control accuracy: +/- 1.0 C * Ambient temperature: 32 C, set temperature: 20 C, water tank (S -1), reference value when using 12 L of ethylene glycol aqueous solution. It depends on the water tank, amount of liquid, set temperature and type of liquid.
• Display method: PV/SV digital 2-step display (0.1 degrees Celsius)
• Temperature control method: ON/OFF control
• Temperature sensor: Temperature resistor (Pt 100 ohm)
• Type of solution used: fresh water, ethylene glycol aqueous solution
• Refrigerant: R 1234 yf
• Stirring Function: Jet Stirring
• Protective devices: Ground fault breaker, compressor motor protector, high pressure switch, upper temperature anomaly detection
• Maximum operating current: 3.2/2.8 A
• Power supply: 100 VAC 50/60 Hz
• Weight: approximately 17 kg
• *A water tank is not included.

Package size：320×500×455 mm　 [About Package size]
