Masterflex L/S Precision Pump Tubing, BioPharm Platinum-Cured Silicone, Avantor

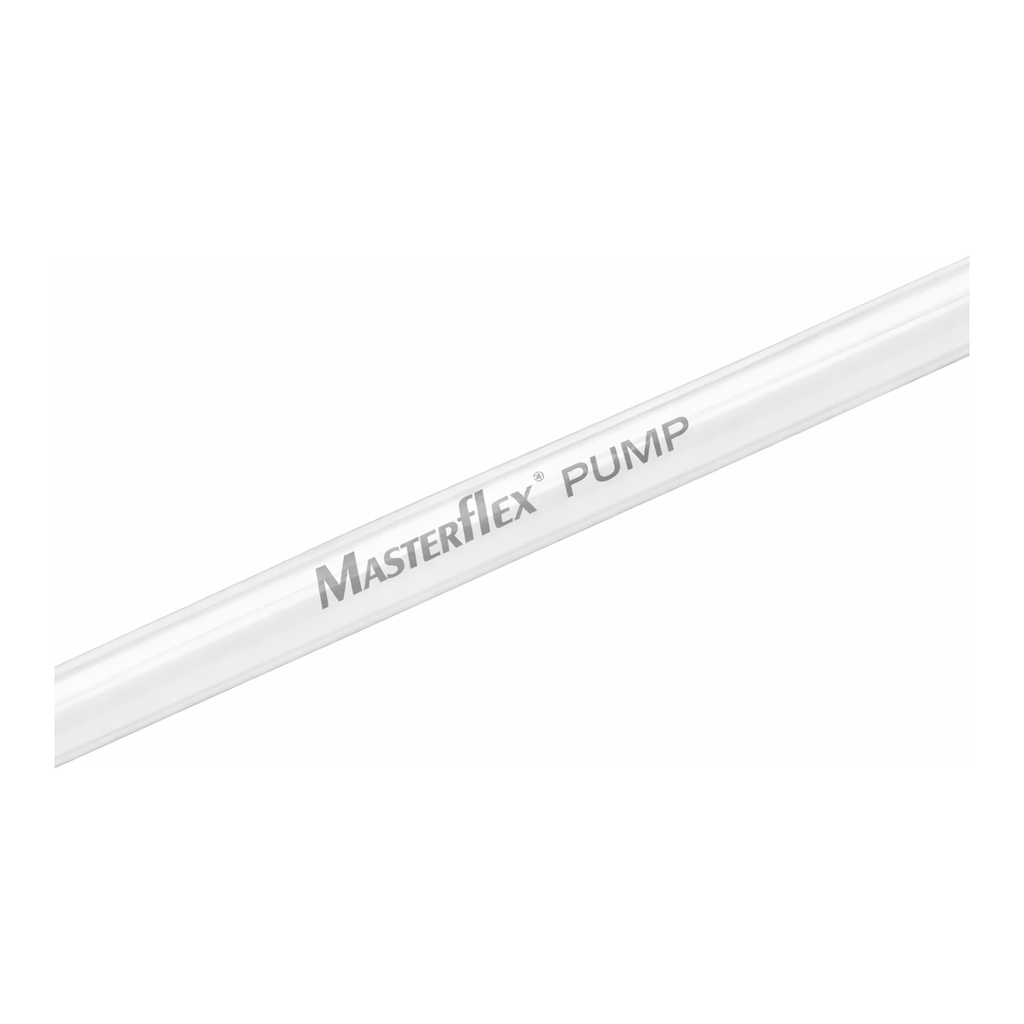

Masterflex L/S® Precision Pump Tubing, BioPharm Platinum-Cured Silicone

Tubing size	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
Inner diameter	0.8 mm (0.03`)	1.6 mm (0.06`)	3.1 mm (0.12`)	4.8 mm (0.19`)	6.4 mm (0.25`)	7.9 mm (0.31`)
Hose barb size	1.6 mm (1⁄16`)	1.6 mm (1⁄16`)	3.2 mm (1⁄8`)	4.8 mm (3 ⁄16`)	6.4 mm (1⁄4`)	9.5 mm (3⁄8`)
Flow range (approximate)	0.06 to 36 mL/min	0.21 to 130 mL/min	0.8 to 480 mL/min	1.7 to 1000 mL/min	2.8 to 1700 mL/min	3.8 to 2300 mL/min
Compatible pump head
✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	CP-96420-13	CP-96420-14	CP-96420-16	CP-96420-25	CP-96420-17	CP-96420-18
7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk

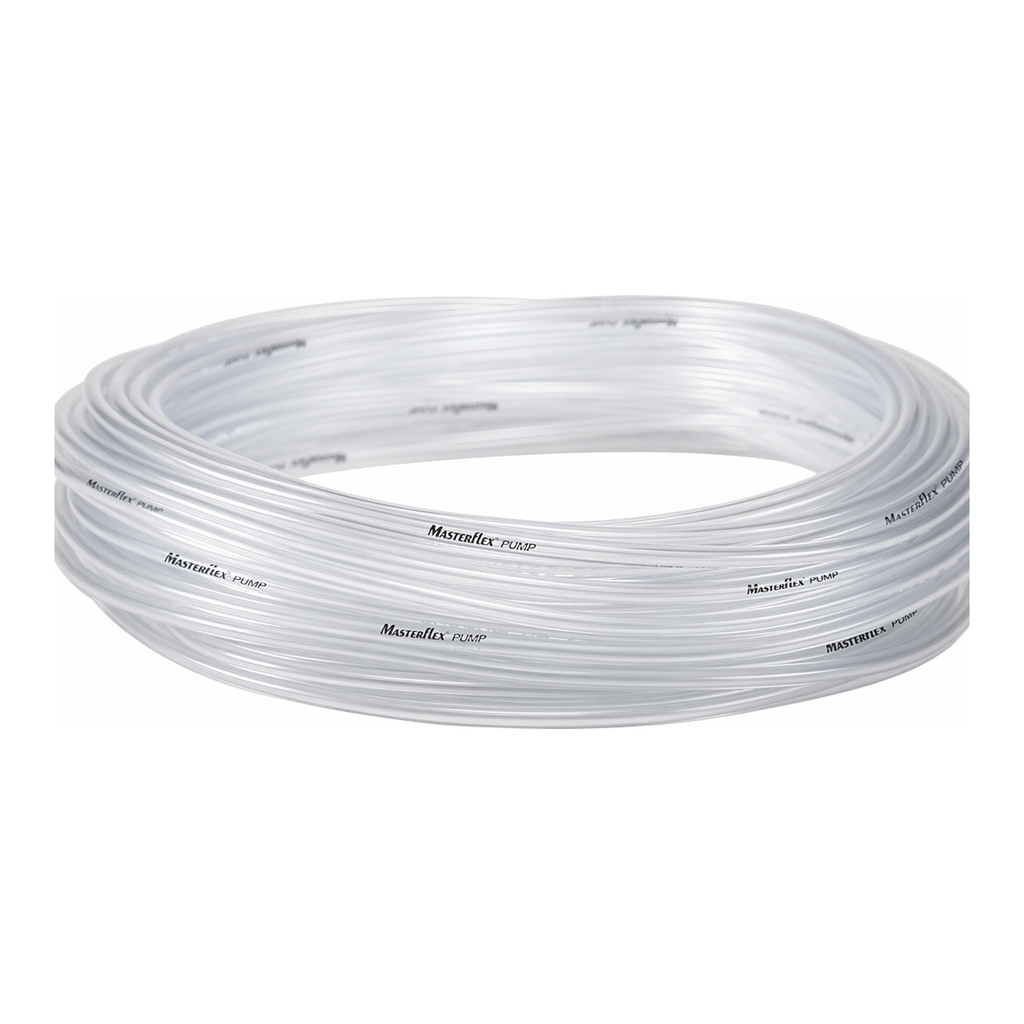

Masterflex L/S® High-Performance Precision Pump Tubing, BioPharm Platinum-Cured Silicone

** Tubing size**	** L/S 15**	** L/S 24**	** L/S 35**	** L/S 36**
** Inner diameter**	** 4.8 mm (0.19`)**	** 6.4 mm (0.25`)**	** 7.9 mm (0.31`)**	** 9.7 mm (0.38`)**
** Hose barb size**	** 4.8 mm (3⁄16`)**	*6.4 mm (1⁄4`) *	*9.5 mm (3⁄8`) *	*9.5 mm (3⁄8`) *
** Flow range (approximate)**	*1.7 to 1000 mL/min(1.8 to 1100 mL/min) *	** 2.8 to 1700 mL/min (3.0 to 1800 mL/min)**	3.8 to 2300 mL/min (4.3 to 2600 mL/min)	4.8 to 2900 mL/min (5.8 to 3400 mL/min)
Compatible pump head
✓ Standard ✓ Easy-Load ✓ Easy-Load II ✓ Easy-Load 3 ✓ High- Performance	CP-96420-15	CP-96420-24	CP-96420-35	CP-96420-36
7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk	7.6 m (25 ft)/pk
