Masterflex L/S Compact Variable-Speed Drive, Avantor
| 상품 옵션 정보 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 카탈로그 번호 | CAS 번호 | 설명 | 상태 | 단위 | 판매가 | 할인가 | 가격(VAT포함) | 수량 / 장바구니 / 찜 |
| MFLX77200-20 | - | MasterFlex MFLX77200-20 DRIVE MFLEX COMPACTV EUROPEAN 230V ea | 재고문의 | ea | 1,438,000원 | - | 1,581,800원 | |
| MFLX77200-12 | - | MasterFlex MFLX77200-12 DRIVE MFLEX L/S COMPACT 12VDC ea | 재고문의 | ea | 0원 | - | 0원 | |
다른 상품 둘러보기

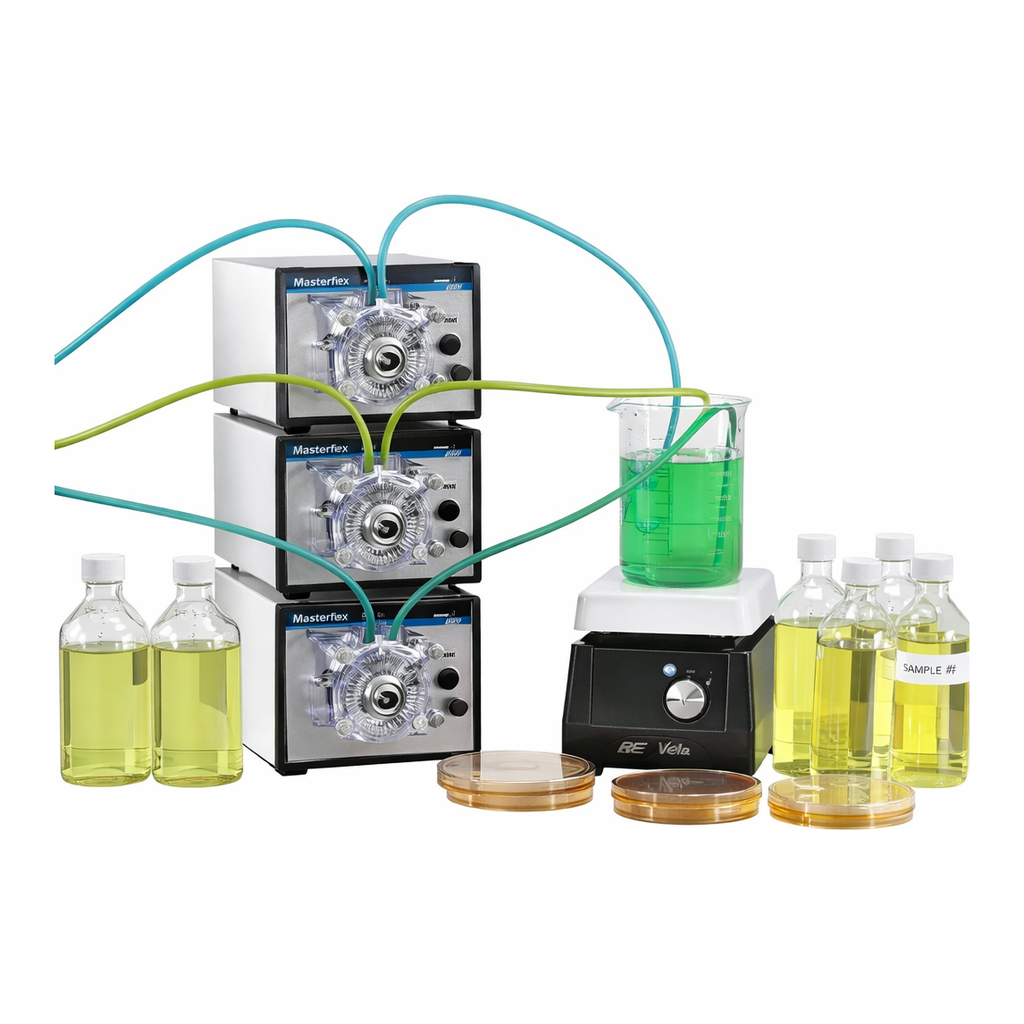

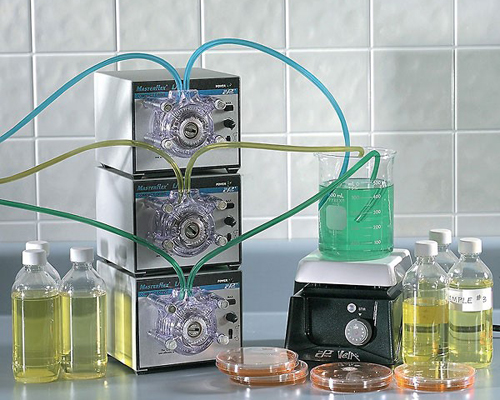

L/S® Compact, Low-Flow, Variable-Speed Drive
Don’t sacrifice space for performance
Description
· Compact size fits just about anywhere
· No difficult programming—single switch for forward/off/reverse and analog controller
· Pump in either direction—also allows purging before or after pumping
· Remote control of start/stop via contact closure
· Rapid flushing or priming using MAX butto
What’s included: model 77200-20 includes dual voltage (115/230 VAC) benchtop power supply with IEC320/CEE22 socket. Pump is shipped with cord/plug assembly specific to country of destination.
*Flow Rates in mL/min *
| rpm | Precision pump tubing | ||||
| L/S 13 | L/S 14 | L/S 16 | L/S 25 | L/S 17 | |
| 35 to 200 | 2.1 to 12 | 7.4 to 42 | 28 to 160 | 60 to 340 | 98 to 560 |
Specifications
| Speed control (repeatability) | Dimensions (L X W X H) | Reversible motor |
| ±5% (2% of max) | 53⁄8x 53⁄16 x 41⁄2`(13.6 x 13.2 x 11.4 cm) |
yes |
| rpm | Pump heads accepted | IP rating | Power (50/60 Hz) | Catalog number |
| 35 to 200 | 1 | IP22 | 12 VDC | GY-77200-12 |
| 90 to 260 VAC, 120 mA | GY-77200-20 |
Accessories
GY-77200-07 Replacement power supply, dual-voltage 115/230 VAC
GY-17050-01 NIST-traceable calibration with data for peristaltic pump drive
