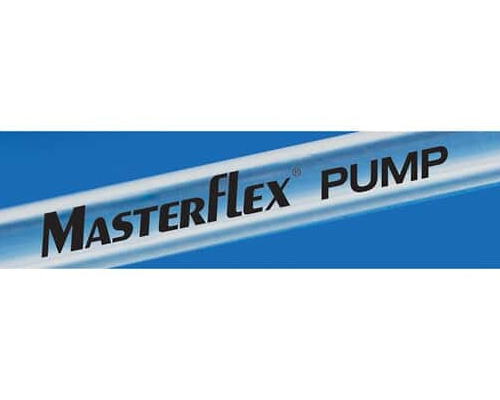

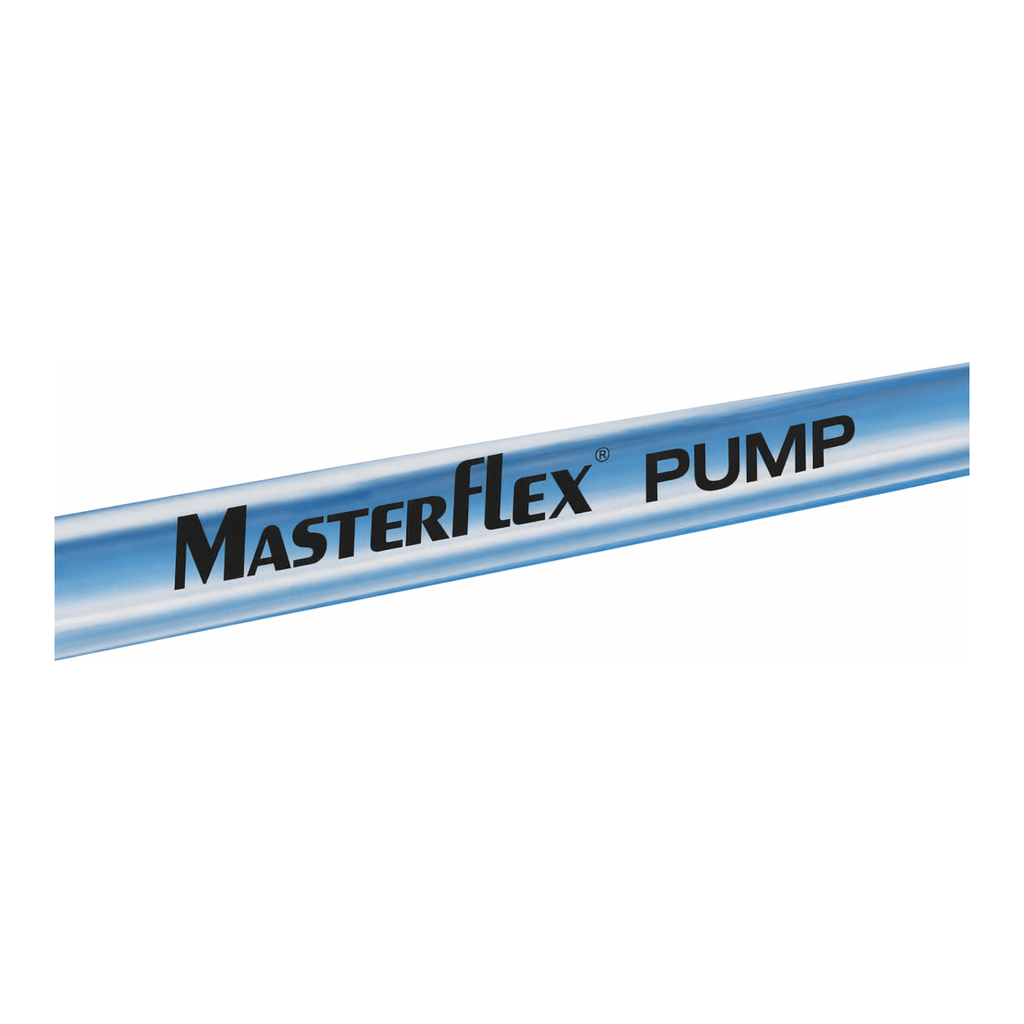

Masterflex L/S High-Performance Precision Pump Tubing, Versilon 2001, Avantor

Masterflex L/S® Precision Pump Tubing, Tygon® Chemical Tubing

Tubing size	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
Inner diameter	0.8 mm (0.03`)	1.6 mm (0.06`)	3.1 mm (0.12`)	4.8 mm (0.19`)	6.4 mm (0.25`)	7.9 mm (0.31`)
Hose barb size	1.6 mm (1⁄16`)	1.6 mm (1⁄16`)	3.2 mm (1⁄8`)	4.8 mm (3 ⁄16`)	6.4 mm (1⁄4`)	9.5 mm (3⁄8`)
Flow range (approximate)	0.06 to 36 mL/min	0.21 to 130 mL/min	0.8 to 480 mL/min	1.7 to 1000 mL/min	2.8 to 1700 mL/min	3.8 to 2300 mL/min
Compatible pump head
✓ Easy-Load ✓ Easy-Load II	CP-06475-13	CP-06475-14	CP-06475-16	CP-06475-25	CP-06475-17	CP-06475-18
15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk

Masterflex L/S® High-Performance Precision Pump Tubing, Tygon® Chemical

Tubing size	L/S 15	L/S 24
Inner diameter	4.8 mm (0.19`)	6.4 mm (0.25`)
Hose barb size	4.8 mm (3⁄16`)	6.4 mm (1⁄4`)
Flow range (approximate)	1.7 to 1000 mL/min (1.8 to 1100 mL/min)	2.8 to 1700 mL/min (3.0 to 1800 mL/min)
Compatible pump head
✓ Easy-Load ✓ Easy-Load II​	CP-06475-15	CP-06475-24
15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
