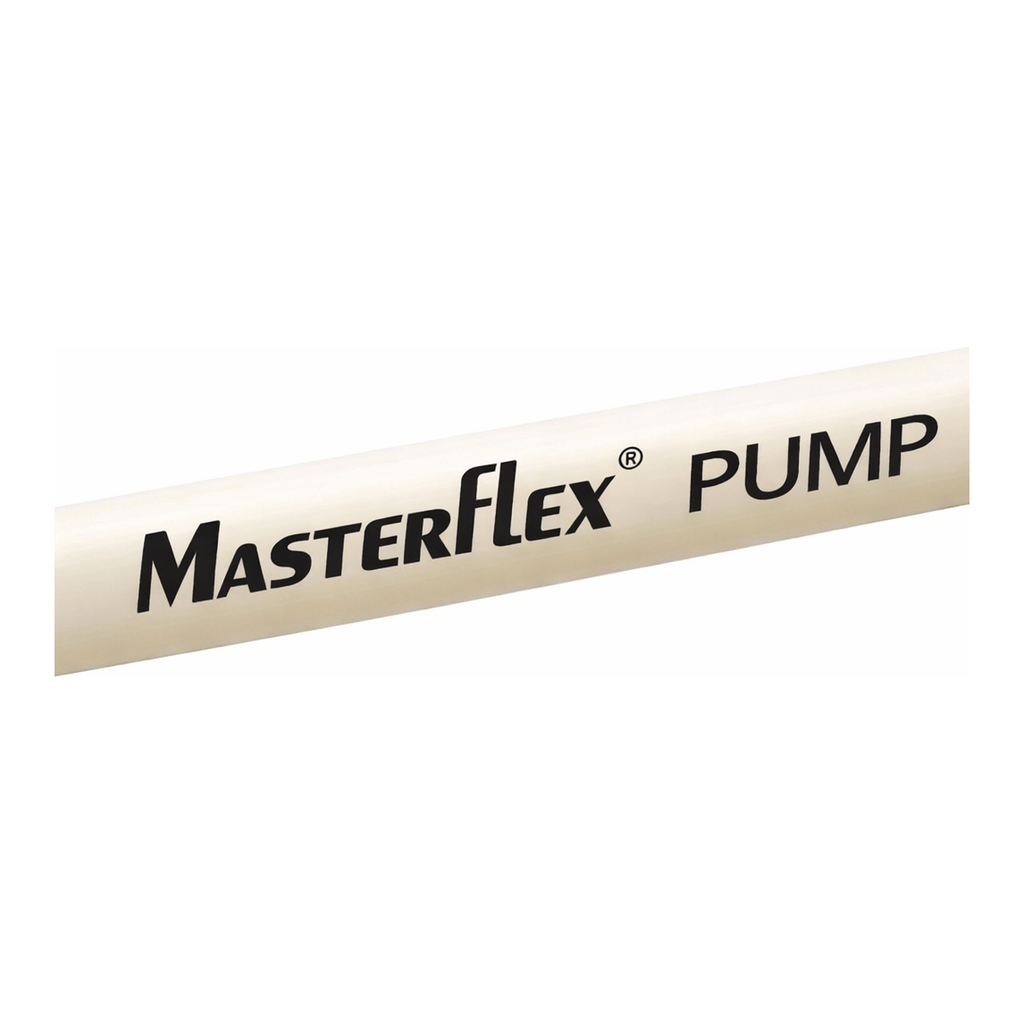

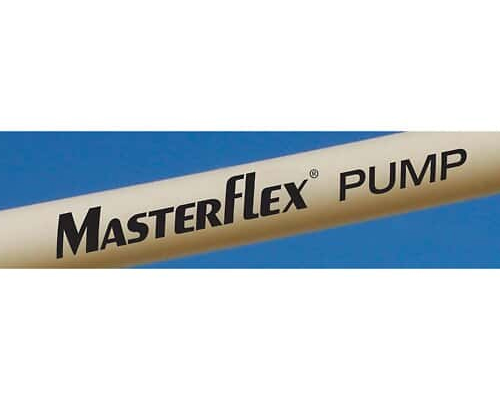

Masterflex L/S High Performance Precision Pump Tubing, Chem-Durance Bio, Avantor

Masterflex L/S® Precision Pump Tubing, Chem-Durance® Bio

Tubing size	L/S 13	L/S 14	L/S 16	L/S 25	L/S 17	L/S 18
Inner diameter	0.8 mm (0.03`)	1.6 mm (0.06`)	3.1 mm (0.12`)	4.8 mm (0.19`)	6.4 mm (0.25`)	7.9 mm (0.31`)
Hose barb size	1.6 mm (1⁄16`)	1.6 mm (1⁄16`)	3.2 mm (1⁄8`)	4.8 mm (3 ⁄16`)	6.4 mm (1⁄4`)	9.5 mm (3⁄8`)
Flow range (approximate)	0.06 to 36 mL/min	0.21 to 130 mL/min	0.8 to 480 mL/min	1.7 to 1000 mL/min	2.8 to 1700 mL/min	3.8 to 2300 mL/min
Compatible pump head
✓ Easy-Load ✓ Easy-Load II​	CP-06442-13	CP-06442-14	CP-06442-16	CP-06442-25	CP-06442-17	CP-06442-18
15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk

Masterflex L/S® High-Performance Precision Pump Tubing, Chem-Durance® Bio

Tubing size	L/S 15	L/S 24	L/S 35	L/S 36
Inner diameter	4.8 mm (0.19`)	6.4 mm (0.25`)	7.9 mm (0.31`)	9.7 mm (0.38`)
Hose barb size	4.8 mm (3⁄16`)	6.4 mm (1⁄4`)	9.5 mm (3⁄8`)	9.5 mm (3⁄8`)
Flow range (approximate)	1.7 to 1000 mL/min (1.8 to 1100 mL/min)	2.8 to 1700 mL/min (3.0 to 1800 mL/min)	3.8 to 2300 mL/min (4.3 to 2600 mL/min)	4.8 to 2900 mL/min (5.8 to 3400 mL/min)
Compatible pump head
✓ Easy-Load ✓ Easy-Load II​	CP-06442-15	CP-06442-24	CP-06442-35	CP-06442-36
15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk	15.2 m (50 ft)/pk
