Thermo Scientific™

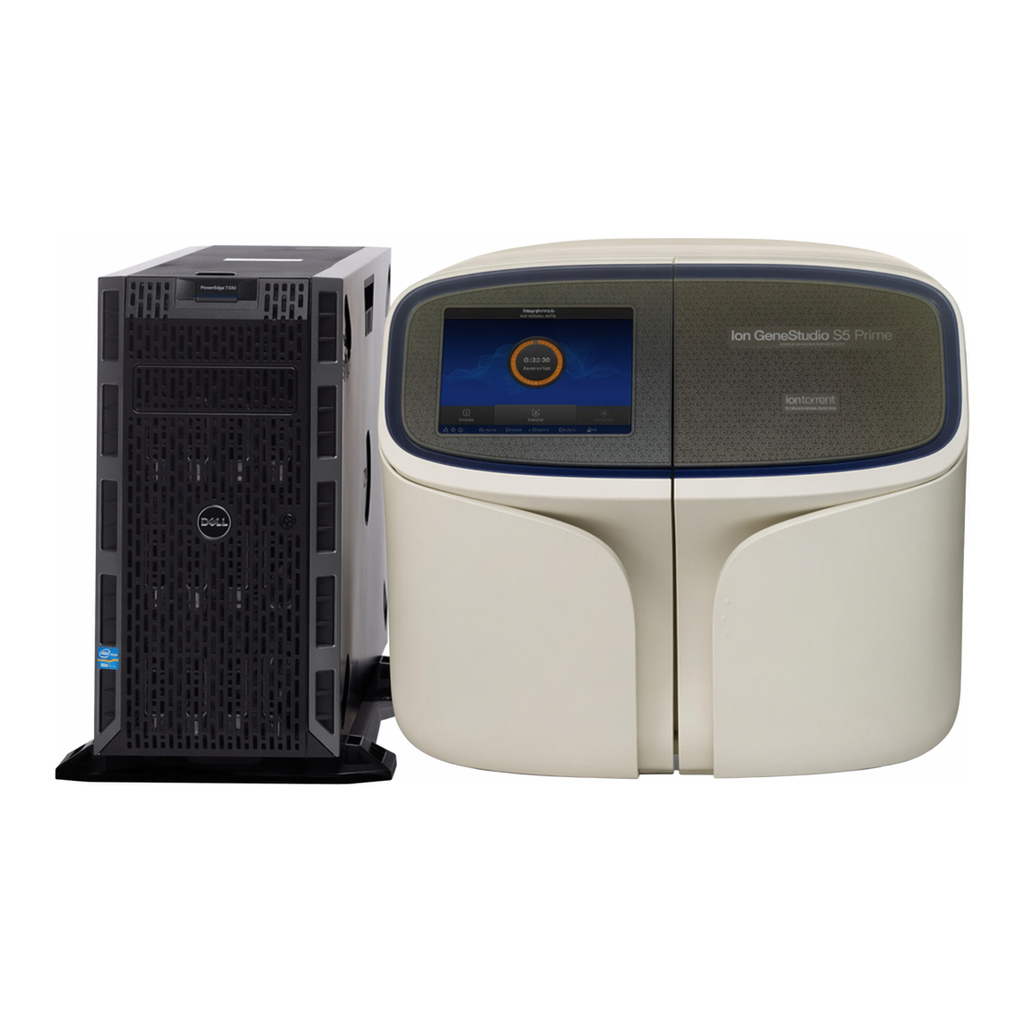

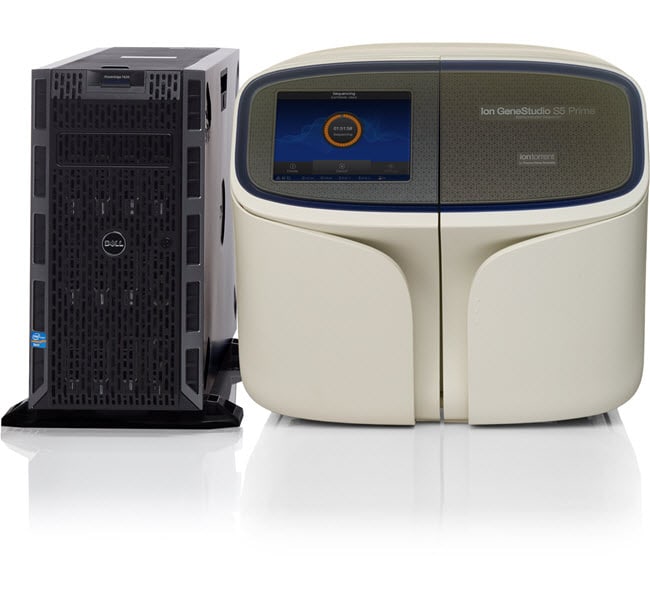

Ion GeneStudio™ S5 Prime Food Protection System

Identify species present in all food types using this next-generation sequencing instrument as part of an NGS Workflow for Food Authenticity testing.

Identify meat, fish or plant species present in all food types using the Ion GeneStudio™ S5 Prime Food Protection System, a semiconductor-based next-generation sequencing (NGS) system which, when used as part of the Thermo Scientific™ Next Generation Sequencing Food Authenticity Workflow, allows identification of the species present in even the most challenging sample types.

The simple-to-use Ion GeneStudio S5 Prime Food Protection System is optimized to provide maximum throughput with minimum time-to-results for laboratories who need to accelerate their sequencing capabilities.

사양

Software TypeSGS All Species ID Software

시작 물질DNA

설명Ion GeneStudio S5 Prime Food protection system

치수(L x W x H) 외부54.2 x 80.6 x 50.9 cm (Server dimensions: 30.5 x 70.9 x 44.4 cm, 41.8 kg)

전기 요구사항100-240 VAC, 50/60 Hz, 6.5-14.5 A

용도(장비)Ion 510 Chip, Ion 520 Chip, Ion 530 Chip, Ion 540 Chip

높이(영국식 단위) 외부20 in.

높이(미터법) 외부50.9 cm

길이(영국식 단위) 외부21.33 in.

길이(미터법) 외부54.2 cm

작동 환경Temperature 15-30 C, Humidity: 10-80%, Altitude: Upto 2,500 m (8,200ft) above sea level, Thermal output at typical power draw of 1,200 W: 4,094 BTU/hr (instrument) and 1100 W: 3,752 BTU/hr

수량1 system

무게63.5 kg

폭(영국식 단위) 외부31.73 in.

폭(미터법) 외부80.6 cm

Unit SizeEach
