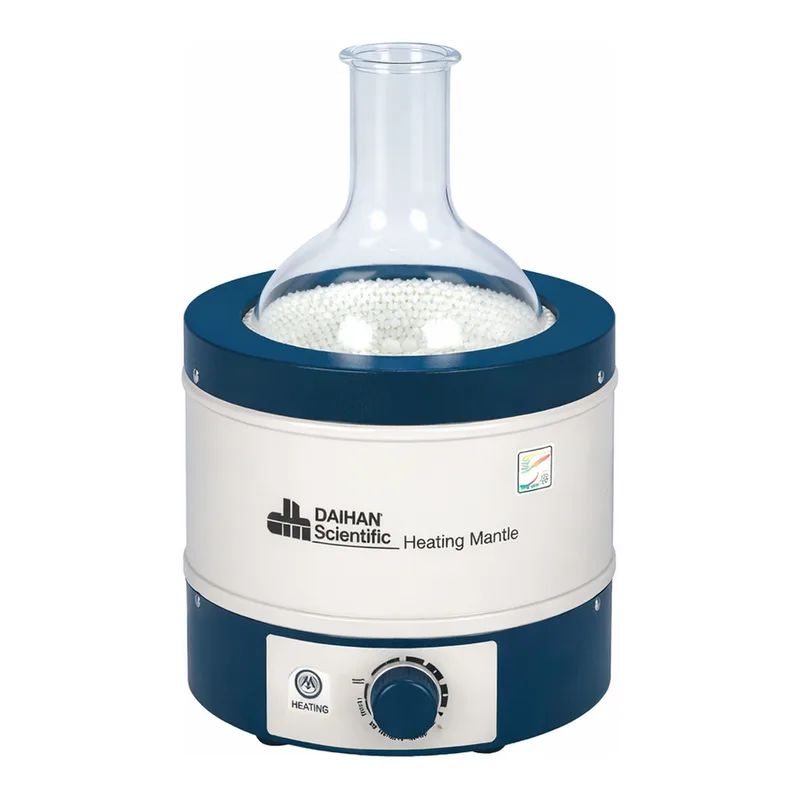

Daihan Science DAIHAN Aluminum-case Flask Heating Mantle, (1) Basic & (2) Stirring-type, 450℃,

DAIHAN® Aluminum-case Flask Heating Mantle

(1) Basic & (2) Stirring-type, 450℃, 50~30,000㎖
With Built-in Temp Controller, with/without Mag-stir Speed Control, with Certificate & Traceability
라운드플라스크용 히팅맨틀, 온도 조절기와 Ni-Cr 열선 내장, 기본형 및 자석교반형

---

주요 특징

• Made in Korea
• Ideal for all types of round flasks
• 50~6,000㎖: 비자성 알루미늄 케이스 / 10ℓ & 20ℓ: 분체도장 케이스
• 인증 및 추적 가능: 일련번호, 인증서, 납품정보, 추적 데이터베이스 시스템
• 내장형 온도조절기, 니켈-크롬 열선 코일, 내산성 및 긴 수명
• 최대 450℃
• 2년 보증

---

(1) Basic-type Flask Mantle

Built-in Temperature Controller
Heating Mantles for 50㎖~6,000㎖ Flask are with a device for holding an optional stainless-steel rod ⌀12.7 mm for article support.

Flasks (㎖, Dia. ⌀ mm)	Watts (W)	Mantle Inside Depth (mm)	Mantle Outside ⌀×h (mm)	Catalog No. (230V)	Catalog No. (120V)
50㎖, ⌀49~52	80	40	⌀150×h140	DH.WHM12010	DH.WHM12020
100㎖, ⌀58~60	80	50	⌀150×h140	DH.WHM12011	DH.WHM12021
250㎖, ⌀83~86	140	65	⌀150×h140	DH.WHM12012	DH.WHM12022
500㎖, ⌀105~108	240	65	⌀200×h165	DH.WHM12013	DH.WHM12023
1,000㎖, ⌀130~133	350	75	⌀200×h165	DH.WHM12014	DH.WHM12024
2,000㎖, ⌀165~169	450	100	⌀270×h200	DH.WHM12015	DH.WHM12025
3,000㎖*, ⌀184~187	550	100	⌀270×h200	DH.WHM8037.1	DH.WHM8037.2
4,000㎖*, ⌀206~228	750	131	⌀325×h226	DH.WHM8037.3	DH.WHM8037.4
6,000㎖*, ⌀234~237	800	131	⌀325×h226	DH.WHM12018	DH.WHM12028
10ℓ, ⌀278~282	1,400	150	⌀390×h240	DH.WHM12070	DH.WHM12071
20ℓ, ⌀344~348	2,000	200	⌀470×h260	DH.WHM12070	DH.WHM12071
NEW 30ℓ, ⌀410~420	3,200	280	⌀515×h330	DH.WHM12072	DH.WHM12072.1

---

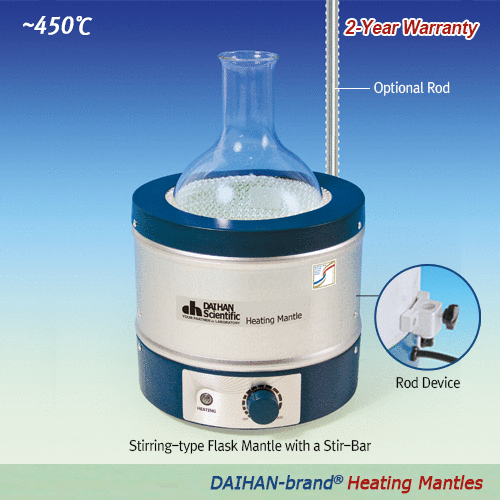

(2) Stirring-type Flask Mantle

Built-in 50~1200rpm Magnetic Stirring Speed & Temperature Controller
*Heating Mantles for 50㎖~6,000㎖ Flask are with a device for holding an optional stainless-steel rod ⌀12.7 mm for article support.*
10~20ℓ models are square-type outside shape.
Includes 1ea PTFE oval-type magnetic stirrer bar (L25mm).

Flasks (㎖, Dia. ⌀ mm)	Watts (W)	Mantle Inside Depth (mm)	Mantle Outside ⌀×h (mm)	Catalog No. (230V)	Catalog No. (120V)
50㎖, ⌀49~52	80	40	⌀150×h140	DH.WHM12030	DH.WHM12040
100㎖, ⌀58~60	80	50	⌀150×h140	DH.WHM12031	DH.WHM12041
250㎖, ⌀83~86	140	65	⌀150×h140	DH.WHM12032	DH.WHM12042
500㎖, ⌀105~108	240	65	⌀200×h165	DH.WHM12033	DH.WHM12043
1,000㎖, ⌀130~133	350	75	⌀200×h165	DH.WHM12034	DH.WHM12044
2,000㎖, ⌀165~169	450	100	⌀270×h200	DH.WHM12035	DH.WHM12045
3,000㎖*, ⌀184~187	550	100	⌀270×h200	DH.WHM12036	DH.WHM12046
4,000㎖*, ⌀206~228	750	131	⌀325×h226	DH.WHM8057	DH.WHM8057.1
6,000㎖*, ⌀234~237	800	131	⌀325×h226	DH.WHM12037	DH.WHM12047
10ℓ, ⌀278~282	1,500	210	⌀400×510×h310	DH.WHM8060	DH.WHM8060.1
20ℓ, ⌀344~348	2,000	230	⌀440×510×h310	DH.WHM8061	DH.WHM8061.1

---

Optional Accessories

Catalog No.	Description
DH.WHP503037	(3) Stand Rod, ⌀12.7×L520mm, “RD300”, for Heating Mantles
DH.WHP503012	(4) Holder / Clamp / Clip, “CL220”, for Temp. Sensor

(3) Stand Rod, “RD300”, ⌀12.7×L520mm
(4) Holder / Clamp / Clip for Temp. Probe

---

Stirring Speed: 50~1200rpm
Maximum Temperature: ~450℃
Warranty: 2 Years

---

제품 이미지
