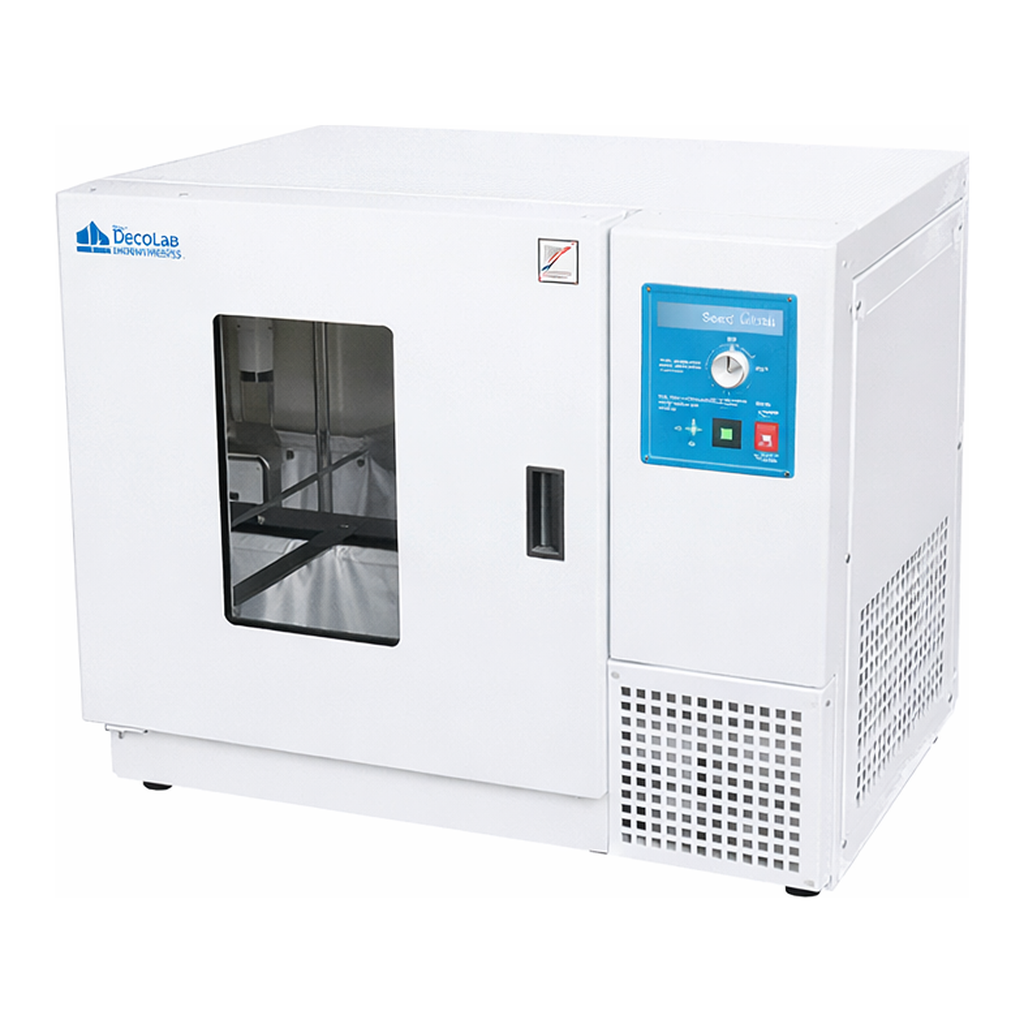

Daihan Science DAIHAN Precise Shaking Incubator “ThermoStable TM IS-30” , Front Door-type, up
상품 한눈에 보기
정밀 퍼지 제어를 갖춘 DAIHAN IS-30 진탕 배양기. 최대 60°C, 30~250rpm의 안정적 진탕 기능 제공. RS232C 인터페이스로 PC 제어 가능. 전면 도어와 백라이트 LCD, Universal Platform 포함. 생물학적 배양에 적합한 고정밀 인큐베이터.
브랜드: Daihan Science
✨AI 추천 연관 상품
AI가 분석한 이 상품과 연관된 추천 상품들을 확인해보세요
연관 상품을 찾고 있습니다...
DAIHAN® Precise Shaking Incubator “IS-30”
Front Door-type, up to 60°C & 1000㎖
With Universal Platform, Fuzzy Control, RS232C Interface for PC, Orbital Motion, 30~250 rpm, 127 Lit
진탕 배양기/인큐베이터, 전면도어 타입, 고정밀 디지털 퍼지제어, Universal Platform 포함
in B. 10°C~60°C / 250rpm

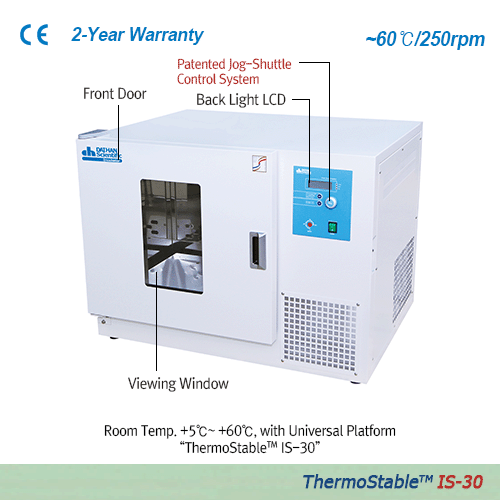

Patented Jog-Shuttle Control System
Front Door
Back Light LCD
With Viewing Window and Universal Platform
“IS-30” RT +5~60°C
“IS-30R” 10~60°C Refrigerated
2-Year Warranty
주요 특징
- Made in Korea
- CE Certified
- PL (Product Liability) Insurance
- With Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery-information, and Traceable Data Base System
- Useful for Biological Cultures within Various Temperature
- Patented Jog-Shuttle Control System
- Stabilized Orbital Motion
- Precise Temperature Control by Digital Fuzzy Controller, up to 60°C, PT100 Sensor
- Front Door and Sliding Platform Provides Easy Loading and Handling of Samples
- RS232C Interface for Monitoring and Controlling with PC
- Advanced Shaking Mechanism Provides Quiet Shaking and Precise Speed Control
- Accommodate Flasks up to 1,000㎖
- Minimum Noise and No Vibration
- Universal Spring Rack for Various Shapes/Sizes of Flasks (Optional)
- Automatic Stop of Shaking, Heating and Refrigeration when Door opens
- Over Temperature & Over Current Protection and Leakage Breaking
Specifications & Ordering Information
| Spec. | Model | A. “IS-30” | B. “IS-30R” with Refrigerator |
|---|---|---|---|
| Temp Range | Room Temp +5°C~60°C | 10~60°C | |
| Temp Accuracy & Uniformity | Accuracy: ±0.2°C at 37°C, Uniformity: ±0.5°C at 37°C | ||
| Capacity | 127 Lit | ||
| Temp Sensor | PT100 Sensor | ||
| Heater | 600 W | 800 W | |
| Compressor | None | 1/4 HP | |
| Compressor Control | None | Intelligent Control of Refrigerator for Preventing Overload of Compressor | |
| Refrigerant | None | CFC-Free (404A) Refrigeration System | |
| Shaking Speed, Stroke & Motion | 30~250 rpm, 25mm, Orbital Motion | ||
| Timer & Alarm | 99hr 59min (with Continuous run), Error status & Timer-end | ||
| Display | Digital LCD with Back-Light Function | ||
| Controller | Digital Fuzzy Controller with Jog-Shuttle Switch (Turn+Push) | ||
| Platform (Included) & Capacity for Optional Flask Holders | Universal Platform for Various Shapes & Sizes of Flasks Capacity: 36ea Flask Holders for 50~100㎖ Flask / 16ea for 200~300㎖ / 12ea for 500~1,000㎖ Flask | ||
| Safety Circuit | Over Temp/Current Protector, Leakage Breaker | ||
| Material | Internal: Stainless-steel (#304), External: Powder Coated Steel | ||
| Dimension | Internal: 570×465×h470mm, External: 916×730×h683mm | ||
| Packing Size (w×d×h)(mm) & Gross Weight | 1,050×900×h900mm / 146 kg | 1,050×900×h900mm / 156 kg | |
| Power Consumption | 600 W | 1.3 kW | |
| Electrical Rects. | 1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz |
| Cat. No. | 60Hz 230V | 120V | 50Hz 230V |
|---|---|---|---|
| DH.WIS00230 | DH.WIS01230 | DH.WIS00530 | |
| DH.WIS01530 |
Price, Each, ₩
Other Specifications (50Hz) are available upon Customer’s Request.
※ 운임 별도
WiseRemote Control Software
Download from DAIHAN-Sci.com
Connection of Temperature Devices with Interface RS232C to a PC
(1) Universal Platform “SP630” (Included)
(2) Universal Spring Rack Platform “SR530” (Optional)
Optional Spring Rack Platform and Stainless-steel Flask Holder (with Spring Ring)
| Cat. No. | Description |
|---|---|
| DH.WIS504630 | (1) Universal Platform, 485×405mm, “SP630”; for “IS-30(R)” |
| DH.WIS504530 | (2) Universal Spring Rack, 498×408×h135mm, “SR530”; for “IS-30(R)” |
| DH.WIS600100 | (3) Stainless-steel Wire Spring Flask Holder, for 100㎖ Flask, “FHS100” |
| DH.WIS600250 | (4) for 250㎖ Flask, “FHS250” |
| DH.WIS600500 | (5) for 500㎖ Flask, “FHS500” |
| DH.WIS6001000 | (6) for 1000㎖ Flask, “FHS1000” |
C. Validation (IQ, OQ) Service Shaking Incubator
| Cat. No. | Description |
|---|---|
| DH.WIS303010 | Validation Service (IQ, OQ), with “IS-30”, 60Hz, “ISV3010” |
| DH.WIS303011 | with “IS-30R”, 60Hz, “ISV3011” |
Ea. Price, ₩
(3) “FHS100”
(4) “FHS250”
(5) “FHS500”
(6) “FHS1000”
SS Flask Holder w/Spring Ring (Optional)
제품 이미지
🏷️Daihan Science 상품 둘러보기
동일 브랜드의 다른 상품들을 확인해보세요
Daihan Science
Daihan Science mediclin Autoclavable Slide Mailer, PP, Square- & Cylindrical-type, for 1~5 Sli
220원
Daihan Science
Daihan Science DAIHAN Digital Precise Viscosity Bath “WVB”, for 5 Viscometers, Max. 30Lit/min,
83,000원
Daihan Science
Daihan Science DAIHAN Precise Shaking Incubator “ThermoStable TM IS-30” , Front Door-type, up
4,790,000원
Daihan Science
Daihan Science DAIHAN Ducted PP Fume Hood for Acid/Chemical Resistance, 1,200·1,500·1,800·2,10
7,562,500원
Daihan Science

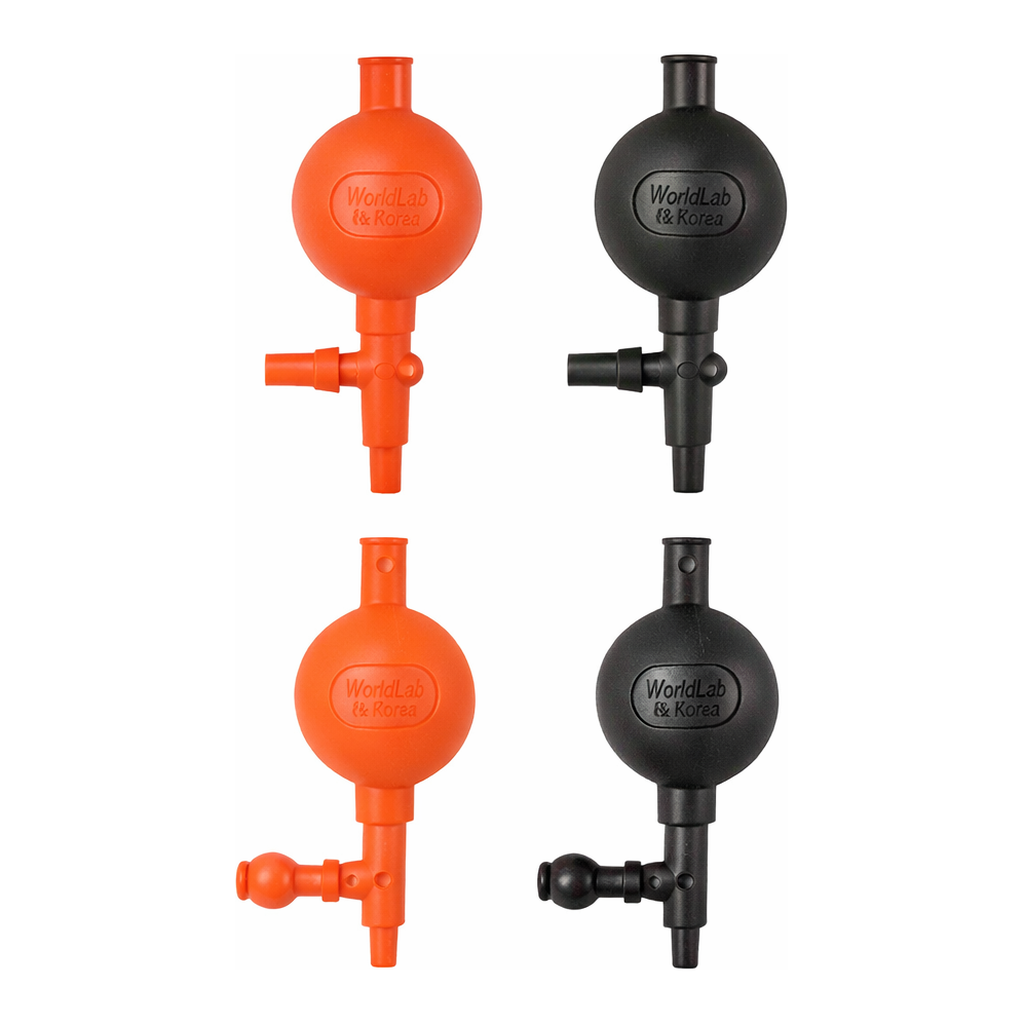

Daihan Science Natural Rubber Safety Pipet Filler, Up to 100㎖ Pipets, 안전 피펫필러
