Accessory for IKA Hotplate Stirrer Hotplate IKA 가열 자력 교반기 가열판 악세사리

● PID Control과 Reset 기능

● Stainless Steel Sensor H62 기본 포함
● PH 값 측정 모쥴 내장형 (ETS-D6 : Electrode는 별도임, BNC Type)
● Protection class acc. to DIN EN 60529 (IP54)
● HS Series, RCT basic, RET basic, RH basic과 연결 가능

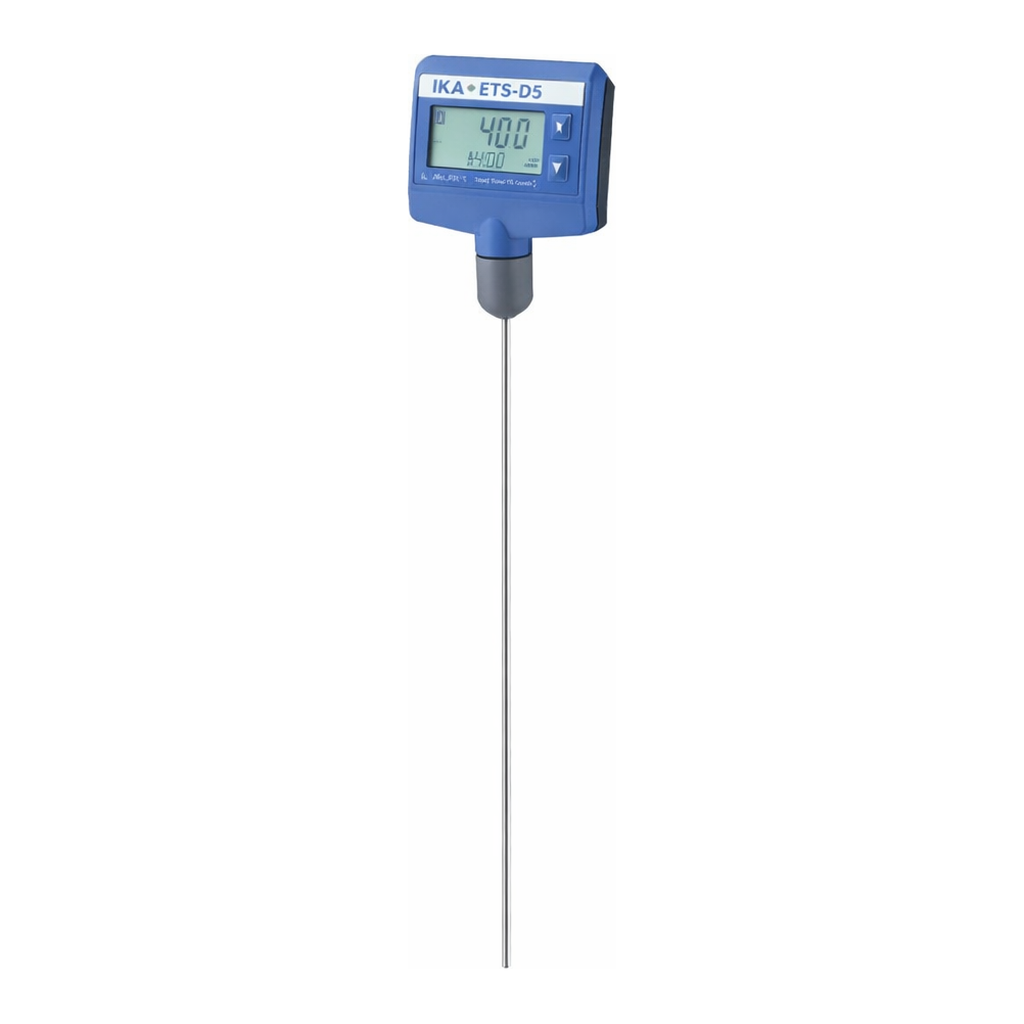

● IKA Temperature Controller

Cat. No	Model	Type	Range	pH
H03-05-506	3378000	ETS-D5	-50 ~ 450℃	-
H03-05-512	3378100	ETS-D6	0 ~ 14

Cat. No.		H03-05-506
---	---	---	---

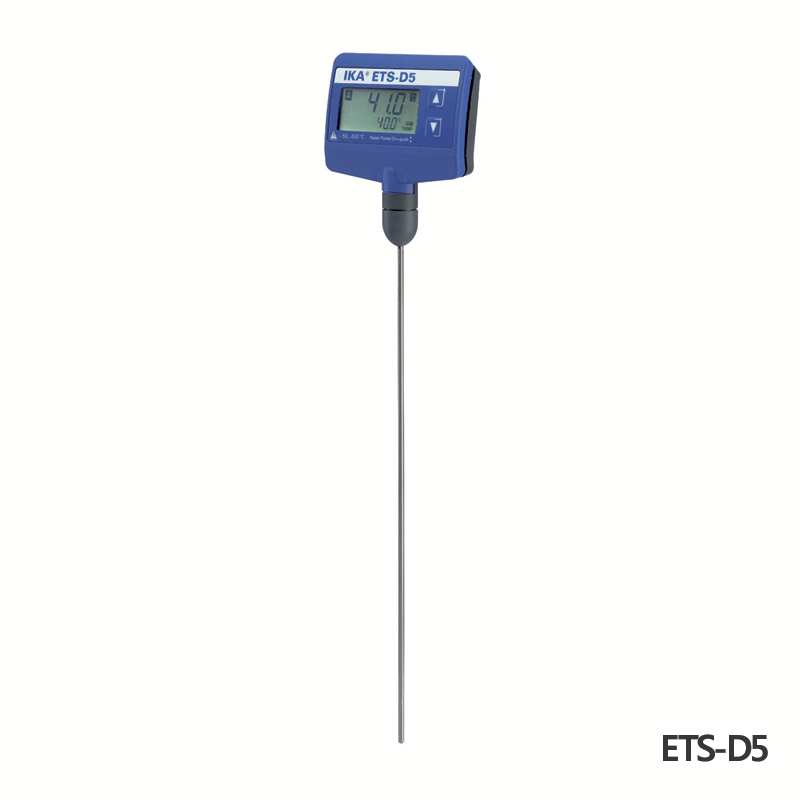

Type		ETS-D5
---	---	---	---
Temperature	Range	-50 ~ 450℃
---	---	---	---
Resolution	0.1 K		0.01 K
---	---	---	---
Accuracy	0.1 K		0.1 K
---	---	---	---
Deviation	±0.5 K		±0.2 K
---	---	---	---
pH	Range	-
---	---	---	---
Resolution	-		±0.01 pH
---	---	---	---
Accuracy	-		±0.1 pH
---	---	---	---
pH Connection	-		BNC Bushing
---	---	---	---
Plug		6 pin DIN 45322
---	---	---	---
Connection		DIN 12878 class 2
---	---	---	---
Supply Voltage		8 ~ 16 VDC
---	---	---	---
Size		w82×d22×h83 mm	w96×d45×h98 mm

Spare Temperature Sensor for ETS-D Series

Cat. No	Model	Type	Description
H03-05-518	2735451	H62.51	Stainless Steel
H03-05-530	2735600	H70	Extension Cable, 1 m

● Size : Φ3×L230 mm

RET Control용 온도 센서

Cat. No	Model	Type	재질	Diameter
H03-05-568	3736000	PT100.70	Glass Coated Stainless	Ø7 mm

● Length : 230 mm

RCT basic & HS Digital용 온도 센서

Cat. No	Model	Type	Description
H03-05-566	3516800	PT1000.60	Stainless Steel

● Size : Φ3×L230 mm

RET control-visc Accessory

Cat. No	Description	Model	내경(mm)	Max. Temp.
H03-05-691	HG 600 히팅자켓	20003416	91	Max. 300℃
H03-05-693	HG 1000 히팅자켓	20003415	106	Max. 300℃

Cat. No	Description	Model	작동시간
H03-05-699	Wireless Remote Control	20007259	15 h

Clamp와 Support for IKA Hotplate Stirrer

Cat. No	Model	Type	Description
H03-05-572	1545100	H16V	Support Rod, Φ10 x L450 mm
H01-05-935	2437700	H44	Boss Head Clamp
H03-05-596	3547700	H38	Holding Rod

Protective Cover

Cat. No	Model	Type	재질	사용 온도
H03-05-604	5001300	H89	Silicon	135℃
H03-05-612	4281600	H102
H03-05-616	4299100	H103

● H89 : RCT Basic 용
● H102 : RH Basic / RH Digital 용

Main Cable

Cat. No	Model	Type	Description
H03-05-644	1091500	H11/Euro	Spare Cable, Euro-Style

PC 연결용 Software 와 Adapter

Cat. No	Model	Type	Description
H03-05-650	4720000	Labworldsoft	Software
H03-05-656	2756000	PC1.5	2.5 m Cable for RET Control-Visc
H03-05-662	8017500	PCI8.2	Plug-in Card for 8 instrument
