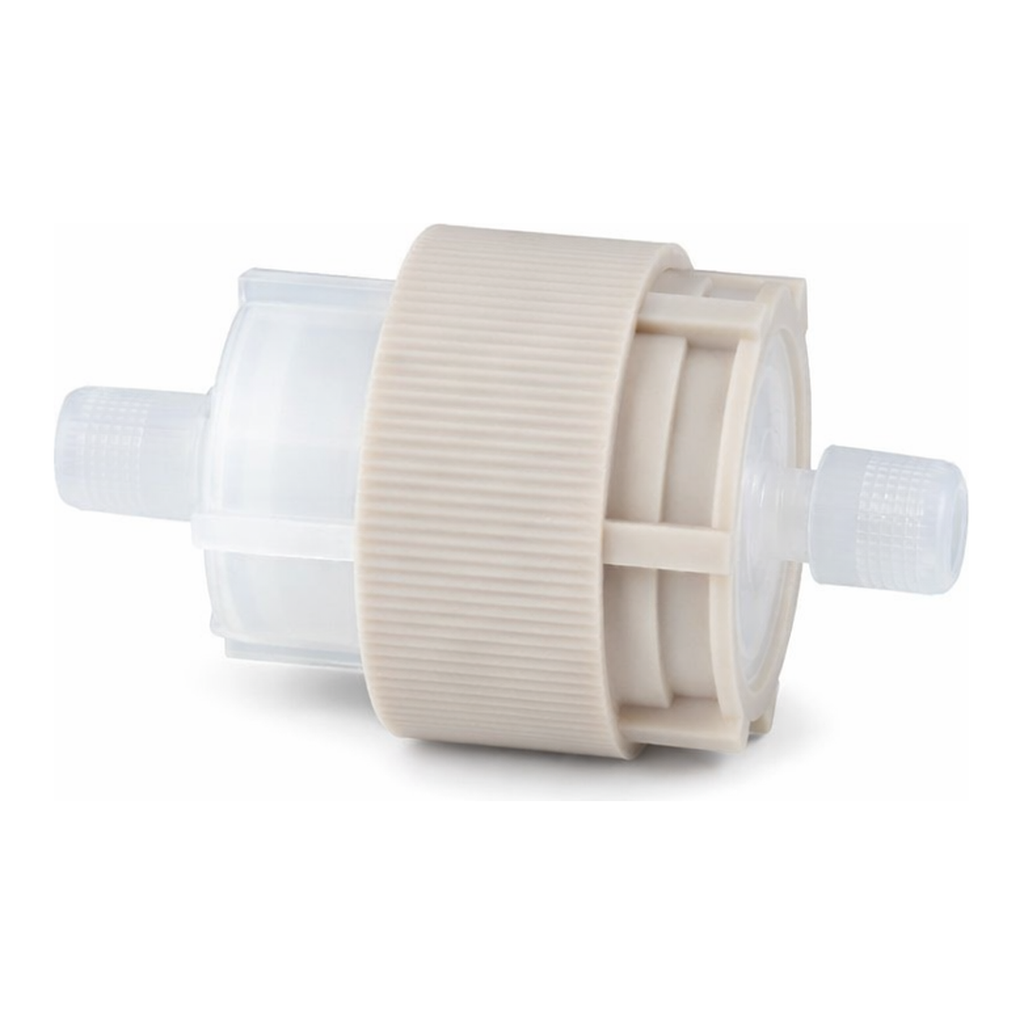

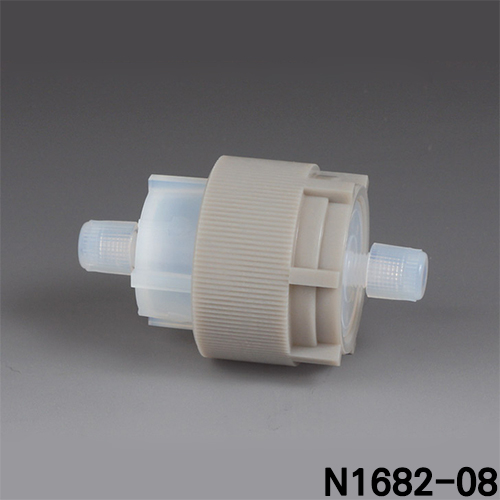

PFA In-line Filter Flow Filter 테프론 인라인 필터

■ 재질 : PFA, -200℃ to 250℃

■ ETFE. Glass-fibre Reinforced 연결 Nut
■ Vacuum OverPressure : up to Max. 150 kPa
■ 사용가능 온도 : Max 160 ℃
■ Tree Stage : 3개의 filtering Mambrane을 같이 사용할 수 있음
■ BOLA

Description

Product information "Three Stage Flow Filter | BOLA"
Product description
Filter and connecting nut made of PFA. Suitable for vacuum and overpressure up to max. 150 kPa (1.500 mbar) and for temperatures up to max. +160°C. Multi-stage filtrations with up to 3 different filtering membranes are possible. Easy exchange of the optionally available filtering membrane. Couplings for connecting tubing with O.D. 6,35 mm (1/4”) are included.
Applications

Flow rate:

Flow capacity under vacuum of 100 kPa (1000 mbar) using a PTFE filtering membrane with a diameter of 47 mm and a thickness of 0,2 mm

Pore size 1,00 µm: Flow of water 90 ml/min

Pore size 0,45 µm: Flow of water 10 ml/min

Pore size 1,00 µm: Flow of air 27000 ml/min

Pore size 0,45 µm: Flow of air 13200 ml/min
