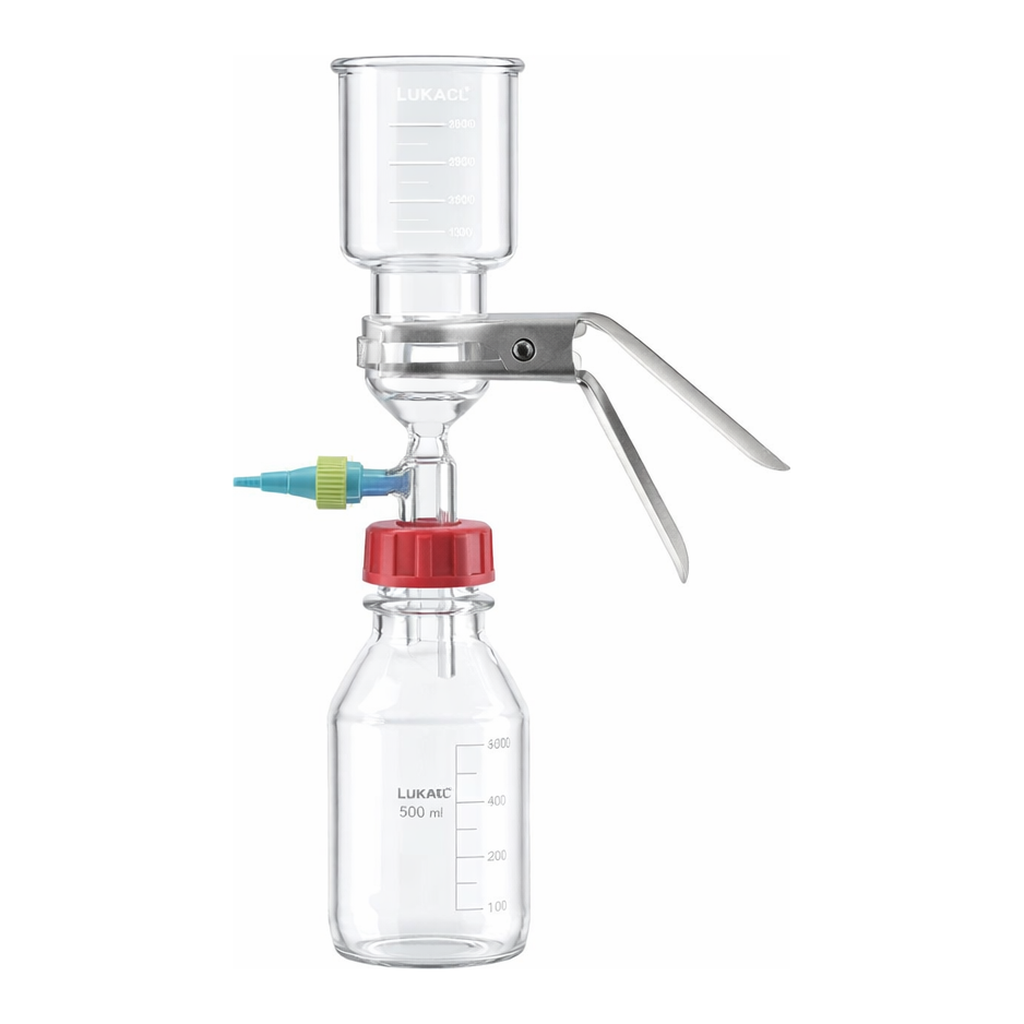

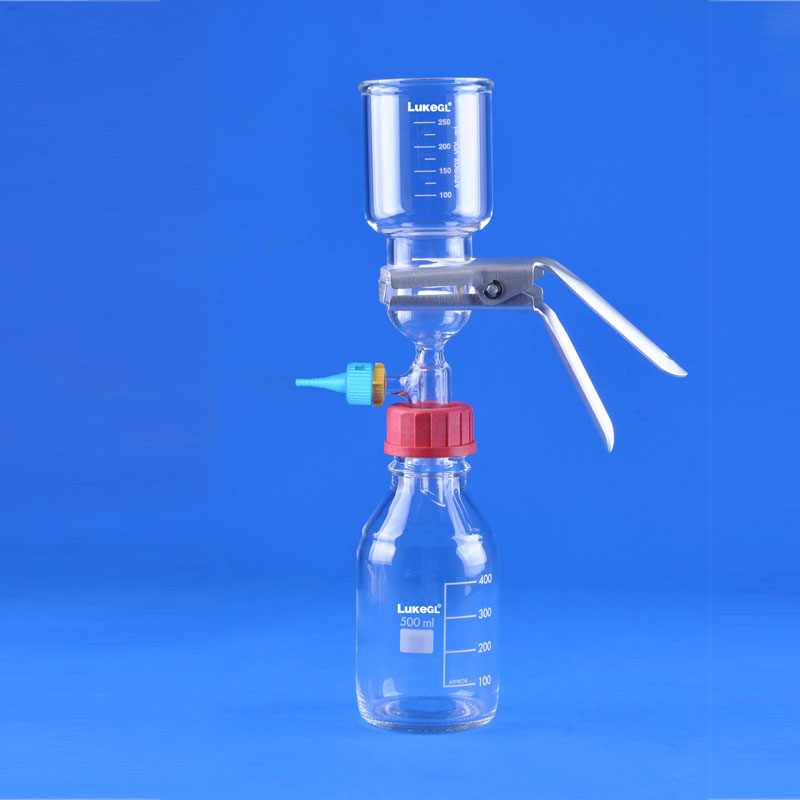

Vacuum Filter Holder With GL45 Screwcap GL45 유리병용 진공 여과장치, LukeGL

■ Borocilicate Glass 3.3

■ Φ47mm Membrane Filter용
■ GL45 Red PBT Screw Cap 부착형
■ 2 Type
- Type 1 : Glass Fritted Support Base Set (40 ~ 60 um)
- Type 2 : Stainless Steel Support Base Set (100 mesh)
■ 300 ml Glass Funnel & 1 L Glass Bottle 기본 포함

| | | |
| --- | --- | --- |Vacuum Filter Holder With GL45 Screwcap / GL45 유리병용 진공 여과장치, LukeGL®
| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-400 | 8000067 | Fritted Glass Support Base | |
| F03-503-450 | 8000068 | Stainless Steel Support Screen | |

구성 Component, 47mm Sintered Glass Base Set

| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-610 | 8358031 | 300 ml Glass Funnel ① | |
| F03-503-620 | 8358036 | Aluminum Clamp, Φ47 mm ② | |
| F03-503-460 | 8358084 | Glass Base for GL Screw Cap ③ | |
| C20-83-209 | KA45 | Quick Disconnect Adapter ⑦ | |
| B08-83-868 | 1321045 | Red PBT Open Top Cap, GL45 ⑧ | |
| J02-83-038 | 1334526 | PTFE/Silicon Gasket with Hole ⑨ | |
| B08-985-139 | 414321940 | Clear Bottle/Laboratory, Simax®/1 L | |

구성 Component, 47mm SUS Support Glass Base Set

| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-610 | 8358031 | 300 ml Glass Funnel ① | |
| F03-503-620 | 8358036 | Aluminum Clamp, Φ47 mm ② | |
| F03-503-470 | 8358085 | GL45 Glass Base for Support Screen ④ | |
| F03-503-640 | 8358038 | SUS 100 Mesh Screen, Φ47 mm ⑤ | |
| F03-503-650 | 8358040 | PTFE Gasket, Φ47 mm ⑥ | |
| C20-83-209 | KA45 | Quick Disconnect Adapter ⑦ | |
| B08-83-868 | 1321045 | Red PBT Open Top Cap, GL45 ⑧ | |
| J02-83-038 | 1334526 | PTFE/Silicon Gasket with Hole ⑨ | |
| B08-985-139 | 414321940 | Clear Bottle/Laboratory, Simax®/1 L | |

Optional Glass Funnel

Vacuum Filter Holder 용도

● Glass Filter Support
- Bacteriological analysis of water (using 47 mm sterile membrane filters) Analysis of suspended solids in water (using 47 mm depth filters)
● PTFE-Faced Funnel and base
- Bacteriological analysis applications where autoclaving filter holder with membrane in place needed
● SUS Filter Support
- Particulate contamination analysis of oils and hydraulic fluids by gravimetric or particulate counting methods
- Exfoliative cytology applications
