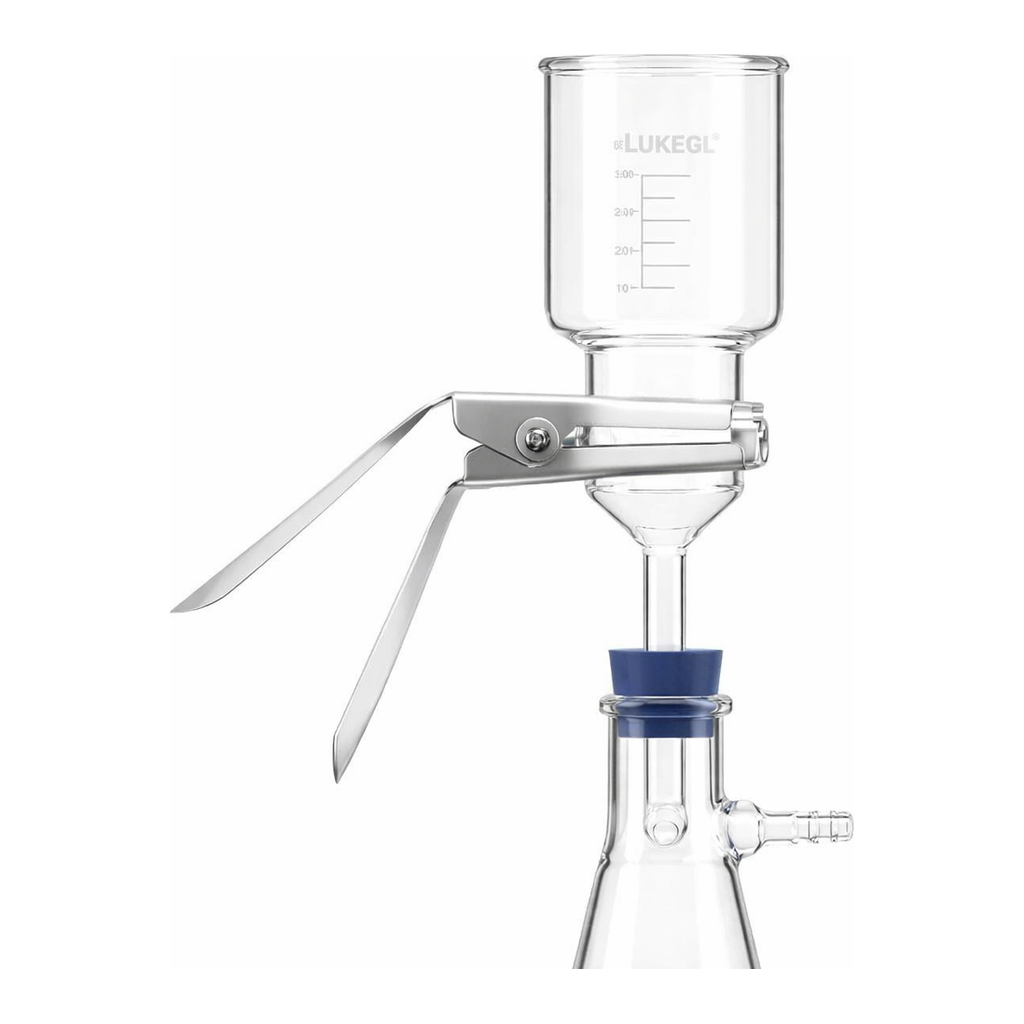

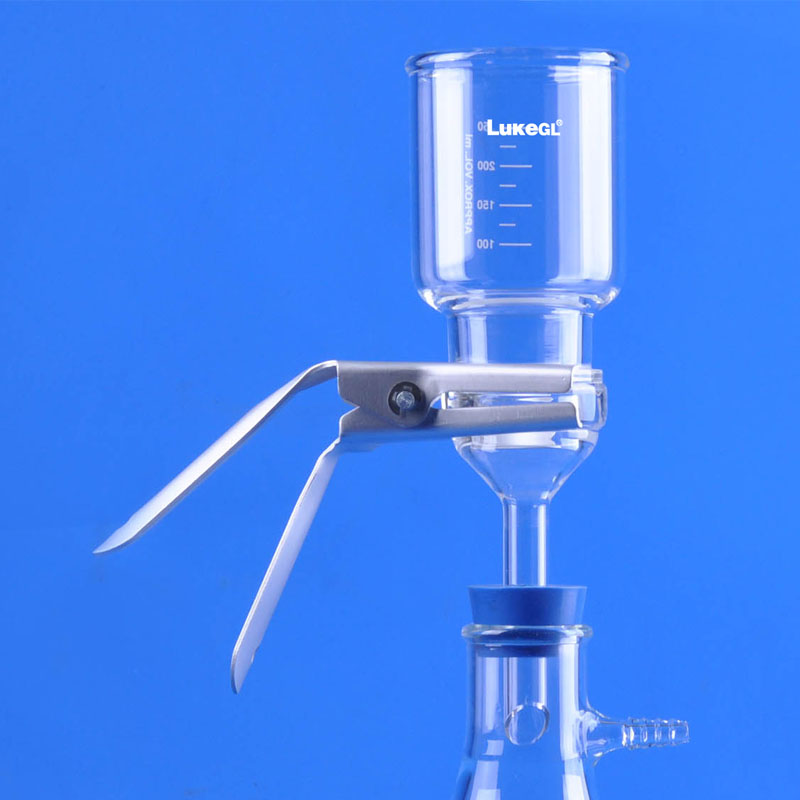

Glass Vacuum Filter Holder, 47 mm 47 mm 진공 여과 장치, LukeGL

■ Borocilicate Glass 3.3

■ Ø47 mm Membrane Filter용
■ 3 Type
- Type 1 : Glass Fritted Support Base Set (40 ~ 60 um)
- Type 2 : PTFE Faced Glass Fritted Support Base Set (40 ~ 60 um)
- Type 3 : Stainless Steel Support Base Set (100 mesh)
■ 300 ml Glass Funnel 기본 포함
■ 여과병은 별도 구매
■ LukeGL®

| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-200 | 8000031 | Φ47 mm Sintered Glass Base Set | |
| F03-503-225 | 8000035 | Φ47 mm PTFE Faced Glass Base Set | |
| F03-503-250 | 8000038 | Φ47 mm SUS Support Base Set | |

구성 Component, 47mm Sintered Glass Base Set

| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-610 | 8358031 | 300 ml Glass Funnel ① | |
| F03-503-620 | 8358036 | Aluminum Clamp, Φ47 mm ③ | |
| F03-503-630 | 8358037 | Sintered Glass Base Φ47 mm ④ | |
| F03-503-670 | 8358042 | Silicon Stopper, (상 Φ40 / 하 Φ33 mm) / 1L Flask용 ⑦ | |

구성 Component, 47mm PTFE Faced Glass Base Set

| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-613 | 8358032 | 300 ml Glass Funnel, PTFE Faced ② | |
| F03-503-620 | 8358036 | Aluminum Clamp, Φ47 mm ③ | |
| F03-503-633 | 8358044 | Sintered Glass Base, PTFE Faced ⑤ | |
| F03-503-670 | 8358042 | Silicon Stopper, (상 Φ40 / 하 Φ33 mm) / 1L Flask용 ⑦ | |

● 테프론이 Funnel하부와 Glass Base상부에 코팅되어져 있음
● 8358042는 1L Flask용

구성 Component, 47mm SUS Support Base Set

| Cat. No | Model | Description | |
| --- | --- | --- |
| F03-503-610 | 8358031 | 300 ml Glass Funnel ① | |
| F03-503-620 | 8358036 | Aluminum Clamp, Φ47 mm ③ | |
| F03-503-640 | 8358038 | SUS 100 Mesh Screen, Φ47 mm ⑧ | |
| F03-503-650 | 8358040 | PTFE Gasket, Φ47 mm ⑨ | |
| F03-503-660 | 8358039 | SUS Support 용 Glass Base Φ47 mm ⑥ | |
| F03-503-670 | 8358042 | Silicon Stopper, (상 Φ40 / 하 Φ33 mm) / 1L Flask용 ⑦ | |

● 8358042는 1L Flask용

Optional Glass Funnel for 47mm

Cat. No	Model	용량	Size
F03-503-680	8358033	500 ml	Φ80×h180 mm
F03-503-690	8358034	1 L	Φ115×h180 mm

Filtering Flask, LukeGL® ⑩

Cat. No	Model	용량	Size	Neck id
F03-503-957	8072255	500 ml	Φ102×h185 mm	Φ31 mm
F03-503-965	8072310	1 L	Φ125×h235 mm	Φ35 mm
F03-503-970	8072320	2 L	Φ148×h275 mm	Φ38 mm

● Borocilicate Glass 3.3
● 8072320은 1420-05를 Stopper로 사용

Filtering Flask, Simax® ⑪

Cat. No	Model	용량	Size	Neck id
F04-985-096	412022250	250 ml	Φ85×h145 mm	Φ35 mm
F04-985-101	412022500	500 ml	Φ105×h175 mm
F04-985-105	412022940	1 L	Φ135×h230 mm	Φ45 mm
F04-985-109	412022950	2 L	Φ165×h255 mm	Φ60 mm

Silicon Stopper with Hole, 15mm ⑫

| Cat. No | Model | Hole | 용도 | |
| --- | --- | --- | --- |
| F03-132-571 | 1420-05 | Φ15 mm | 1 L, Neck id 45 mm용 | |
| F03-132-573 | 1420-06 | 2 L, Neck id 60 mm용 | |

● Simax® Filtering Flask용
